Support Software Capabilities

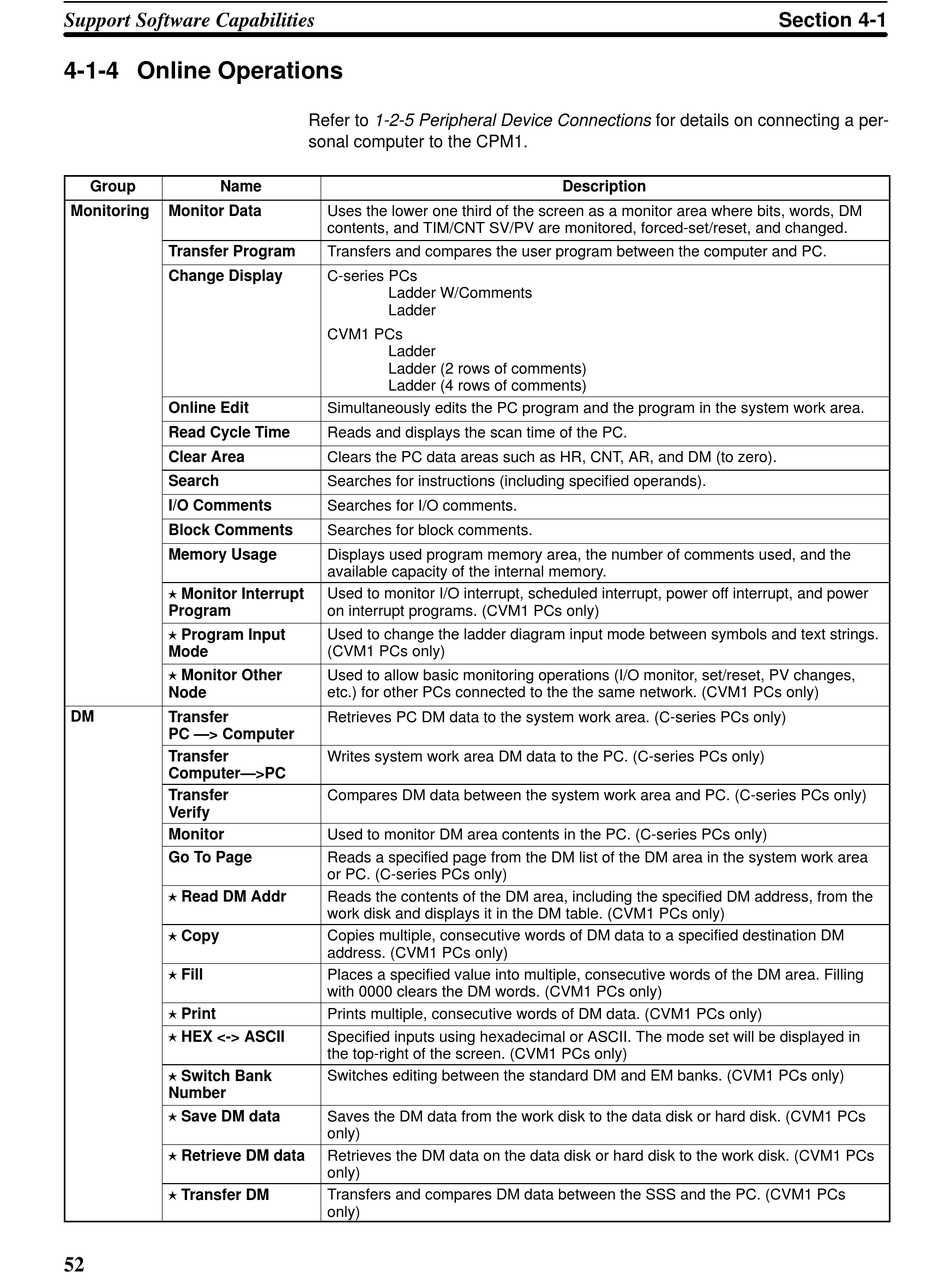

4-1-4 Online Operations

Group Name
Monitoring Monitor Data
Transfer Program
Change Display
Online Edit
Read Cycle Time
Clear Area
Search
I/O Comments
Block Comments
Memory Usage
K Monitor Interrupt
Program
K Program Input
Mode
K Monitor Other
Node
DM Transfer
PC —> Computer
Transfer
Computer—>PC
Transfer
Verify
Monitor
Go To Page
K Read DM Addr
K Copy
K Fill
K Print
K HEX <-> ASCII
K Switch Bank
Number
K Save DM data
K Retrieve DM data
K Transfer DM
52
Refer to 1-2-5 Peripheral Device Connections for details on connecting a per-
sonal computer to the CPM1.
Uses the lower one third of the screen as a monitor area where bits, words, DM
contents, and TIM/CNT SV/PV are monitored, forced-set/reset, and changed.
Transfers and compares the user program between the computer and PC.
C-series PCs
Ladder W/Comments
Ladder
CVM1 PCs
Ladder
Ladder (2 rows of comments)
Ladder (4 rows of comments)
Simultaneously edits the PC program and the program in the system work area.
Reads and displays the scan time of the PC.
Clears the PC data areas such as HR, CNT, AR, and DM (to zero).
Searches for instructions (including specified operands).
Searches for I/O comments.
Searches for block comments.
Displays used program memory area, the number of comments used, and the
available capacity of the internal memory.
Used to monitor I/O interrupt, scheduled interrupt, power off interrupt, and power
on interrupt programs. (CVM1 PCs only)
Used to change the ladder diagram input mode between symbols and text strings.
(CVM1 PCs only)
Used to allow basic monitoring operations (I/O monitor, set/reset, PV changes,
etc.) for other PCs connected to the the same network. (CVM1 PCs only)
Retrieves PC DM data to the system work area. (C-series PCs only)
Writes system work area DM data to the PC. (C-series PCs only)
Compares DM data between the system work area and PC. (C-series PCs only)
Used to monitor DM area contents in the PC. (C-series PCs only)
Reads a specified page from the DM list of the DM area in the system work area
or PC. (C-series PCs only)
Reads the contents of the DM area, including the specified DM address, from the
work disk and displays it in the DM table. (CVM1 PCs only)
Copies multiple, consecutive words of DM data to a specified destination DM
address. (CVM1 PCs only)
Places a specified value into multiple, consecutive words of the DM area. Filling
with 0000 clears the DM words. (CVM1 PCs only)
Prints multiple, consecutive words of DM data. (CVM1 PCs only)
Specified inputs using hexadecimal or ASCII. The mode set will be displayed in
the top-right of the screen. (CVM1 PCs only)
Switches editing between the standard DM and EM banks. (CVM1 PCs only)
Saves the DM data from the work disk to the data disk or hard disk. (CVM1 PCs
only)
Retrieves the DM data on the data disk or hard disk to the work disk. (CVM1 PCs
only)
Transfers and compares DM data between the SSS and the PC. (CVM1 PCs
only)
Description
Section 4-1
