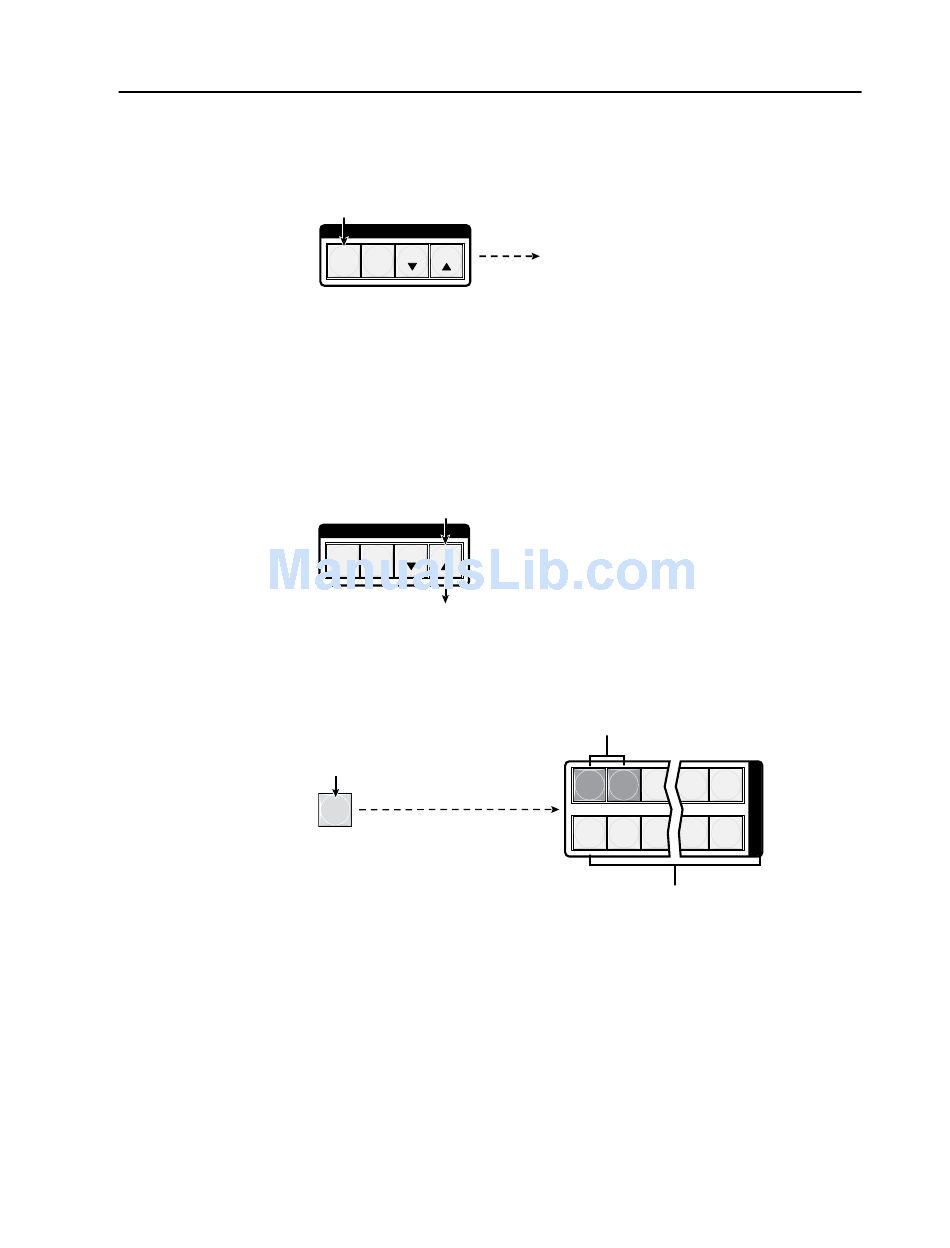

4. Press and release the Enter button (figure 3-46). The current configuration is
now stored in the selected memory location.
Press the Enter button to
save the preset.
C O N T R O L
VIEW
ENTER PRESET
The Enter and Preset
buttons return to unlit or
background illumination.
Figure 3-46 — Press the Enter button

Example 8: Recalling a preset

In the following example, a preset is recalled to become the current configuration.
The steps show the front panel indications that result from your action.
Press and release the Esc button (figure 3-47).
1.
Press the Esc button to clear all selections.
C O N T R O L
VIEW
ENTER PRESET
The button flashes once.
Figure 3-47 — Clear all selections
2. Press and release the Preset button (figure 3-48).
Press and release the
Preset button.
The Preset button lights.
PRESET
All input buttons with
assigned presets light red.
Figure 3-48 — Enter Recall Preset mode
All input buttons return to unlit
ESC
or background illumination.
ESC
Red
(Preset Assigned)
1
17 18 19 31 32
CrossPoint / MAV Matrix Switchers • Operation
2 3 15 16 I
N
P
U
T
S
Unlit
(No Preset Assigned)
3-33
