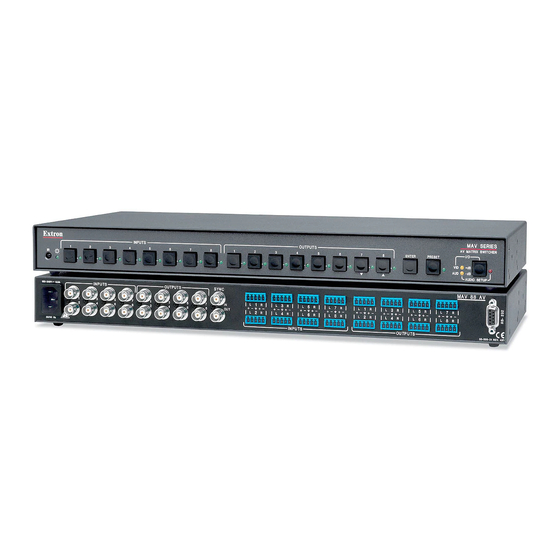

Extron electronics MAV 44 Series Specifications

Specifications — MAV Series Matrix Switchers
Video — composite video and S-video models
Routing
MAV 44 Series .................. 4 x 4 matrix
MAV 48 Series .................. 4 x 8 matrix
MAV 62 Series .................. 6 x 2 matrix
MAV 84 Series .................. 8 x 4 matrix
MAV 88 Series .................. 8 x 8 matrix
Gain ............................................... Unity
Bandwidth .................................... 150 MHz (-3 dB), fully loaded
Differential phase error .............. <0.1º at 3.58 MHz and 4.43 MHz
Differential gain error ................. <0.1% at 3.58 MHz and 4.43 MHz
Crosstalk ....................................... <-50 dB @ 5 MHz
Switching speed ........................... 20 ms (max.)
Video input — composite video and S-video models
Number/signal type
MAV 44 AV, MAV 44 AV RCA, MAV 48 AV, MAV 48 AV RCA
MAV 44 SVA, MAV 44 SVA RCA, MAV 48 SVA, MAV 48 SVA RCA
MAV 62 Composite Video 6 composite video
MAV 62 S-video ............... 6 S-video
MAV 84 AV, MAV 84 AV RCA, MAV 88 AV, MAV 88 AV RCA, MAV 88 V
MAV 84 SVA, MAV 84 SVA RCA, MAV 88 SVA, MAV 88 SVA RCA
Connectors
MAV 44/48 composite video models
MAV 44/48 S-video models
MAV 62 Composite Video 6 BNC female
MAV 62 S-video ............... 6 female 4-pin mini DIN
MAV 84/88 composite video models
MAV 84/88 S-video models
Nominal level ............................... 1 Vp-p for Y of S-video, and for composite video
Minimum/maximum levels ...... Analog: 0.4 V to 2.0 Vp-p with no offset at unity gain
Impedance .................................... 75 ohms
Return loss
MAV 62 Series ................... <-30 dB @ 5 MHz
All other models .............. Composite video: <-38 dB @ 0 to 10 MHz
DC offset (max. allowable)
MAV 62 Series ................... 1.5 V
All other models .............. 5 V
External sync (genlock) ............... 0.2 V to 0.4 Vp-p
Input coupling .............................. AC coupling only (for models other than the MAV 62 Series)
1-2
MAV 44, MAV 48, MAV 62, MAV 84, and MAV 88 Series Matrix Switchers • Specifications
4 composite video
4 S-video
8 composite video
8 S-video
4 female BNC
4 female 4-pin mini DIN
8 female BNC
8 female 4-pin mini DIN
0.3 Vp-p for C of S-video
S-video: <-25 dB @ 0 to 10 MHz
