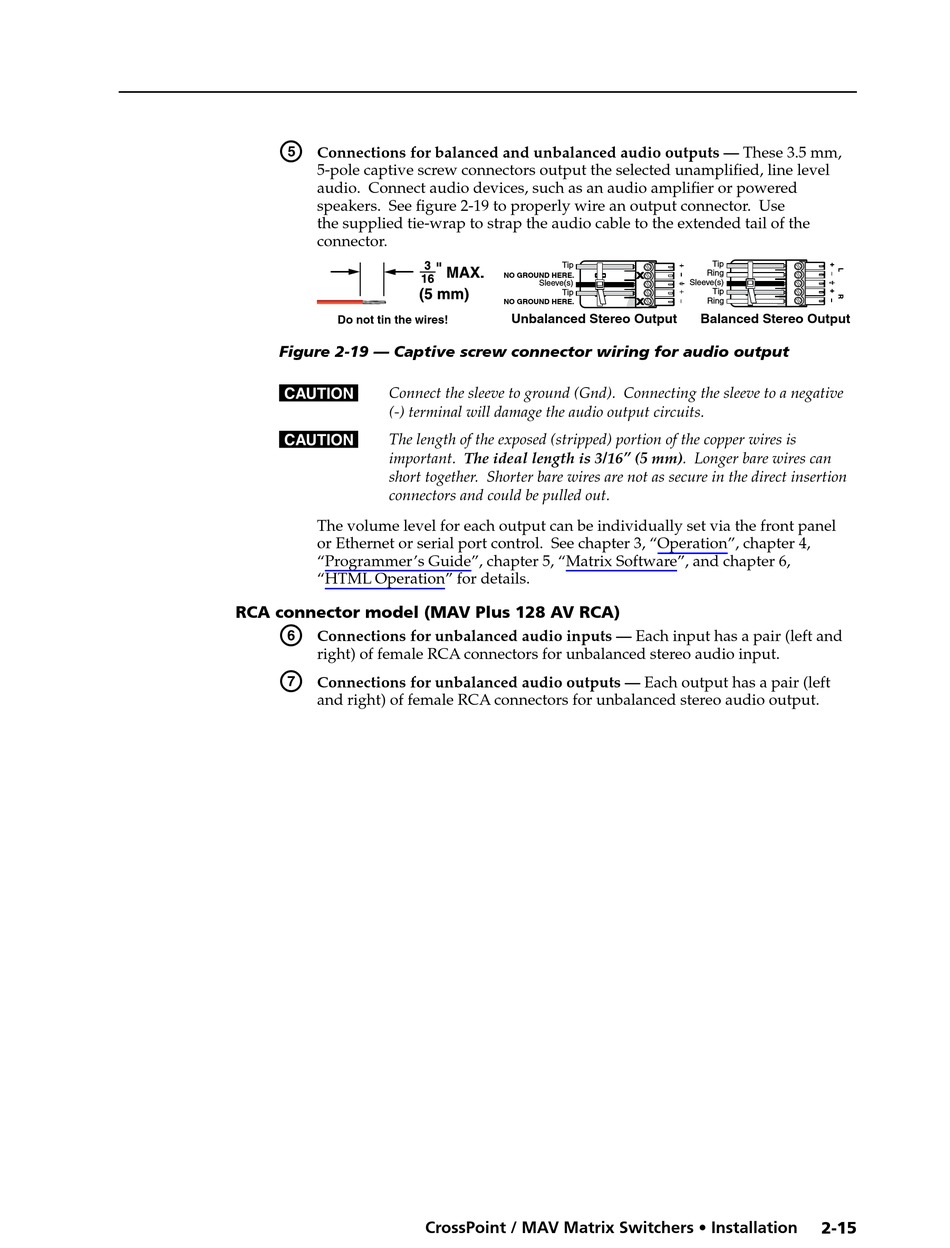

Connections for balanced and unbalanced audio outputs — These 3.5 mm,
5-pole captive screw connectors output the selected unamplified, line level
audio. Connect audio devices, such as an audio amplifier or powered
speakers. See figure 2-19 to properly wire an output connector. Use
the supplied tie-wrap to strap the audio cable to the extended tail of the
connector.
Do not tin the wires!
Figure 2-19 — Captive screw connector wiring for audio output
C Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative
(-) terminal will damage the audio output circuits.
The length of the exposed (stripped) portion of the copper wires is
C
important. The ideal length is 3/16" (5 mm). Longer bare wires can
short together. Shorter bare wires are not as secure in the direct insertion
connectors and could be pulled out.
The volume level for each output can be individually set via the front panel
or Ethernet or serial port control. See chapter 3, "Operation", chapter 4,
"Programmer's Guide", chapter 5, "Matrix Software", and chapter 6,
"HTML Operation" for details.

RCA connector model (MAV Plus 128 AV RCA)

f
Connections for unbalanced audio inputs — Each input has a pair (left and
right) of female RCA connectors for unbalanced stereo audio input.
g
Connections for unbalanced audio outputs — Each output has a pair (left
and right) of female RCA connectors for unbalanced stereo audio output.
Tip
NO GROUND HERE.
Sleeve(s)
Tip
NO GROUND HERE.
Unbalanced Stereo Output
CrossPoint / MAV Matrix Switchers • Installation
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Stereo Output
2-15
