Serial-port-connected firmware upload

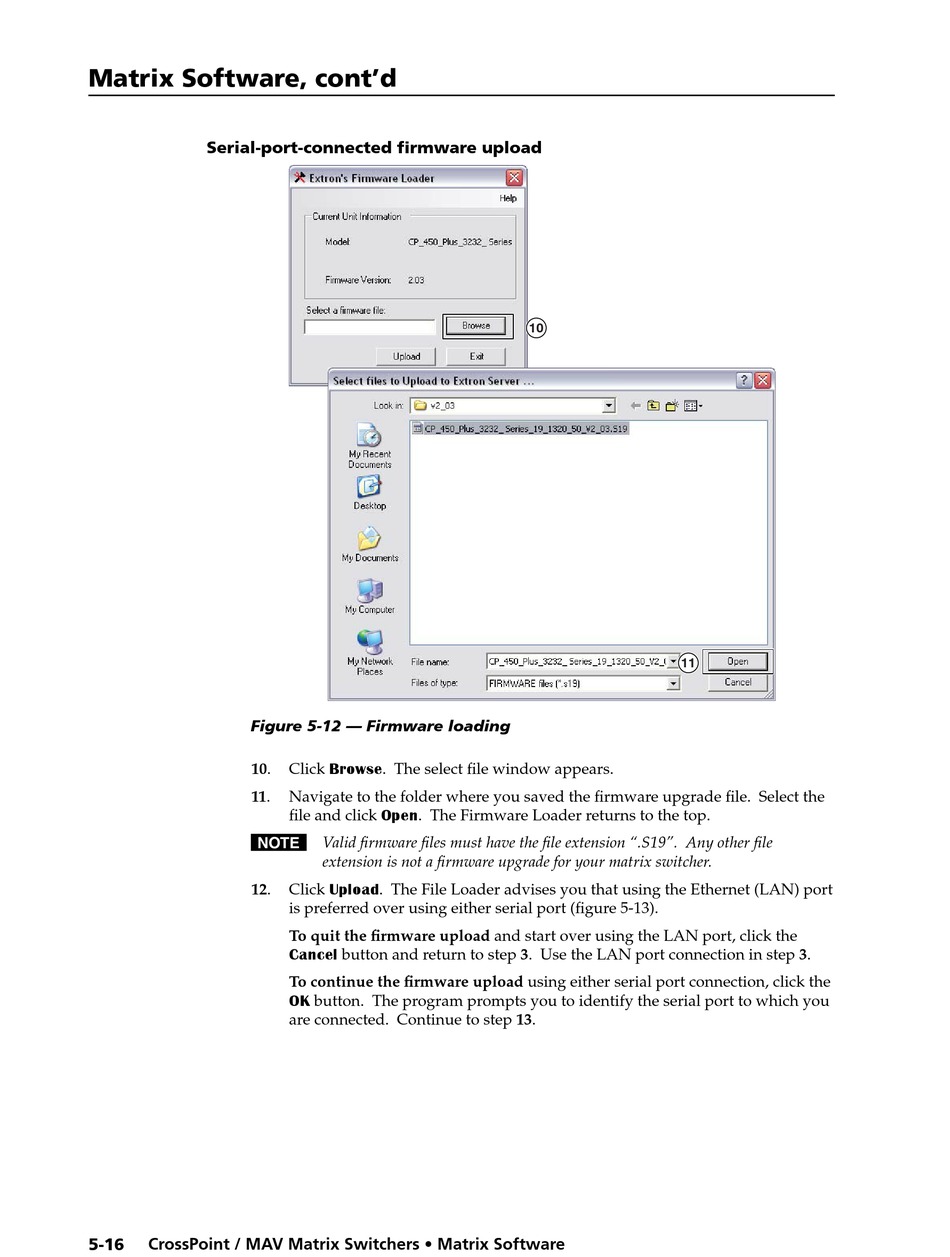

Figure 5-12 — Firmware loading
10.
11.
N Valid firmware files must have the file extension ".S19". Any other file
12.
5-16 CrossPoint / MAV Matrix Switchers • Matrix Software
Click Browse. The select file window appears.
Navigate to the folder where you saved the firmware upgrade file. Select the
file and click Open. The Firmware Loader returns to the top.
extension is not a firmware upgrade for your matrix switcher.
Click Upload. The File Loader advises you that using the Ethernet (LAN) port
is preferred over using either serial port (figure 5-13).
To quit the firmware upload and start over using the LAN port, click the
Cancel button and return to step 3. Use the LAN port connection in step 3.
To continue the firmware upload using either serial port connection, click the
OK button. The program prompts you to identify the serial port to which you
are connected. Continue to step 13.
