Serial-port-connected firmware upload

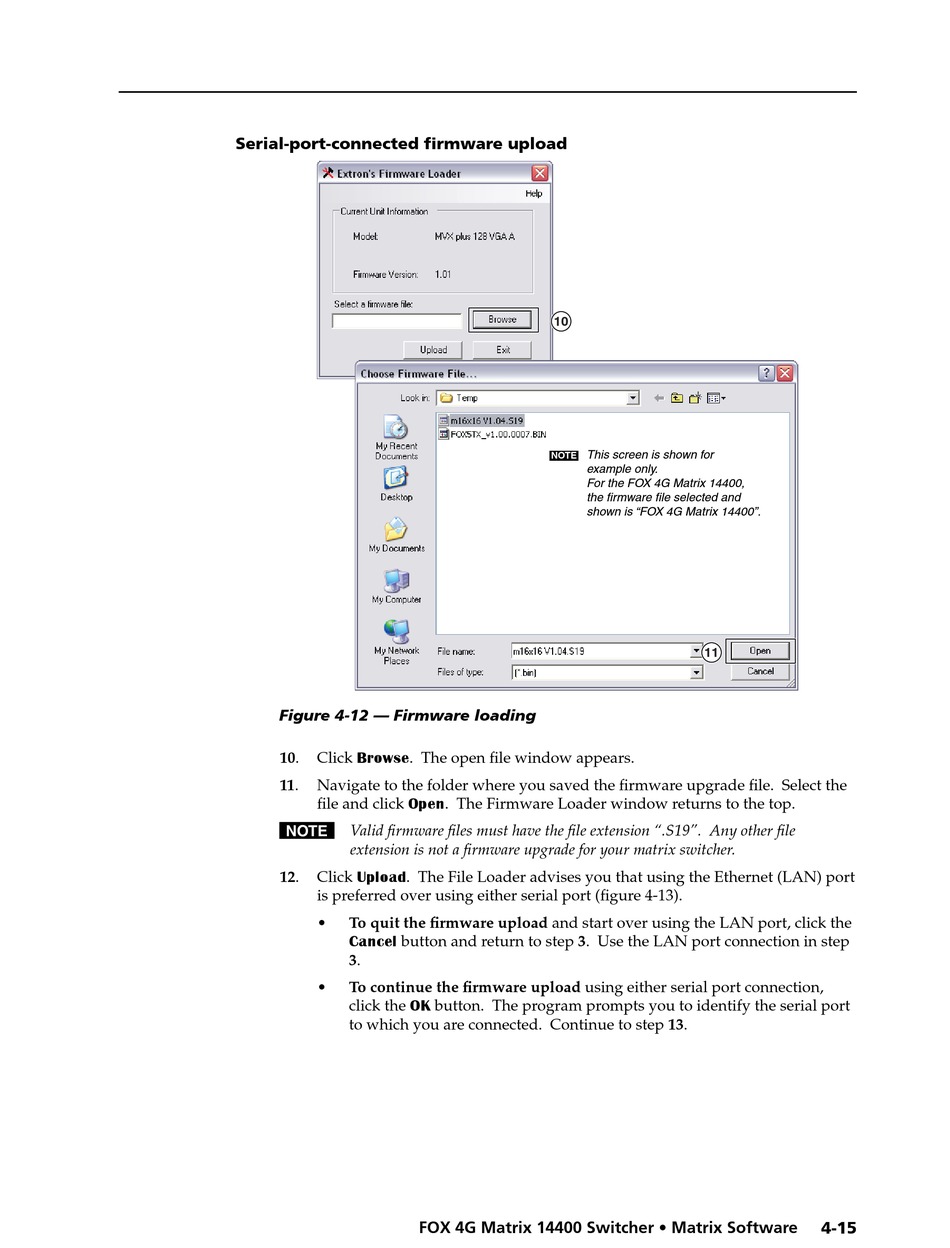

Figure 4-12 — Firmware loading
10. Click Browse. The open file window appears.
11. Navigate to the folder where you saved the firmware upgrade file. Select the
file and click Open. The Firmware Loader window returns to the top.
N Valid firmware files must have the file extension ".S19". Any other file
extension is not a firmware upgrade for your matrix switcher.
12. Click Upload. The File Loader advises you that using the Ethernet (LAN) port
is preferred over using either serial port (figure 4-13).
• To quit the firmware upload and start over using the LAN port, click the
Cancel button and return to step 3. Use the LAN port connection in step
3.
• To continue the firmware upload using either serial port connection,
click the OK button. The program prompts you to identify the serial port
to which you are connected. Continue to step 13.
10
This screen is shown for
NOTE
example only.
For the FOX 4G Matrix 14400,
the firmware file selected and
shown is "FOX 4G Matrix 14400".
FOX 4G Matrix 14400 Switcher • Matrix Software
11
4-15
