7

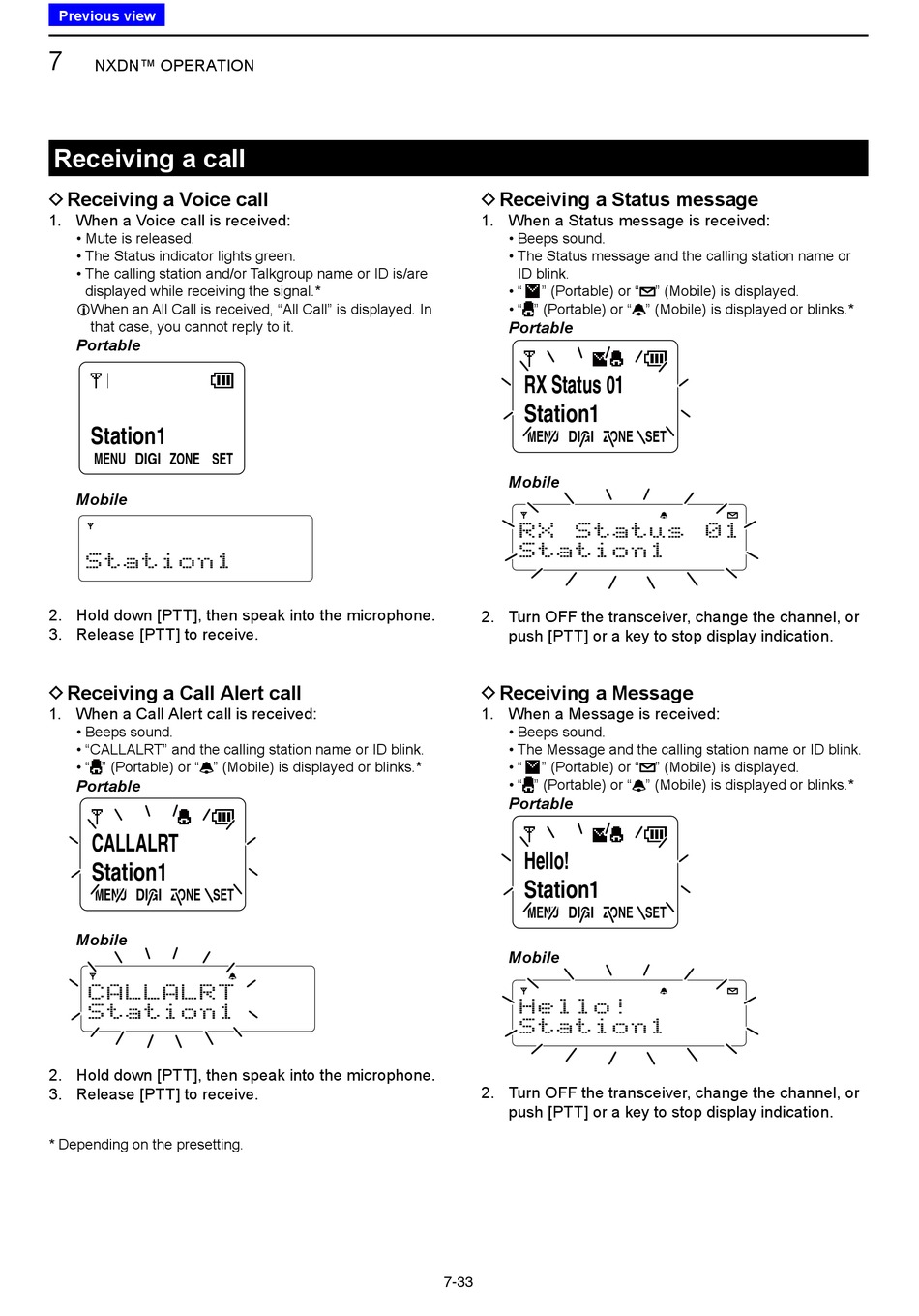

NXDN™ OPERATION
Receiving a call
D Receiving a Voice call
1. When a Voice call is received:
• Mute is released.
• The Status indicator lights green.
• The calling station and/or Talkgroup name or ID is/are
displayed while receiving the signal.*
L When an All Call is received, "All Call" is displayed. In
that case, you cannot reply to it.
Portable
Station1
MENU DIGI ZONE SET
Mobile
S t a t i o n 1
2. Hold down [PTT], then speak into the microphone.
3. Release [PTT] to receive.
D Receiving a Call Alert call
1. When a Call Alert call is received:
• Beeps sound.
• "CALLALRT" and the calling station name or ID blink.
• " " (Portable) or " " (Mobile) is displayed or blinks.*
Portable
CALLALRT
Station1
MENU DIGI ZONE SET
Mobile
C A L L A L R T
S t a t i o n 1
2. Hold down [PTT], then speak into the microphone.
3. Release [PTT] to receive.
* Depending on the presetting.
D Receiving a Status message
1. When a Status message is received:
• Beeps sound.
• The Status message and the calling station name or
ID blink.
• "
" (Portable) or "
• " " (Portable) or " " (Mobile) is displayed or blinks.*
Portable
RX Status 01
Station1
MENU DIGI ZONE SET
Mobile
R X
S t a t u s
S t a t i o n 1
2. Turn OFF the transceiver, change the channel, or
push [PTT] or a key to stop display indication.
D Receiving a Message
1. When a Message is received:
• Beeps sound.
• The Message and the calling station name or ID blink.
• "
" (Portable) or "
• " " (Portable) or " " (Mobile) is displayed or blinks.*
Portable
Hello!
Station1
MENU DIGI ZONE SET
Mobile
H e l l o !
S t a t i o n 1
2. Turn OFF the transceiver, change the channel, or
push [PTT] or a key to stop display indication.
7-33
" (Mobile) is displayed.
0 1
" (Mobile) is displayed.
