The FortiGate-50 package contains the following items:
• the FortiGate-50 Antivirus Firewall
• one orange cross-over ethernet cable
• one gray regular ethernet cable
• one null-modem cable
• FortiGate-50 QuickStart Guide
• A CD containing the FortiGate user documentation
• one AC adapter

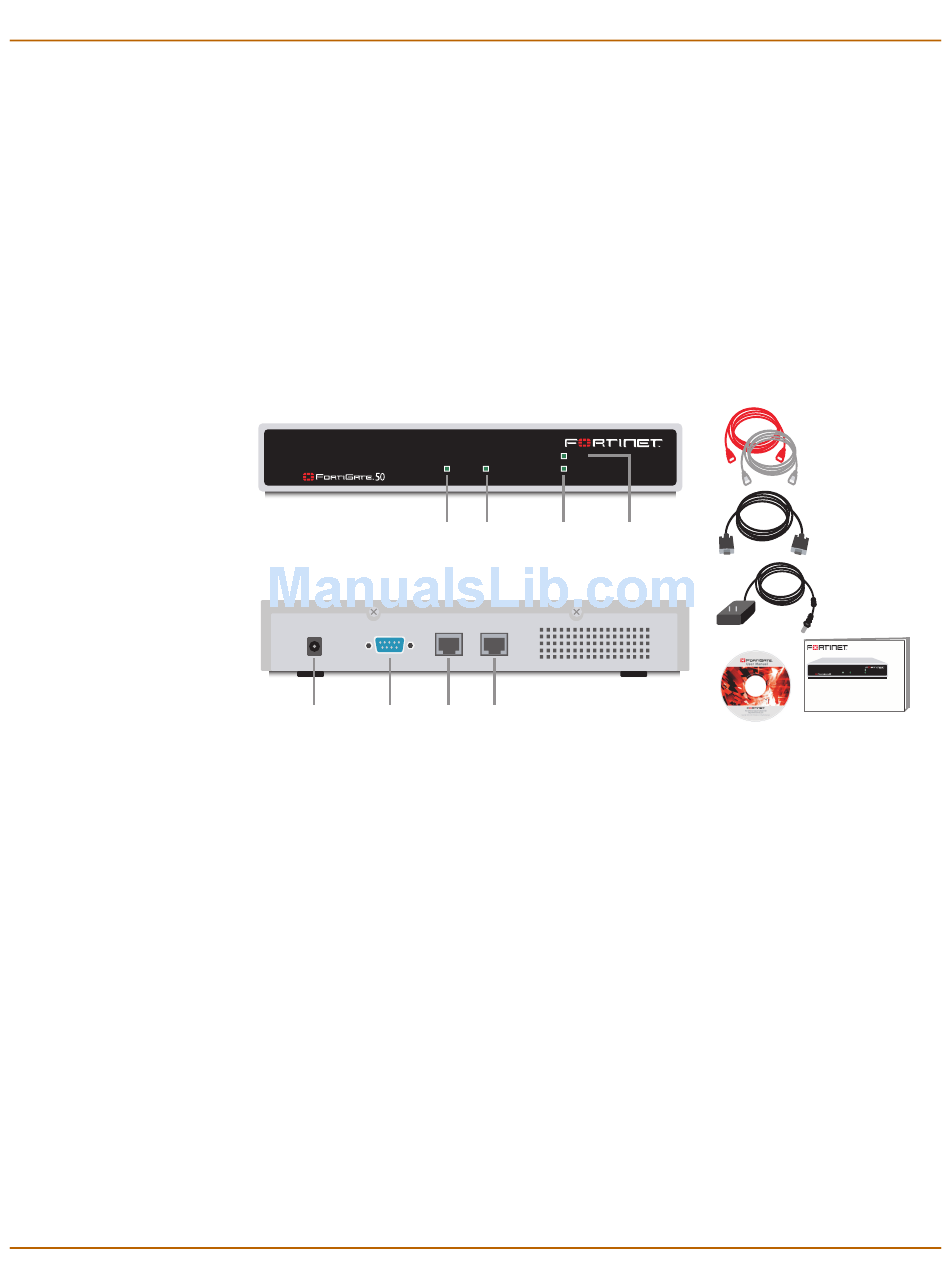

Figure 1: FortiGate-50 package contents
Internal
Interface
DC+5V 3A Console
Power RS-232 Serial
Connection Connection
The FortiGate-50 unit can be installed on any stable surface. Make sure that the
appliance has at least 1.5 in. (3.75 cm) of clearance on each side to allow for
adequate air flow and cooling.
Dimensions
• 8.63 x 6.13 x 1.38 in. (21.9 x 15.6 x 3.5 cm)
Weight
• 1.5 lb. (0.68 kg)
Power requirements
• DC input voltage: 5 V
• DC input current: 3 A
Front
POWER
INTERNAL EXTERNAL
STATUS
External Status
Interface LED
Back
External Internal
External Internal
Interface Interface
Power
LED
USER MANUAL
Getting started
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Null-Modem Cable
(RS-232)
AC Adapter
FortiGate-50
POWER
INTERNAL EXTERNAL
STATUS
QuickStart Guide
