Invacare® LiNX

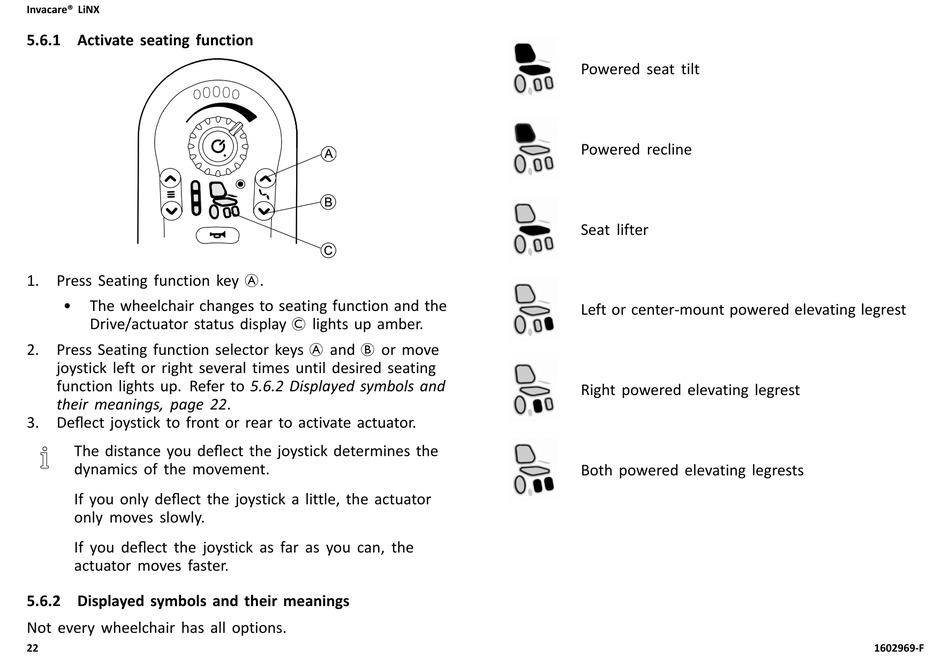

5.6.1 Activate seating function

1. Press Seating function key A.
• The wheelchair changes to seating function and the
Drive/actuator status display C lights up amber.
2. Press Seating function selector keys A and B or move
joystick left or right several times until desired seating
function lights up. Refer to 5.6.2 Displayed symbols and
their meanings, page 22.
3. Deflect joystick to front or rear to activate actuator.
The distance you deflect the joystick determines the
dynamics of the movement.
If you only deflect the joystick a little, the actuator
only moves slowly.
If you deflect the joystick as far as you can, the
actuator moves faster.

5.6.2 Displayed symbols and their meanings

Not every wheelchair has all options.
22
Powered seat tilt
Powered recline
Seat lifter
Left or center-mount powered elevating legrest
Right powered elevating legrest
Both powered elevating legrests
1602969-F
