Invacare® LiNX

6 Troubleshooting

6.1 Fault diagnosis

If the electronic system shows a fault, use the following
fault-finding guide to locate the fault.
Ensure that the drive electronics system is powered
up before starting any diagnosis.
If the status display is OFF:
• Check whether the drive electronics system is powered
up.
• Check whether all cables are correctly connected.
• Ensure that the batteries are not discharged.
If a fault number is displayed in the status display:
• Proceed to the next section.

6.1.1 Fault codes and diagnosis codes

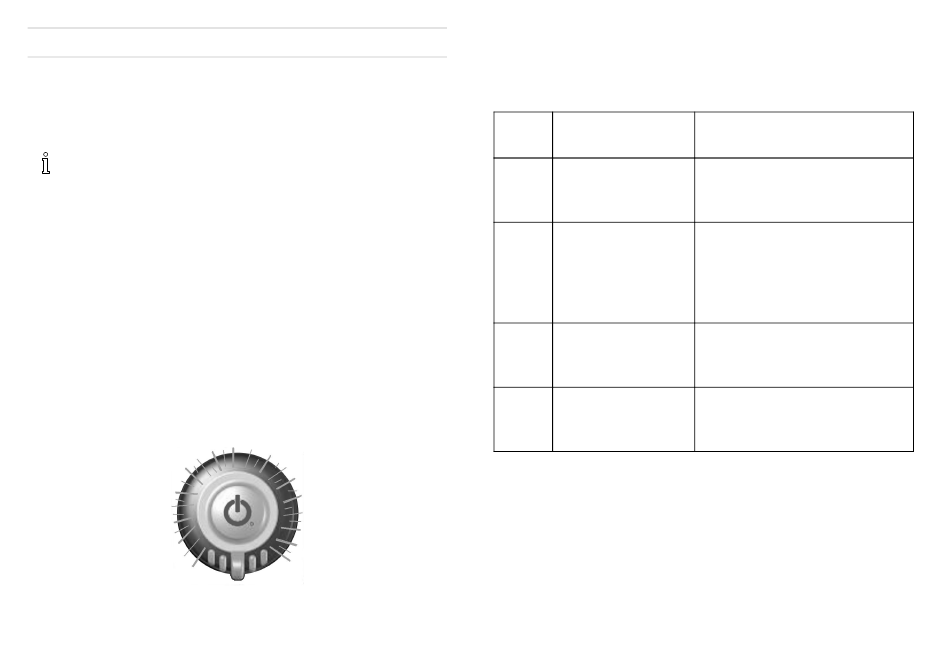

If there is a fault with the system when it is powered up,
the status indicator flashes red. The number of flashes
indicates the type of fault.
The table below describes the fault indication, and a few
possible actions that can be taken to rectify the problem.
32
The actions listed are not in any particular order and
are suggestions only. The intention is that one of the
suggestions may help you clear the problem. If in doubt,
contact your provider.
Flash Fault description
code
1
Remote fault
2
Network or
configuration fault
3
Motor 1 1 fault
4
Motor 2 1 fault
Possible action
• Check cables and
connectors.
• Contact your provider.
• Check cables and
connectors.
• Recharge the batteries.
• Check charger.
• Contact your provider.
• Check cables and
connectors.
• Contact your provider.
• Check cables and
connectors.
• Contact your provider.
1602969-F
