Invacare® LiNX
• when the system comes out of an inhibit or drive
lock-out.
Drive OON warning
The joystick must be in the center position:
• when a system is powering up,
• on a function change or
• when transitioning from a drive lock-out or inhibit state.

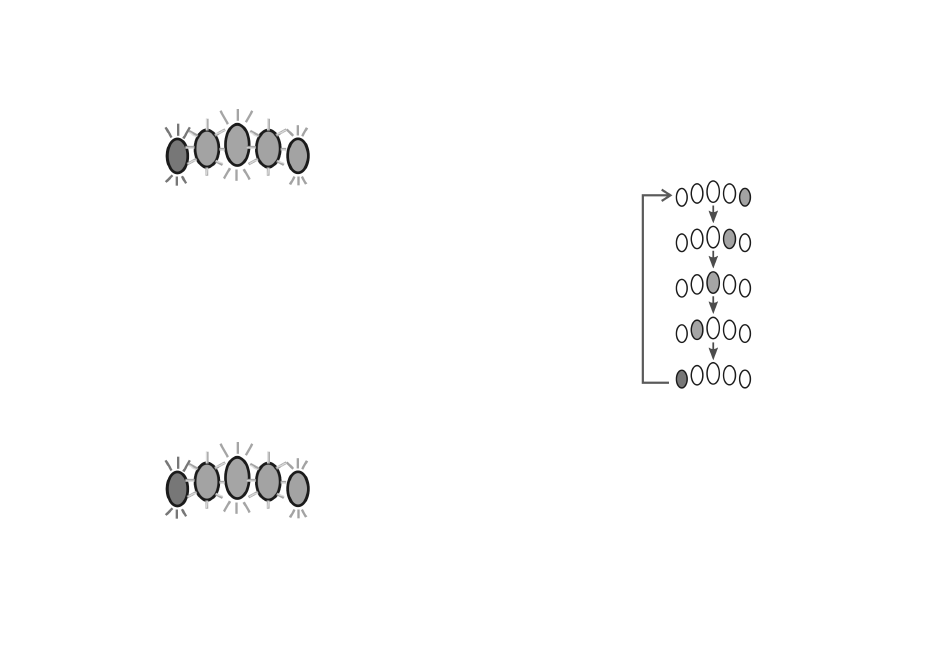

Otherwise a drive OON warning is displayed. During a drive
OON warning, the battery gauge LEDs and the drive wheel
indicator (if fitted) flash continually (all on, followed by all
off) to alert the user. In this state the wheelchair does not
drive. If the joystick is returned to the center position, the
warning clears and the wheelchair drives normally.
Seating OON warning
When a system is powering up or after a function change,
no direct access switches can be active, otherwise a seating
OON warning is displayed.
During a seating OON warning, the battery gauge LEDs and
the seating indicator flash continually (all on, followed by all
34
off) to alert the user. In this state the seating motions do
not operate. If the switches are deactivated, the warning
clears and the seating motions operate normally.

6.3 Drive inhibit indication

The drive inhibit mode ensures that the wheelchair does not
drive when connected to the charger.
Drive inhibit mode is indicated by the battery gauge with a
right-to-left chase sequence.
The chase sequence continues until the fault condition has
been cleared.
1602969-F
