Invacare® LiNX
symbol start pulsing. These two symbols remain pulsing
while driving to show the speed reduction until speed
reduction has been deactivated again.
Seating function inhibits
•
Tilt limit
The maximum tilt limit switch is a function to prevent
the backrest angle from extending beyond a maximum
pre-set angle, when the lifter is raised above a certain
point. The drive electronics stops automatically and the
seat tilt or backrest symbol starts pulsing.
•
Lifter seat lockout
The drive electronics is equipped with a lifter seat
lockout switch to prevent the lifter from rising up above
a certain point when the seat tilt or backrest angle is
adjusted above a certain point. The drive electronics
stops automatically and the lifter symbol starts pulsing.
24

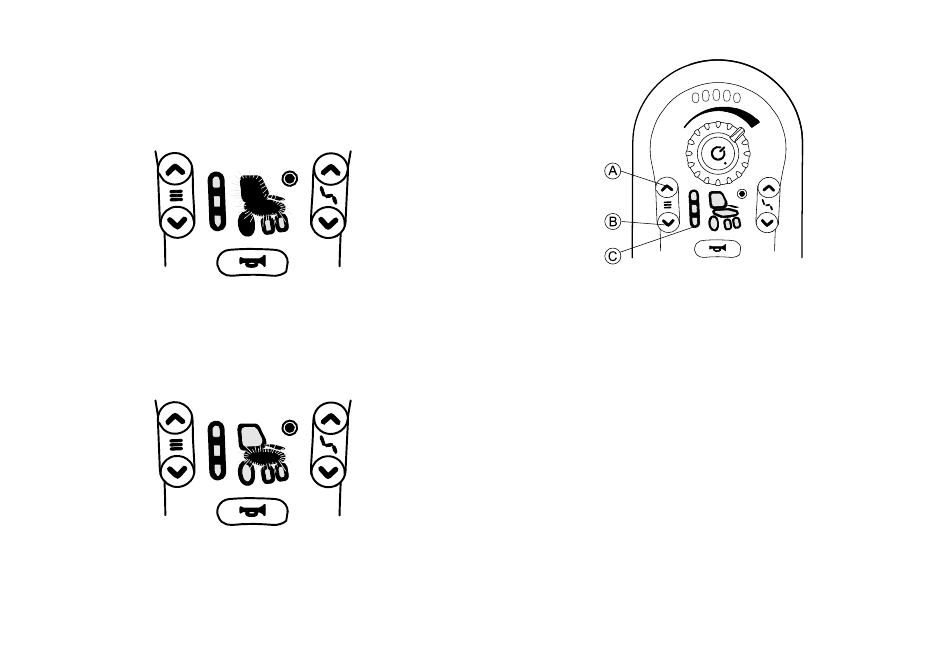

5.7 Activating the drive function
