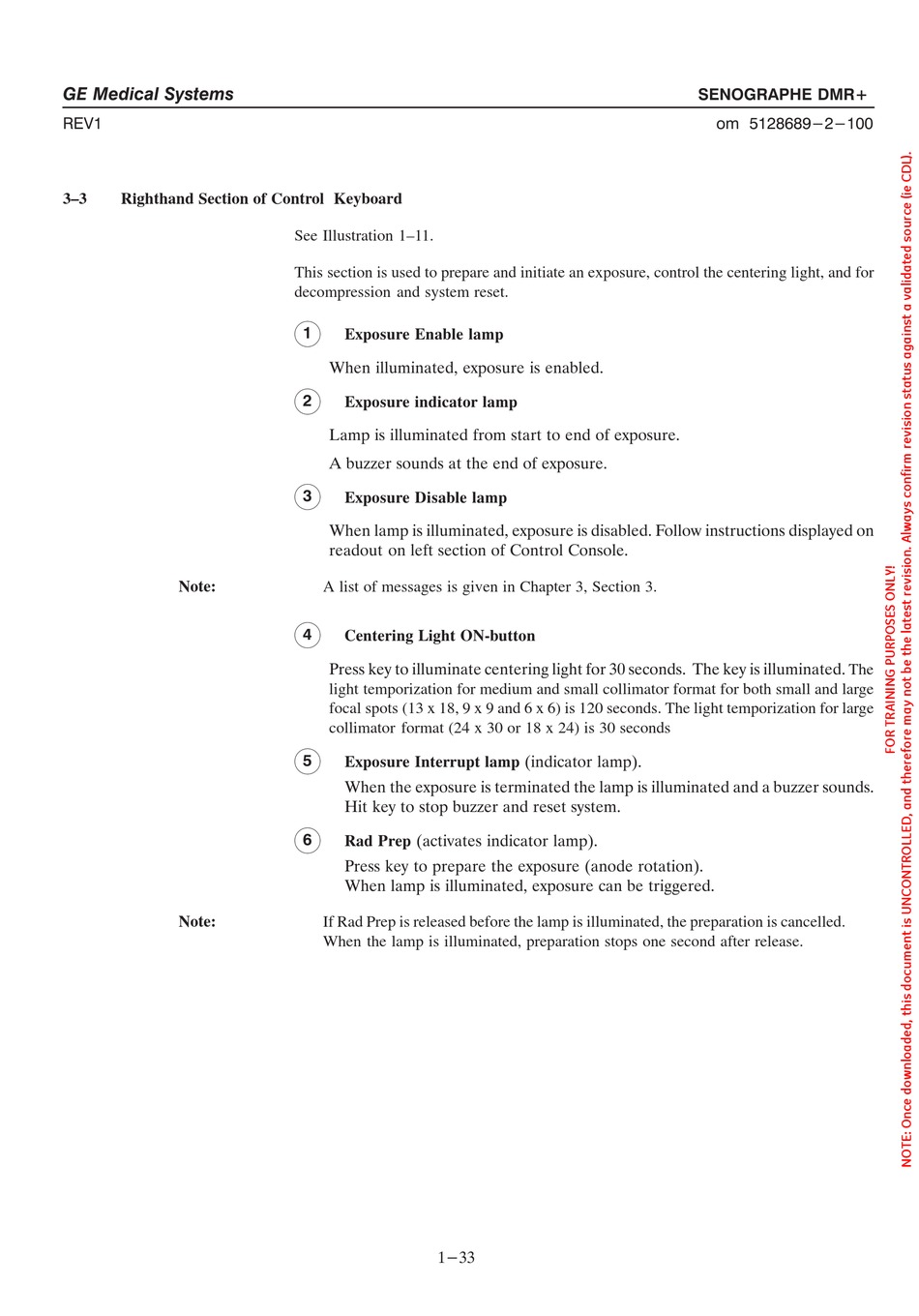

3–3 Righthand Section of Control Keyboard
Note:
Note:
See Illustration 1–11.
This section is used to prepare and initiate an exposure, control the centering light, and for
decompression and system reset.
1
Exposure Enable lamp
When illuminated, exposure is enabled.
2
Exposure indicator lamp
Lamp is illuminated from start to end of exposure.
A buzzer sounds at the end of exposure.
3
Exposure Disable lamp
When lamp is illuminated, exposure is disabled. Follow instructions displayed on
readout on left section of Control Console.
A list of messages is given in Chapter 3, Section 3.
4
Centering Light ON button
Press key to illuminate centering light for 30 seconds. The key is illuminated. The
light temporization for medium and small collimator format for both small and large
focal spots (13 x 18, 9 x 9 and 6 x 6) is 120 seconds. The light temporization for large
collimator format (24 x 30 or 18 x 24) is 30 seconds
5
Exposure Interrupt lamp (indicator lamp).
When the exposure is terminated the lamp is illuminated and a buzzer sounds.
Hit key to stop buzzer and reset system.
6
Rad Prep (activates indicator lamp).
Press key to prepare the exposure (anode rotation).
When lamp is illuminated, exposure can be triggered.
If Rad Prep is released before the lamp is illuminated, the preparation is cancelled.
When the lamp is illuminated, preparation stops one second after release.
1-33
