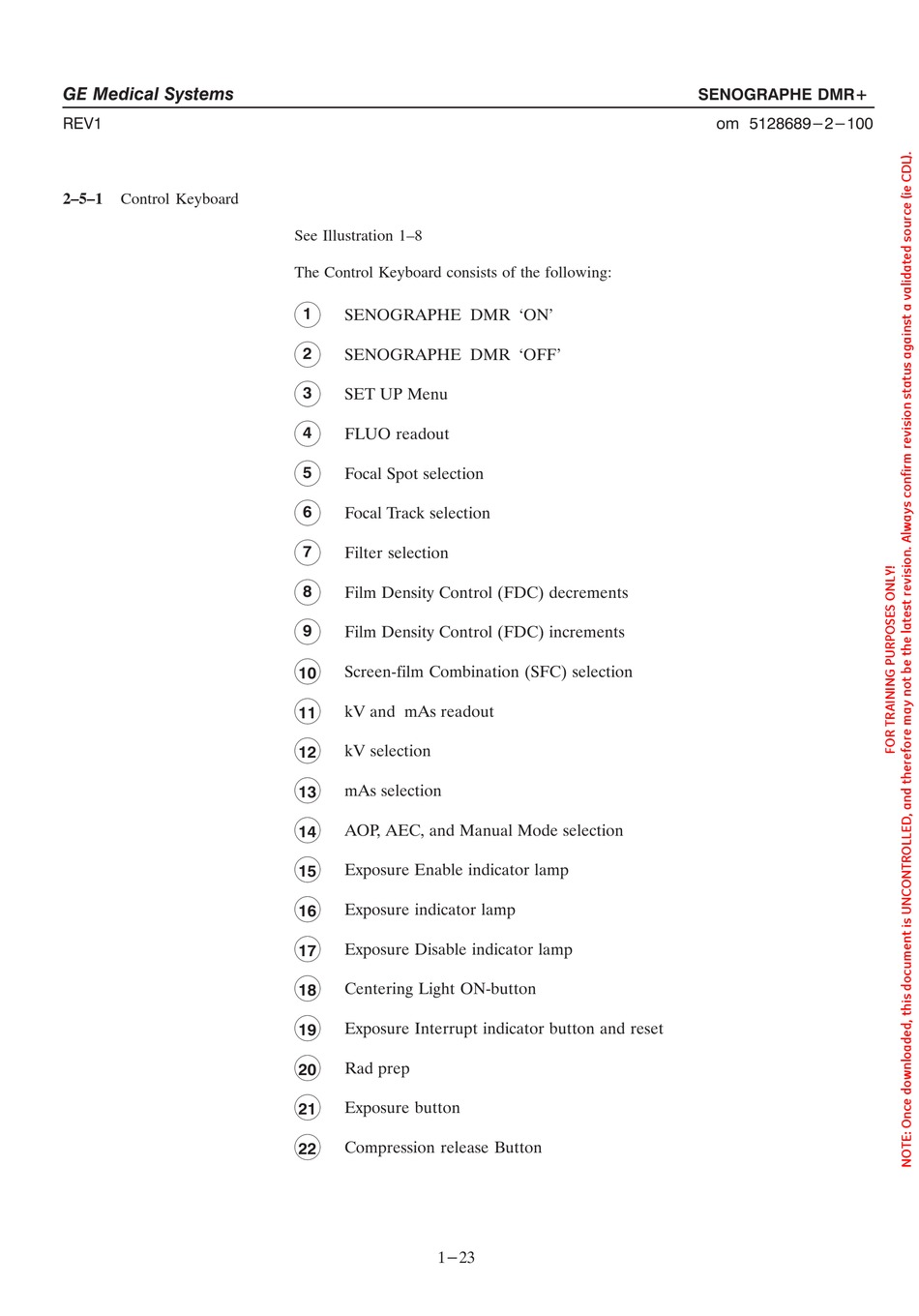

Control Keyboard

See Illustration 1–8
The Control Keyboard consists of the following:
1
SENOGRAPHE DMR `ON'
2
SENOGRAPHE DMR `OFF'
3
SET UP Menu
4
FLUO readout
5
Focal Spot selection
6
Focal Track selection
7
Filter selection
8
Film Density Control (FDC) decrements
9
Film Density Control (FDC) increments
Screen film Combination (SFC) selection
10
kV and mAs readout
11
kV selection
12
mAs selection
13
AOP, AEC, and Manual Mode selection
14
Exposure Enable indicator lamp
15
Exposure indicator lamp
16
Exposure Disable indicator lamp
17
Centering Light ON button
18
Exposure Interrupt indicator button and reset
19
Rad prep
20
Exposure button
21
Compression release Button
22
