GE Medical Systems
REV1
2–1–3

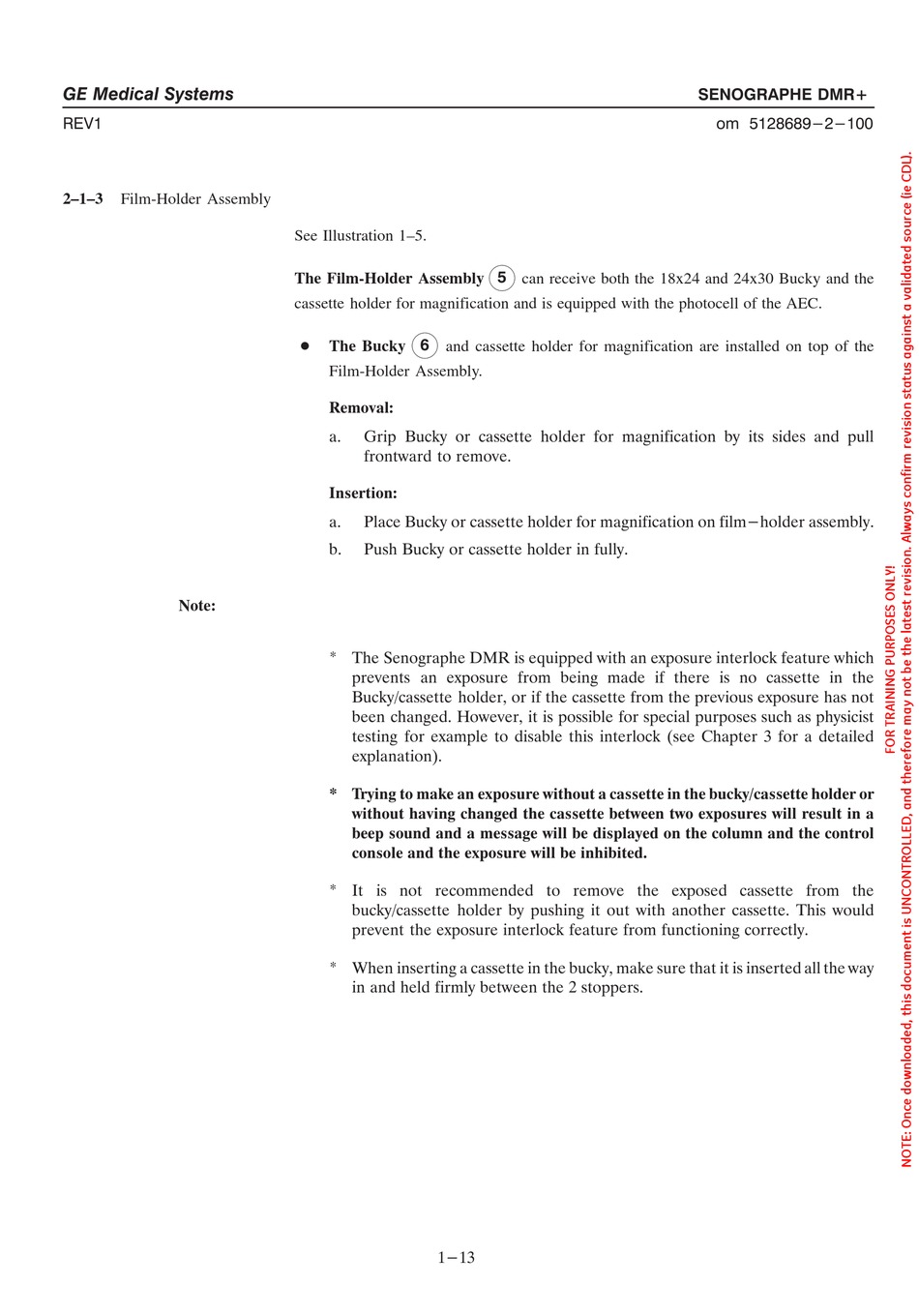

Film-Holder Assembly
Note:
See Illustration 1–5.
The Film-Holder Assembly 5 can receive both the 18x24 and 24x30 Bucky and the
cassette holder for magnification and is equipped with the photocell of the AEC.
The Bucky 6 and cassette holder for magnification are installed on top of the
D
Film-Holder Assembly.
Removal:
a.
Grip Bucky or cassette holder for magnification by its sides and pull
frontward to remove.
Insertion:
a.
Place Bucky or cassette holder for magnification on film-holder assembly.
b.
Push Bucky or cassette holder in fully.
* The Senographe DMR is equipped with an exposure interlock feature which
prevents an exposure from being made if there is no cassette in the
Bucky/cassette holder, or if the cassette from the previous exposure has not
been changed. However, it is possible for special purposes such as physicist
testing for example to disable this interlock (see Chapter 3 for a detailed
explanation).
* Trying to make an exposure without a cassette in the bucky/cassette holder or
without having changed the cassette between two exposures will result in a
beep sound and a message will be displayed on the column and the control
console and the exposure will be inhibited.
* It is not recommended to remove the exposed cassette from the
bucky/cassette holder by pushing it out with another cassette. This would
prevent the exposure interlock feature from functioning correctly.
* When inserting a cassette in the bucky, make sure that it is inserted all the way
in and held firmly between the 2 stoppers.
1-13
SENOGRAPHE DMR+
om 5128689-2-100
