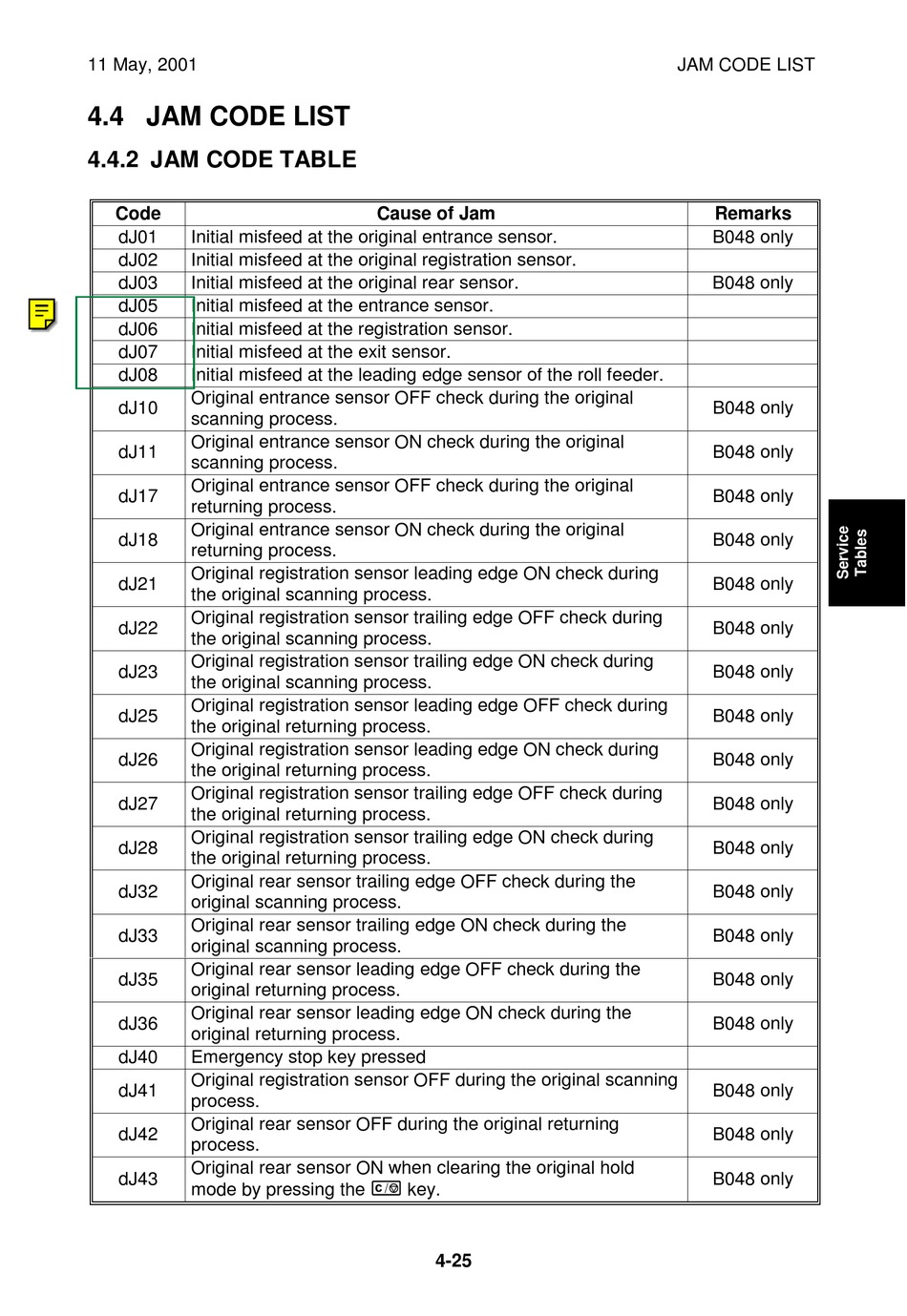

Ricoh J2SS-C3 Service Manual page 79

11 May, 2001
4.4 JAM CODE LIST
4.4.2 JAM CODE TABLE
Code
dJ01 Initial misfeed at the original entrance sensor.
dJ02 Initial misfeed at the original registration sensor.
dJ03 Initial misfeed at the original rear sensor.
dJ05 Initial misfeed at the entrance sensor.
dJ06 Initial misfeed at the registration sensor.
dJ07 Initial misfeed at the exit sensor.
dJ08 Initial misfeed at the leading edge sensor of the roll feeder.
Original entrance sensor OFF check during the original
dJ10
scanning process.
Original entrance sensor ON check during the original
dJ11
scanning process.
Original entrance sensor OFF check during the original
dJ17
returning process.
Original entrance sensor ON check during the original
dJ18
returning process.
Original registration sensor leading edge ON check during
dJ21
the original scanning process.
Original registration sensor trailing edge OFF check during
dJ22
the original scanning process.
Original registration sensor trailing edge ON check during
dJ23
the original scanning process.
Original registration sensor leading edge OFF check during
dJ25
the original returning process.
Original registration sensor leading edge ON check during
dJ26
the original returning process.
Original registration sensor trailing edge OFF check during
dJ27
the original returning process.
Original registration sensor trailing edge ON check during
dJ28
the original returning process.
Original rear sensor trailing edge OFF check during the
dJ32
original scanning process.
Original rear sensor trailing edge ON check during the
dJ33
original scanning process.
Original rear sensor leading edge OFF check during the
dJ35
original returning process.
Original rear sensor leading edge ON check during the
dJ36
original returning process.
dJ40 Emergency stop key pressed
Original registration sensor OFF during the original scanning
dJ41
process.
Original rear sensor OFF during the original returning
dJ42
process.
Original rear sensor ON when clearing the original hold
dJ43
mode by pressing the ! key.
Cause of Jam
4-25
JAM CODE LIST
Remarks
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
B048 only
