INSTALLATION PROCEDURE 11 May, 2001
[A]
[B]
B440I120.WMF
60±10mm 60±10mm
80±10mm
[C]
[D]
B440I123.WMF

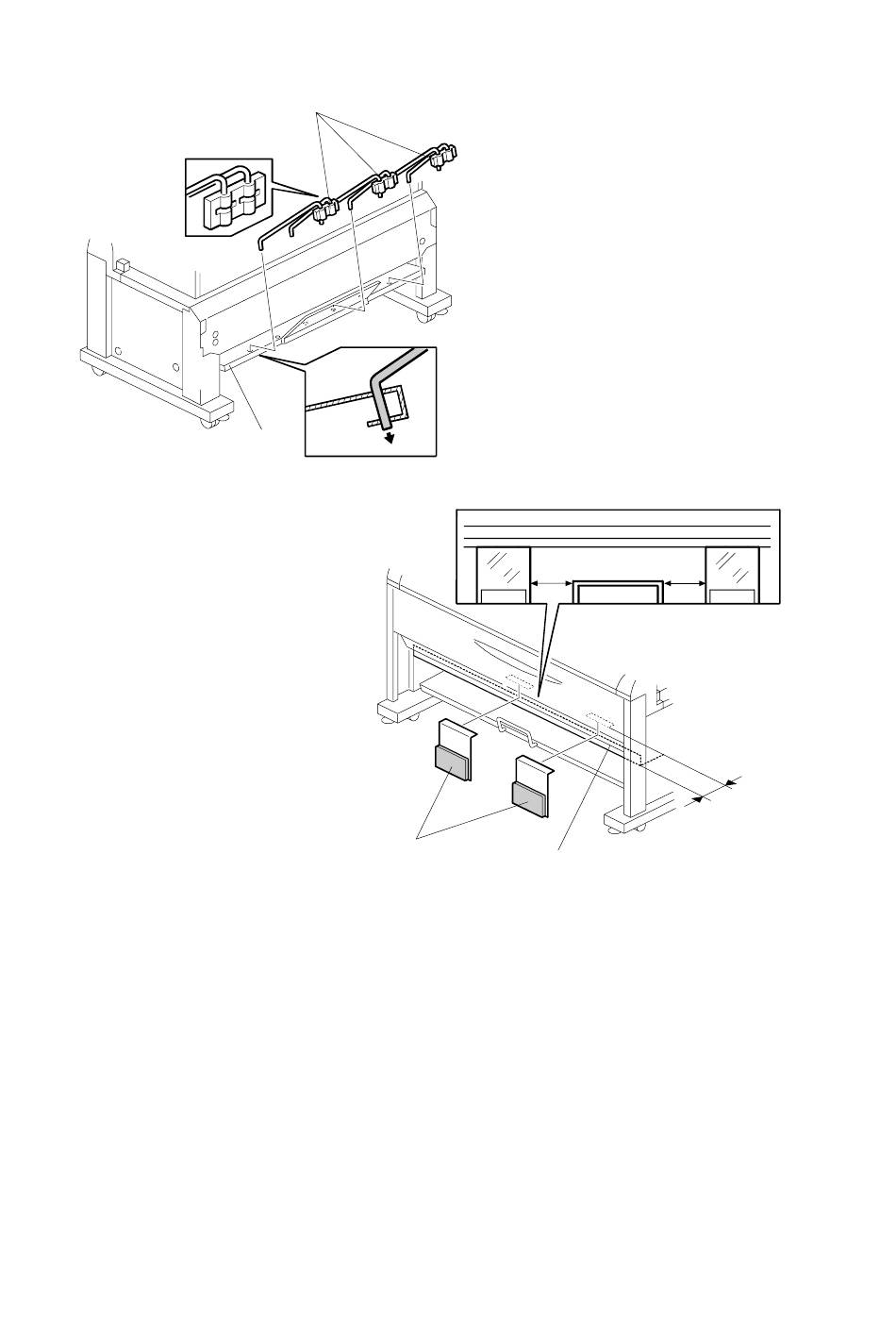

8. Hook the rear copy trays [A] onto the copy tray stay [B].
9. Attach the copy tray stoppers [C] onto the bottom of the middle plate [D].
