354

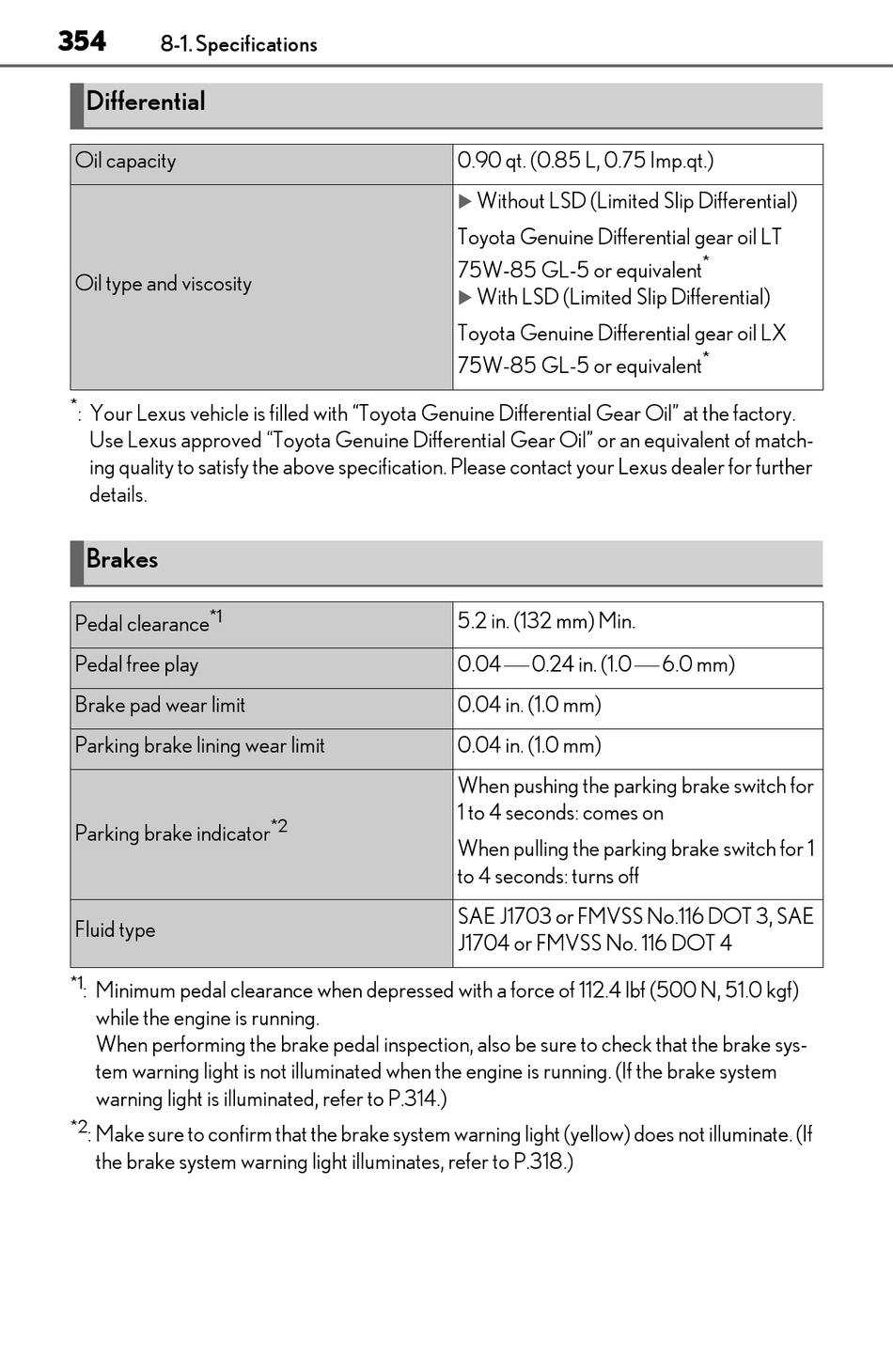

8-1. Specifications
Differential
Oil capacity
Oil type and viscosity
*
: Your Lexus vehicle is filled with "Toyota Genuine Differential Gear Oil" at the factory.
Use Lexus approved "Toyota Genuine Differential Gear Oil" or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Brakes
*1
Pedal clearance
Pedal free play
Brake pad wear limit
Parking brake lining wear limit
Parking brake indicator
Fluid type
*1
: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the engine is running. (If the brake system
warning light is illuminated, refer to P.314.)
*2
: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If
the brake system warning light illuminates, refer to P.318.)
*2
0.90 qt. (0.85 L, 0.75 Imp.qt.)
Without LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
With LSD (Limited Slip Differential)
Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent
5.2 in. (132 mm) Min.
0.04 0.24 in. (1.0 6.0 mm)
0.04 in. (1.0 mm)
0.04 in. (1.0 mm)
When pushing the parking brake switch for
1 to 4 seconds: comes on
When pulling the parking brake switch for 1
to 4 seconds: turns off
SAE J1703 or FMVSS No.116 DOT 3, SAE
J1704 or FMVSS No. 116 DOT 4
*
*
