352

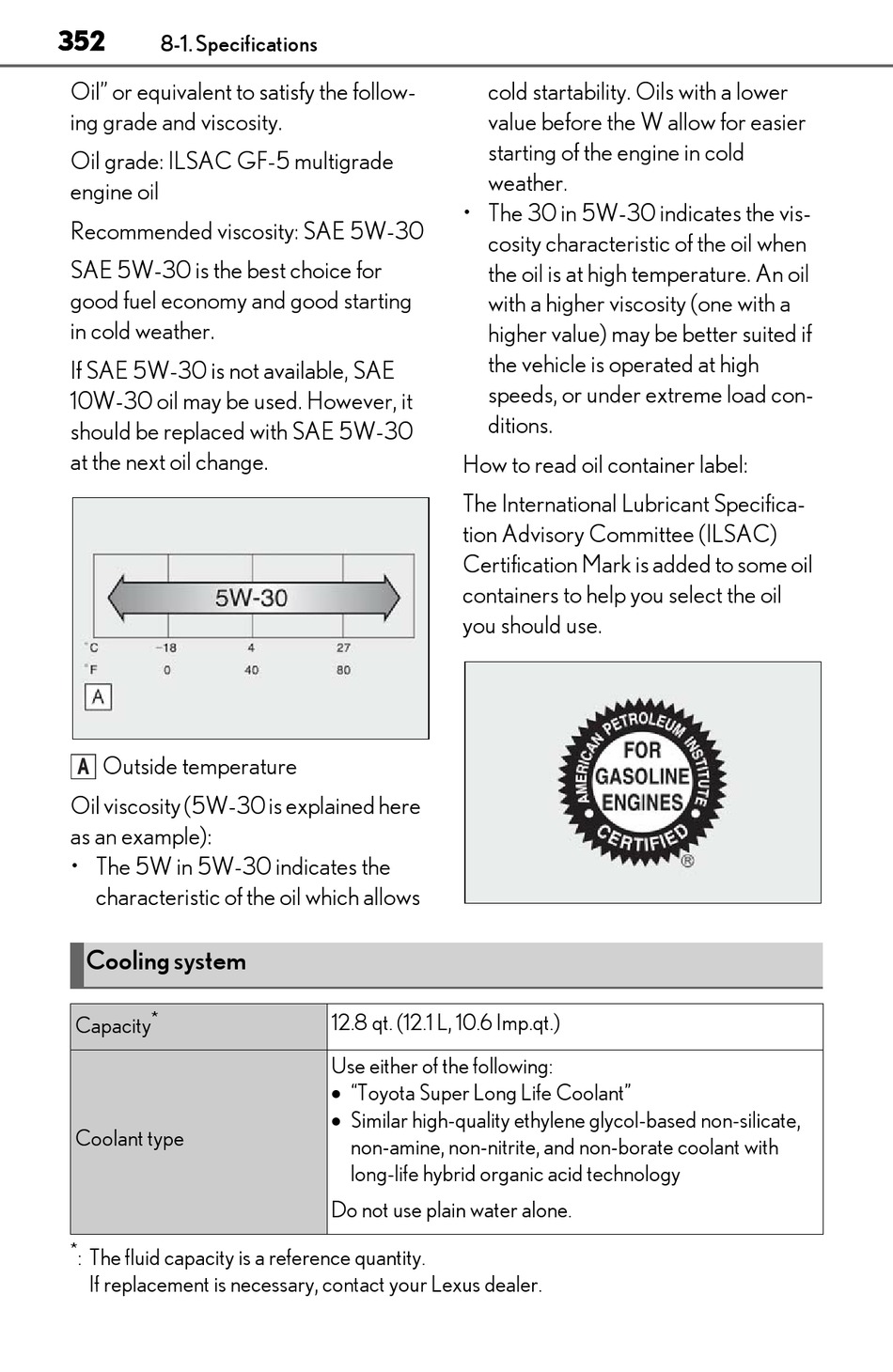

8-1. Specifications
Oil" or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.
Outside temperature
A
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the
characteristic of the oil which allows
Cooling system
*
Capacity
Coolant type
*
: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 30 in 5W-30 indicates the vis-
cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil
you should use.
12.8 qt. (12.1 L, 10.6 Imp.qt.)
Use either of the following:
"Toyota Super Long Life Coolant"
Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
