Emerson Rosemount 702 Quick Start Manual

Wireless discrete transmitter
Hide thumbs Also See for Rosemount 702:

Advertisement

Quick Links

Download this manual

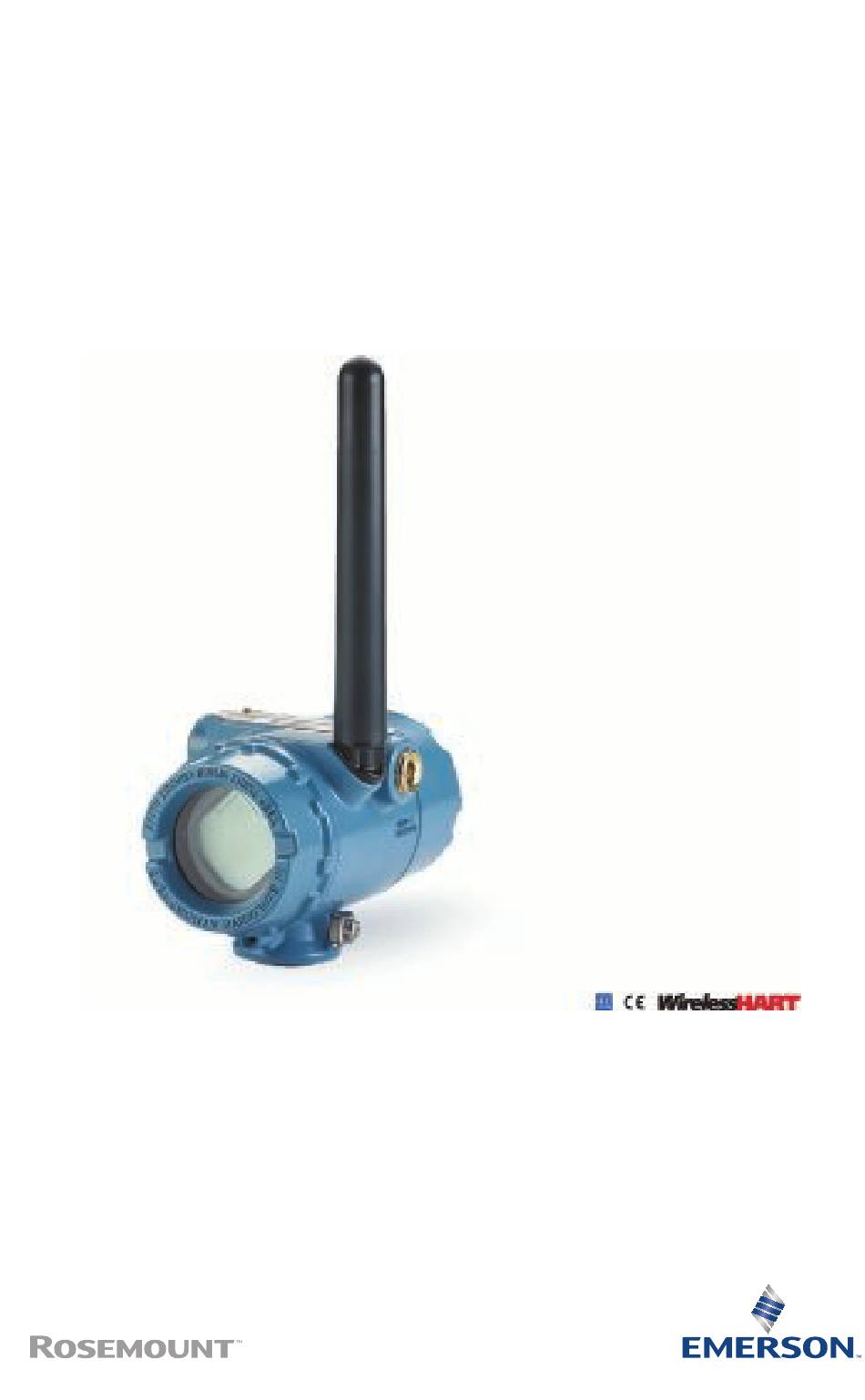

Quick Start Guide
00825-0400-4702, Rev GE
April 2018
™
Rosemount
702 Wireless Discrete
Transmitter

Advertisement

loading

Related Manuals for Emerson Rosemount 702

Summary of Contents for Emerson Rosemount 702

  • Page 1 Quick Start Guide 00825-0400-4702, Rev GE April 2018 ™ Rosemount 702 Wireless Discrete Transmitter...
  • Page 2 This manual supplement provides information on installing, operating, and maintaining the Rosemount 702 Wireless Discrete Transmitter for plunger arrival detection. The table below lists the variants of the Rosemount 702 transmitter; refer to the table if looking for documentation on variants. Refer to the Rosemount 702 Reference Manual for more instruction.

  • Page 3: Table Of Contents

    Quick Start Guide April 2018 Figure A-: Rosemount 702 Transmitter for Plunger Arrival Plunger Arrival Sensor (ETC Cyclops) Lower Lubricator Outlet 702 Plunger Arrival Well Casing Lubricator Production gas Plunger Well casing/production tube Wastewater Well casing Upper Lubricator Outlet Contents Wireless considerations ........

  • Page 4: Wireless Considerations

    SmartPower Solutions model number 701PBKKF (part number 00753-9220-0001) into the Rosemount 702 Transmitter to power the device. Wireless devices should be powered up in order of proximity from the Gateway, beginning with the closest device, then working outward from the Gateway.
  • Page 5 A. Conduit entry Field Communicator connections The power module needs to be installed before the Field Communicator can interface with the Rosemount 702 Transmitter. This transmitter uses the Black Power Module; Order model number 701PBKKF or part number 00753-9220-0001. Quick Start Guide...
  • Page 6 CH Output Mode: 26VDC Max 100mA Max P/N 00753-9200-0020 COMM The Rosemount 702 Transmitter and all other wireless devices should not be set up until after the Smart Wireless Gateway has been installed and is functioning properly. Rosemount 702 Wireless Discrete Transmitter...

  • Page 7: Physical Installation

    April 2018 Quick Start Guide Physical installation The Rosemount 702 Transmitter can be installed in one of two configurations: • Direct mount, where the switch is connected directly to the Rosemount 702 Transmitter housing’s conduit entry. • Remote mount, where the switch is mounted separate from the Rosemount 702 Transmitter housing, then connected to the Rosemount 702 Transmitter via conduit.
  • Page 8 1. Install the switch according to standard installation practices making sure to use thread sealant on all connections. 2. Attach the Rosemount 702 Transmitter housing to the switch using the threaded conduit entry. 3. Attach the switch wiring to the terminals as indicated on the wiring...
  • Page 9 2. Run wiring (and conduit if necessary) from the switch to the Rosemount 702 Transmitter. 3. Pull the wiring through the threaded conduit entry of the Rosemount 702 Transmitter. 4. Attach the switch wiring to the terminals as indicated on the wiring...
  • Page 10 High gain, remote antenna (optional) The high gain, remote antenna options provide flexibility for mounting the Rosemount 702 Transmitter based on wireless connectivity, lightning protection, and current work practices. Rosemount 702 Wireless Discrete Transmitter...
  • Page 11 April 2018 Quick Start Guide Figure 2-3: Rosemount 702 Transmitter with High Gain, Remote Antenna 2.3.1 Install the high gain, remote antenna (WN option) Prerequisites Find a location where the remote antenna has optimal wireless performance. Ideally this will be 15–25 ft. (4.6–7.6 m) above the ground or 6 ft. (2 m) above obstructions or major infrastructure.
  • Page 12 1. Mount the antenna on a 1.5 to 2-in. pipe mast using the supplied mounting equipment. 2. Connect the lightning arrestor directly to the top of the Rosemount 702 Transmitter. 3. Install the grounding lug, lock washer, and nut on top of lightning arrestor.
  • Page 13 April 2018 Quick Start Guide Figure 2-4: Applying Coaxial Sealant to Cable Connections 6. Ensure the mounting mast and lightning arrestor are grounded according to local/national electrical code. Any spare lengths of coaxial cable should be placed in 12-in. (0.3 m) coils. Quick Start Guide...

  • Page 14: Device Network Configuration

    Network ID and Join Key of the Gateway and other devices in the network. If the Network ID and Join Key do not match that of the Gateway, the Rosemount 702 Transmitter will not communicate with the network. The Network ID and Join Key may be obtained from the Smart Wireless Gateway...
  • Page 15 April 2018 Quick Start Guide Field Communicator The Network ID and Join Key may be changed in the wireless device by using the following Fast Key sequence. Set both Network ID and Join Key. Function Fast Key sequence Menu items Wireless setup 2,2,1 Network ID, Join Device to Network...

  • Page 16: Verify Operation

    Local display 4.1.1 Start-up sequence When the Rosemount 702 Transmitter is first powered up, the LCD display will display a sequence of screens: All Segments On, Device Identification, Device Tag, and then the user chosen variables of the periodic display.
  • Page 17 Quick Start Guide Field Communicator ® For HART Wireless transmitter communication, a Rosemount 702 Transmitter DD is required.To obtain the latest DD, visit the Emerson Easy Upgrade site at: Emerson.com/Device‐Install‐Kits. Function Key sequence Menu items Communications 3, 3 Join Status, Wireless Mode, Join Mode, Number of Available...
  • Page 18 Figure 4-1: Smart Wireless Gateway Explorer Page AMS Wireless Configurator When the device has joined the network, it will appear in AMS Wireless Configurator as illustrated below. Figure 4-2: AMS Wireless Configurator, Device Explorer Screen Rosemount 702 Wireless Discrete Transmitter...
  • Page 19 April 2018 Quick Start Guide Troubleshooting If the device is not joined to the network after power up, verify the correct configuration of the Network ID and Join Key, and that Active Advertising has been enabled on the Smart Wireless Gateway. The Network ID and Join Key in the device must match the Network ID and Join Key of the Gateway.

  • Page 20: Reference Information: Wiring Switch Inputs, Output Circuits, And Leak Sensors

    Reference information: wiring switch inputs, output circuits, and leak sensors Dry contact switch inputs The Rosemount 702 Transmitter has a pair of screw terminals for each of two channels, and a pair of communication terminals. These terminals are labeled as follows:...
  • Page 21 5.2.2 Dual input, limit contact logic When configured for Limit Contact Logic, the Rosemount 702 Transmitter will accept the input from two single pole single throw switch on inputs CH1 and CH2, and will use limit contact logic for the determination of the wireless outputs.
  • Page 22 5.2.3 Dual input, opposing contact logic When configured for Opposing Contact Logic, the Rosemount 702 Transmitter will accept the input from a double pole single throw switch on inputs CH1 and CH2, and will use opposing contact logic for the determination of the wireless outputs.
  • Page 23 Momentary discrete inputs, measurement option code 32 and 42 The Rosemount 702 Transmitter is capable of detecting momentary discrete inputs of 10 milliseconds or more in duration, regardless of the wireless update rate. At each wireless update, the device reports current discrete input state along with an accumulating count of close-open cycles for each input channel.
  • Page 24 Momentary Inputs and Accumulating Count A. Input Switch State B. Closed C. Open D. State E. Count F. Wireless Updates Figure 5-6: Reporting of Current Discrete State and Count in AMS Device Manager A. Current State B. Count Rosemount 702 Wireless Discrete Transmitter...
  • Page 25 Outputs are a simple switch closure to activate an output circuit. The Rosemount 702 Transmitter output does not provide any voltage or current, the output circuit must have power of its own. The Rosemount 702 Transmitter output has maximum switch capacity per channel of 26 volts DC and 100 milliamps.
  • Page 26 Quick Start Guide April 2018 Discrete output switch functionality The discrete output of the Rosemount 702 Transmitter is driven by the host control system, through the Smart Wireless Gateway, and out to the Rosemount 702 Transmitter. The time required for this wireless...
  • Page 27 April 2018 Quick Start Guide Figure 5-8: Possible Configurations for Both Channel 1 and Channel 2 A. INPUT B. LOAD C. OUTPUT Special considerations for dual output circuits If both channels are connected to output circuits, it is very important that the CMN terminal of each circuit be at the same voltage.
  • Page 28 A. LOAD B. OUTPUT If two output circuits are connected to a single Rosemount 702 Transmitter with a single power supply, both CH + and CMN terminals must be connected to each output circuit. The negative power supply wires must be at the same voltage and connected to both CMN terminals.
  • Page 29 April 2018 Quick Start Guide Switching greater currents or voltages It is important to note that the maximum output switching capacity is 26 volts DC and 100 milliamps. If a greater voltage or current is to be switched, an interposing relay circuit can be used. Figure 5‐11 shows an example of a circuit to switch higher currents or voltages.
  • Page 30 Cyclops Plunger Arrival Sensor Manual. 5.8.2 Latching feature The Rosemount 702 has a latching feature that, when enabled, allows detection of momentary state changes to be held for a configurable latch period. The latching feature can be configured to detect either high or low state changes.
  • Page 31 April 2018 Quick Start Guide Short events (less than latch hold time) of the measured value will be latched to the reported value for the duration of latch hold time. Figure 5-14: Latch Time Short Events A. Measured B. Reported The start of the ltach hold timer begins when the measured signal first transitions to active state.
  • Page 32 When state latching is enabled, the discrete variable reported to the system will represent the latched value which may not be the actual state value measured by the Rosemount 702 Transmitter WARNING! Ensure that the state latch time value is long enough for the value to be reported throughout the entire system to guarantee the state transition is not missed.
  • Page 33 April 2018 Quick Start Guide Leak sensors, liquid hydrocarbon detection, measurement option code 61 5.9.1 Terminal block connections The Liquid Hydrocarbon Detection configuration is intended for use with the ® ® Tyco TraceTek Fast Fuel Sensor, or TraceTek sensing cable. Figure 5-18: Fuel Sensor Terminal Figure 5-19:...
  • Page 34 All part numbers associated with the fuel sensor cable wiring refer to products sold by Tyco Thermo Controls, LLC. The Rosemount 702 Wireless Discrete Transmitter can support up to 3 Fast Fuel sensors. These Fast Fuel sensors are connected using TraceTek Modular...
  • Page 35 Tyco TraceTek sensors must be installed as per manufacturer recommendations. • Do not run the Rosemount 702 Transmitter for long periods (more than two weeks) with a Tyco fuel sensor in the leak state as this will more rapidly deplete the power module.
  • Page 36 In addition, system considerations must be observed to ensure that the device is still connected to the wireless network and reporting values. On an Emerson Smart Wireless Gateway, this can be done by referring to the parameter: PV_HEALTHY. PV_HEALTHY has a “True” state when the device is on the network and its updates are current, not late or stale, and the device is functioning properly.
  • Page 37 5.10 Field Communicator use Note In order to communicate with a Field Communicator, power the Rosemount 702 Transmitter by connecting the power module. Table 5-6: Rosemount 702 Transmitter Fast Key Sequence Fast Key se- Function quence Menu items Device informa-...
  • Page 38 Quick Start Guide April 2018 Table 5-6: Rosemount 702 Transmitter Fast Key Sequence (continued) Fast Key se- Function quence Menu items Guided setup 2, 1 Join Device to Network, Configure Update Rate, Config- ure Sensor, Calibrate Sensor, Configure Display, Config-...

  • Page 39: Safety Shower And Eye Wash Monitoring

    TopWorx , an Emerson company. These kits are ordered as a part of the Rosemount 702 model code, or separately as an accessory kit, and are available for both insulated and un-insulated pipes. These kits contain the switches, brackets and cables that are necessary to install the Rosemount 702 to monitor both the safety shower and the eye wash in a single station.
  • Page 40 When the eye wash valve is activated (valve open) by pushing down on the hand paddle, the TopWorx switch is activated (closed switch) and the Rosemount 702 Transmitter senses that switch closure. This switch state is then transmitted by the Rosemount 702 Transmitter to the Gateway, which then sends that information to the control host or alert system.
  • Page 41 April 2018 Quick Start Guide Figure 6-2: TopWorx Switch Installed on an Eye Wash Station Quick Start Guide...

  • Page 42: Product Certifications

    All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 43 00702-1020; Type 4X/IP66/67 Special Conditions for Safe Use (X): 1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 44 Rosemount drawing 00702-1020; Type 4X Special Conditions for Safe Use (X): 1. The Rosemount 702 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 45 ≤ +70 °C) Ex ia IIC T4 Ga, T4(-60 °C ≤ T ≤ +40 °C) For use with Rosemount SmartPower power module part number 753-9220-0001, or for use with Emerson SmartPower option 701PBKKF. Fuel sensor terminal parameters (option Sensor terminal parameters (option code 32) code 61) = 6.51 V...
  • Page 46 The power modules have a surface resistivity greater than 1GΩ and must be properly installed I the wireless device enclosure. Care must be taken during transportation to and from the point of installation to prevent electrostatic charge build-up. Rosemount 702 Wireless Discrete Transmitter...
  • Page 47 April 2018 Quick Start Guide 3. The Rosemount 702 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 area.
  • Page 48 , BT = 650 MBT = 180 MBT = 216 HΦ = 216 HΦ = 10 HΦ = 23.78 мкΦ = 23.78 мкΦ O IIC O IIC = 549.78 мкΦ = 549.78 мкΦ O IIB O IIB Rosemount 702 Wireless Discrete Transmitter...
  • Page 49 April 2018 Quick Start Guide Terminal parameters (option code 42) Fuel sensor terminal Sensor terminal parameters parameters (option (option code 32) Sensor Switch code 61) = 1000 мкΦ COIIA = 1000 мкΦ O IIA = 200 MГH = 200 MГH O IIC O IIC = 800 MГH...
  • Page 50 Quick Start Guide April 2018 7.14 EU Declaration of Conformity Figure 7-1: EU Declaration of Conformity Rosemount 702 Wireless Discrete Transmitter...
  • Page 51 April 2018 Quick Start Guide Quick Start Guide...
  • Page 52 Quick Start Guide April 2018 Rosemount 702 Wireless Discrete Transmitter...
  • Page 53 April 2018 Quick Start Guide 7.15 China RoHS Rosemount 702 China RoHS List of Parts with China RoHS Concentration above MCVs Rosemount 702 / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg)
  • Page 54 Quick Start Guide April 2018 Rosemount 702 Wireless Discrete Transmitter...
  • Page 55 April 2018 Quick Start Guide Quick Start Guide...
  • Page 56 Emerson Automation Solutions Emerson Terms and Conditions of Sale are available Emerson FZE P.O. Box 17033 upon request. The Emerson logo is a trademark and Jebel Ali Free Zone - South 2 service mark of Emerson Electric Co. Rosemount is Dubai, United Arab Emirates mark of one of the Emerson family of companies.
