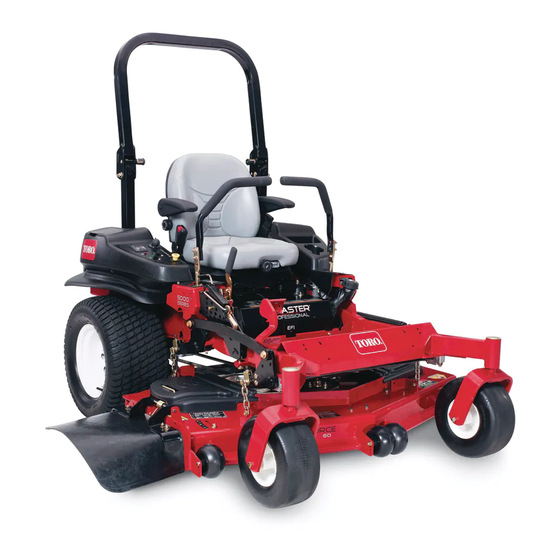

Toro Z Master Professional 7000 Series Operator's Manual

Riding mower with 132cm or 152cm turbo force mower
Hide thumbs Also See for Z Master Professional 7000 Series:
Table of Contents

Advertisement

Quick Links

Register at www.Toro.com.
Original Instructions (EN)
Z Master
®
Series Riding Mower
With 132cm or 152cm TURBO FORCE
Mower
Model No. 74264TE—Serial No. 402080000 and Up
Model No. 74265TE—Serial No. 402000000 and Up
Model No. 74279TE—Serial No. 402000000 and Up
Form No. 3417-850 Rev B
Professional 7000
®
*3417-850* B

Advertisement

Table of Contents
loading

Related Manuals for Toro Z Master Professional 7000 Series

Summary of Contents for Toro Z Master Professional 7000 Series

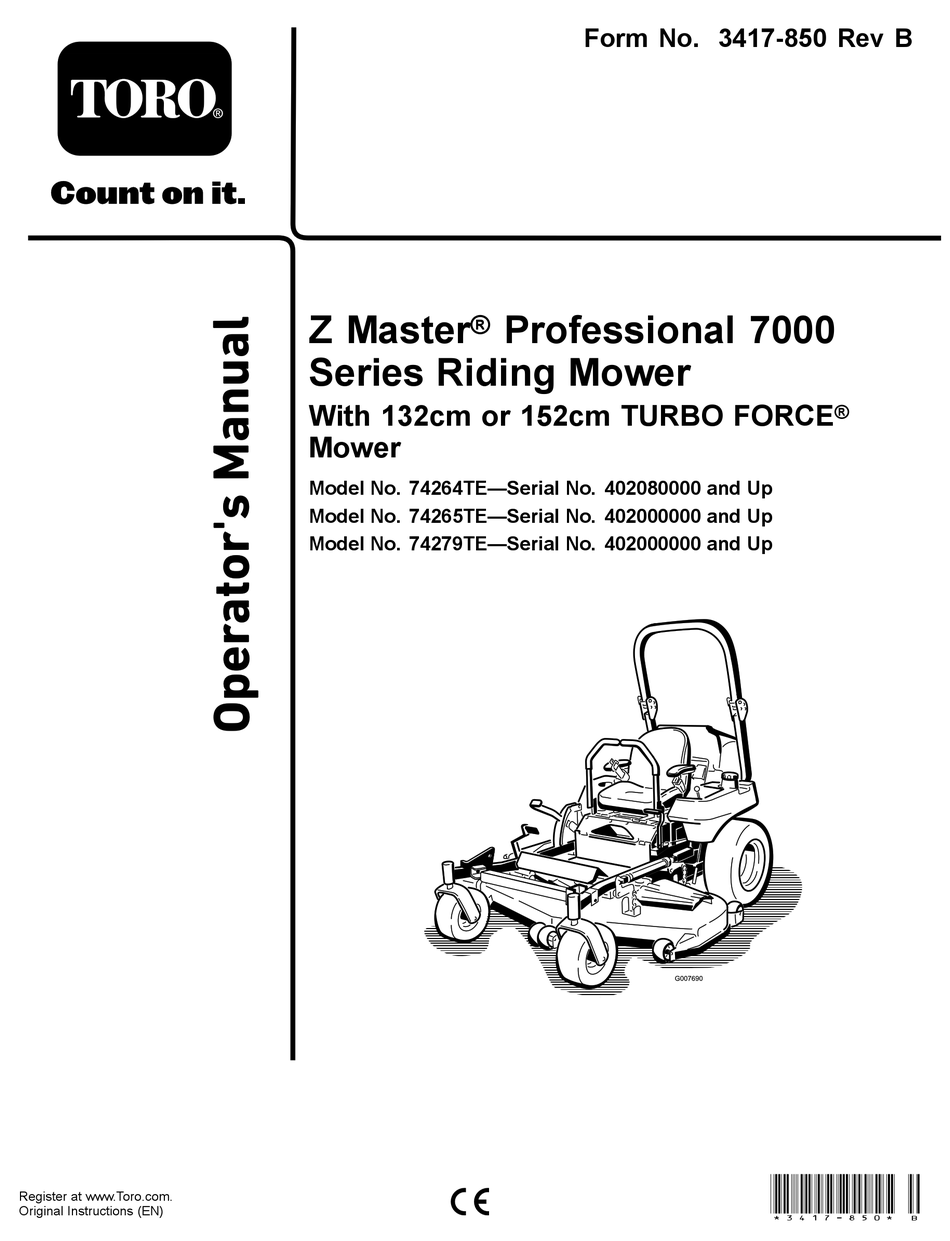

  • Page 1 Series Riding Mower With 132cm or 152cm TURBO FORCE ® Mower Model No. 74264TE—Serial No. 402080000 and Up Model No. 74265TE—Serial No. 402000000 and Up Model No. 74279TE—Serial No. 402000000 and Up *3417-850* B Register at www.Toro.com. Original Instructions (EN)
