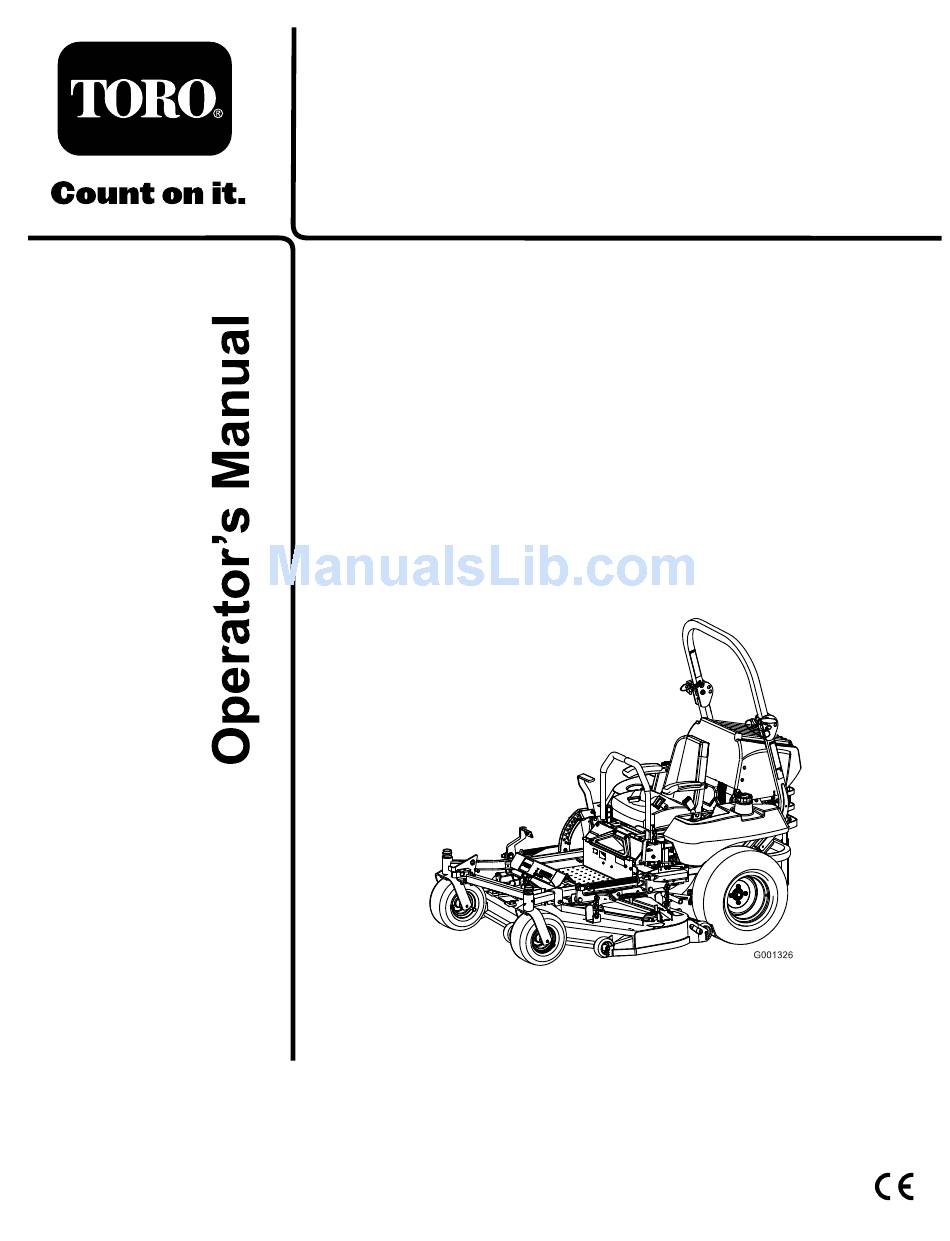

- Page 1 Form No. 3359-125 Rev B Z580-D Z Master ® with 52in or 60in TURBO FORCE Side ® Discharge Mower Model No. 74264TE—Serial No. 280000001 and Up Model No. 74265TE—Serial No. 280000001 and Up Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
Whenever you need service, genuine Toro parts, or Sound Pressure............. 5 additional information, contact an Authorized Service Sound Power ............5 Dealer or Toro Customer Service and have the model Vibration.............. 5 and serial numbers of your product ready. Figure 1 Slope Chart ............6 identifies the location of the model and serial numbers Safety and Instructional Decals ...... -
Page 3: Safety
Safety Servicing the Engine Oil ........33 Fuel System Maintenance ........36 Servicing the Fuel Filter ........36 This machine meets or exceeds European Standards in Servicing the Fuel Tank ........36 effect at the time of production. However, improper Electrical System Maintenance........ -
Page 4: Maintenance And Storage
Preparation – - Limit loads to those you can safely control. • While mowing, always wear substantial footwear and – - Do not turn sharply. Use care when reversing. long trousers. Do not operate the equipment when • Watch out for traffic when crossing or near roadways. barefoot or wearing open sandals. -
Page 5: Toro Riding Mower Safety
The following list contains safety information specific to slope. If tires lose traction, disengage the blades and Toro products or other safety information that you must proceed slowly off the slope. know that is not included in the CEN standard. -
Page 6: Slope Chart
Slope Chart... -
Page 7: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 98-1977 1. Entanglement hazard, belt—stay away from moving parts. 58-6520 1. - Page 8 107-2131 1. Hydraulic oil level 2. Warning—do not touch the hot surface. 104-2449 107-1866 1. Sliding and loss of control hazard and tipping hazard, drop-offs—do not operate the machine near drop-offs, slopes greater than 15 degrees, or water; keep a safe distance from drop-offs;...
- Page 9 107-3968 1. Disengage 3. Parking brake 2. Engage 107-3969 1. Warning—read the Operator’s Manual. 107-3961 2. Crushing hazard, mower—engage the parking brake, stop the engine, and remove the ignition key before working 1. Height of cut in millimeters under the mower. 107-7719 1.
- Page 10 110-3842 108-5957 108-5981 110-3851 1. Remove the ignition key and read the instructions before servicing or performing maintenance. 110-2067 110-3852 1. Remove the ignition key 2. Continuous tone signals and read the instructions the user that engine is before servicing or overheating.
- Page 11 110-3853 1. Cutting/dismemberment 2. Remove the ignition key and read the instructions hazard, fan and entanglement hazard, before servicing or 112-8319 belt. performing maintenance. 110-0305 114-9600 1. Read the Operator’s Manual. Manufacturer’s Mark 1. Indicates the blade is identified as a part from the original machine manufacturer.
- Page 12 107-3963 3. Thrown object 1. Cutting/dismemberment 2. Cutting/dismemberment 4. Before starting the engine, hazard, mower blade—do hazard of hand or foot, hazard—keep bystanders clean grass and debris from not carry passengers and mower blade—remove a safe distance from the the mower belt and pulleys, machine and keep the keep bystanders away.
-
Page 13: Product Overview
110-0820 1. Fast 5. Warning—read the Operator’s Manual. 2. Slow 6. Poison and caustic liquid/chemical burn hazard—keep children a safe distance from the battery. 3. Neutral 7. Explosion hazard—no fire, open flames, or smoking; avoid sparks. 4. Reverse 8. To unlock the traction drive, turn the by-pass valve 1 complete revolution counterclockwise using a 5/8 inch or 16 mm wrench. -
Page 14: Operation
Temperature Light Operation The temperature light comes on when the engine is over Note: Determine the left and right sides of the heating (Figure 4). machine from the normal operating position. Audible Alarm Adding Fuel This machine has an audible alarm that alerts the user The engine runs on clean, fresh diesel fuel with to turn off the engine or engine damage can occur from a minimum octane rating of 40. -
Page 15: Biodiesel Ready
• The biodiesel portion of the fuel meet specification ASTM D6751 or EN14214. In certain conditions, fuel is extremely • The blended fuel composition should meet ASTM flammable and highly explosive. A fire or D975 or EN590. explosion from fuel can burn you and others •... -
Page 16: Using The Rollover Protection System (Rops)
Close the fuel selector valve before transporting or storing machine. There is no rollover protection when the roll bar is in the down position. • Lower the roll bar only when absolutely necessary. • Do not wear the seat belt when the roll bar is in the down position. -
Page 17: Think Safety First
Important: Always use the seat belt with the roll bar in the raised position. Operating on wet grass or steep slopes can cause sliding and loss of control. Wheels dropping over edges can cause rollovers, which may result in serious injury, death or drowning. -
Page 18: Operating The Parking Brake
This machine produces sound levels in excess of 85 dBA at the operators ear and can cause hearing loss through extended periods of exposure. Wear hearing protection when operating this machine. Wear protective equipment for your eyes, ears, feet, and head when using this machine. -
Page 19: Starting The Engine In Cold Weather
Figure 11 Figure 13 1. Hour meter 6. Throttle control 2. Ignition switch 7. PTO Switch 1. Throttle—fast 2. Throttle—slow 3. Glow plug switch 8. Audible alarm 4. Glow plug light 9. Fuel selector valve 5. Engine Temperature light Starting the Engine in Cold Weather (Below 23°F or -5°C) 9. -
Page 20: Operating The Power Take Off (Pto)
4. Turn the ignition key to the off position (Figure 12). Wait for all moving parts to stop before leaving the operating position. 5. Remove the key to prevent possibility of someone accidentally starting the machine before transporting or storing machine. 6. -
Page 21: Driving Forward Or Backward
Testing the Safety Interlock System 2. Move the levers to the center, un-locked position. 3. To go forward, slowly push the motion control Test the safety interlock system before you use the levers forward (Figure 15). machine each time. If the safety system does not operate as described below, have an Authorized Service Note: The engine will kill if the traction control Dealer repair the safety system immediately. -
Page 22: Stopping The Machine
To turn, release pressure on the motion control lever toward the direction you want to turn (Figure 15). To stop, push the motion control levers to the neutral position. Stopping the Machine To stop the machine, move the traction control levers to neutral and move to locked position, disengage the power take off (PTO), and turn the ignition key to off. -
Page 23: Adjusting The Flow Baffle
Adjusting the Flow Baffle The mower discharge flow can be adjusted for different types of mowing conditions. Position the cam locks and baffle to give the best quality of cut. 1. Disengage the PTO, move the motion control levers to the neutral locked position and set the parking brake. -
Page 24: Positioning The Seat
• Use in tall, dense grass mowing conditions. • Use in wet conditions. • Lowers the engine power consumption. • Allows increased ground speed in heavy conditions. • This position is similar to the benefits of the Toro SFS mower. Figure 24 1. Seat suspension knob... -
Page 25: Unlatching The Seat
Changing the Back Position Pushing the Machine by Hand The back of the seat can be adjusted to provide a Important: Always push the machine by hand. comfortable ride. Position the back of the seat where it Never tow the machine because hydraulic damage is most comfortable. -
Page 26: Transporting Machines
Loading Machines Use extreme caution when loading units on trailers or Without the grass deflector, discharge cover, trucks. One full width ramp that is wide enough to or complete grass catcher assembly mounted extend beyond the rear tires is recommended instead of in place, you and others are exposed to blade individual ramps for each side of the unit (Figure 28). -
Page 27: Operating Tips
Mowing Direction Alternate mowing direction to keep the grass standing straight. This also helps disperse clippings which enhances decomposition and fertilization. Mow at Correct Intervals Normally, mow every four days. But remember, grass grows at different rates at different times. So to maintain the same cutting height, which is a good practice, mow more often in early spring. - Page 28 Check the cutter blades daily for sharpness, and for any wear or damage. File down any nicks and sharpen the blades as necessary. If a blade is damaged or worn, replace it immediately with a genuine TORO replacement blade.
-
Page 29: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the hydraulic fluid level. After the first 8 hours • Change the hydraulic filter. After the first 25 hours • Change the engine oil. After the first 50 hours •... -
Page 30: Lubrication
If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the ignition and disconnect the wire from the spark plug(s) before you do any maintenance. -
Page 31: Greasing The Mower Deck And Belt Idlers
Greasing the Mower Deck and Belt Idlers Service Interval: Every 25 hours—Grease the mower deck and spindles. Every 25 hours—Grease the mower belt idler arm. Every 25 hours—Grease the pump belt idler arm. Every 25 hours—Grease the drive belt idler arm. Grease with No. -
Page 32: Engine Maintenance
Engine Maintenance Servicing the Air Cleaner Note: Check the filters more frequently if operating conditions are extremely dusty or sandy. Removing the Air Filter Service Interval: Every 250 hours 1. Disengage the PTO, move the motion control levers to the neutral locked position and set the parking brake. -
Page 33: Servicing The Engine Oil
Checking the Engine Oil Level Service Interval: Before each use or daily Note: Check the oil when the engine is cold. 1. Disengage the PTO, move the motion control levers to the neutral locked position and set the parking brake. 2. - Page 34 Every 100 hours 1. Start the engine and let it run for five minutes. This warms the oil so it drains better. 2. Park the machine on a level surface. 3. Disengage the PTO, move the motion control levers to the neutral locked position and set the parking brake.
-
Page 35: Changing The Engine Oil Filter
Changing the Engine Oil Filter Service Interval: After the first 50 hours Every 200 hours 1. Drain the oil from the engine; refer to Changing the Engine Oil. Place a drip pan beneath the oil drip tray to receive oil from the oil filter and oil passages in the engine. 2. -
Page 36: Fuel System Maintenance
Fuel System Maintenance Servicing the Fuel Filter Replacing the Fuel Filter Service Interval: Every 400 hours or yearly, whichever Figure 42 occurs first. 3. Adapter 1. Oil filter Replace the fuel filter more frequently under extremely 2. Gasket dusty or dirty conditions. Ensure that an Authorized Service Dealer replaces the fuel filter and any components for the fuel system. -
Page 37: Electrical System Maintenance
Electrical System Maintenance Incorrect battery cable routing could damage the machine and cables causing sparks. Sparks can cause the battery gasses to explode, Servicing the Battery resulting in personal injury. • Always Disconnect the negative (black) Warning battery cable before disconnecting the positive (red) cable. -
Page 38: Servicing The Fuses
Important: Always keep the battery fully charged (1.265 specific gravity). This is especially important to prevent battery damage when the temperature is below 32°F (0°C). 1. Make sure the filler caps are installed in battery. Charge battery for 10 to 15 minutes at 25 to 30 amps or 30 minutes at 10 amps. -
Page 39: Drive System Maintenance
Drive System Maintenance Adjusting the Tracking The machine has a knob for adjusting the tracking located under the seat. Important: Adjust the handle neutral and hydraulic pump neutral before adjusting the tracking. Refer to Adjusting the Handle Neutral in Controls System Maintenance , page 48 and Adjusting the Hydraulic Pump Neutral in Hydraulic System Maintenance , page 49. -
Page 40: Checking The Tire Pressure
Checking the Wheel Hub Slotted Nut Service Interval: Every 100 hours The slotted nut needs to be torqued to 125 ft-lb (170 N•m). 1. Disengage the PTO, move the motion control levers to the neutral locked position and set the parking brake. -
Page 41: Servicing The Gear Box
3. Remove the dust cap from caster and tighten lock nut (Figure 50). 4. Tighten the locknut until the spring washers are flat and then back off a 1/4 turn to properly set the pre-load on the bearings (Figure 50). Important: Make sure spring washers are installed correctly as shown in Figure 50. - Page 42 10. Tighten the lock nuts until there is slight binding on the feeler gauge but it can be moved easily within the air gap (Figure 54). 11. Repeat this for the remaining slots. 12. Check each slot again and make slight adjustments until the feeler gauge between the rotor and armature with very slight contact between them.
-
Page 43: Cooling System Maintenance
Cooling System 1. Position the machine on a level surface, stop the engine, and set the parking brake. Maintenance 2. Unlatch the seat and tilt the seat up. 3. With the engine cool, check the overflow bottle level. Servicing the Cooling System The fluid needs to be up to the bump on the outside of the overflow bottle (Figure 55). -
Page 44: Brake Maintenance
Brake Maintenance Adjusting the Parking Brake Service Interval: Every 25 hours Every 200 hours 1. Engage the parking brake, lever up. 2. Measure the length of the spring. Measurement should be 2-1/2 inch (64 mm) between the washers (Figure 57). 3. -
Page 45: Belt Maintenance
Belt Maintenance Inspecting the Belts Service Interval: Every 100 hours Check belts for cracks, frayed edges, burn marks, or any other damage. Replace damaged belts. Replacing the Mower Belt Squealing when the belt is rotating, blades slipping when cutting grass, frayed belt edges, burn marks and cracks are signs of a worn mower belt. -
Page 46: Replacing The Pump Drive Belt
Replacing the Pump Drive Belt Service Interval: Every 50 hours—Check the pump drive belt. Note: Remove the PTO drive belt first if the pump drive belt needs to be replaced. 1. Tilt the seat forward and remove the front engine panel. - Page 47 12. Install the oil cooler shield and engine straps to the rear frame with the 4 bolts previously removed (Figure 63). 13. Install the engine straps to the side of the machine (Figure 63). 14. Tighten the bottom bolt and install the upper bolt holding the alternator and cover (Figure 65).
-
Page 48: Controls System Maintenance
Controls System 9. Apply slight rearward pressure on the motion control lever, turn the head of the adjustment bolt Maintenance in the appropriate direction until the control lever is centered in the neutral lock position (Figure 67). Adjusting the Control Handle Note: Keeping rearward pressure on the lever will keep the pin at the end of the slot and allow the Neutral Position... -
Page 49: Hydraulic System Maintenance
Hydraulic System Maintenance Servicing the Hydraulic System Checking the Hydraulic Fluid Level Figure 68 Service Interval: After the first 8 hours 1. Cap 3. Cold fluid level-full Every 25 hours 2. Baffle 4. Hot fluid level-full Fluid Type: Mobil 1 15W-50 synthetic motor oil or equivalent synthetic oil. -
Page 50: Bleeding The Hydraulic System
2. Stop the engine, remove the key, and wait for all 10. Start the engine and let it run for about two minutes moving parts to stop before leaving the operating to purge air from the system. Stop the engine and position. -
Page 51: Setting The Hydraulic Pump Neutral Position
1. Raise the frame and block up the machine so drive wheels can rotate freely. Hydraulic fluid escaping under pressure can 2. Disconnect the electrical connector from the seat penetrate skin and cause injury. safety switch. Temporarily install a jumper wire across terminals in the wiring harness connector. - Page 52 Figure 72 Figure 71 1. Double nuts 4. Locknut 2. Pump rod 5. Ball joint 1. Tracking knob 4. Turn this way to track right 3. Adjustment bolt 6. Pumps 2. Hydraulic tank 5. Turn this way to track left 3.
-
Page 53: Mower Deck Maintenance
Mower Deck 2. Measure the right blade at the B location, from a level surface to the cutting edge of the blade tip Maintenance (Figure 73). 3. Record this measurement. This measurement needs to be 3-1/8 to 3-1/4 inches. Leveling the Mower at Three 4. -
Page 54: Servicing The Cutting Blades
If a blade is damaged or worn, 10. Check to make sure there is equal tension on the replace it immediately with a genuine Toro replacement chains and adjust again if needed. blade. For convenient sharpening and replacement, you may want to keep extra blades on hand. -
Page 55: Inspecting The Blades
Toro replacement blades. 2. Stop the engine, remove the key, and wait for all Replacement blades made by other manufacturers may moving parts to stop before leaving the operating result in non-conformance with safety standards. -
Page 56: Replacing The Grass Deflector
Installing the Blades 1. Install the blade onto the spindle shaft (Figure 81). Contact with a sharp blade can cause serious Important: The curved part of the blade must injury. be pointing upward toward the inside of the mower to ensure proper cutting. Wear gloves or wrap sharp edges of the blade with a rag. -
Page 57: Cleaning
Cleaning Important: The grass deflector must be able to lower down into position. Lift the deflector up to test that it lowers into the full down position. Cleaning Under the Mower Service Interval: Before each use or daily Remove the grass buildup under the mower daily. 1. -
Page 58: Storage
Storage Note: A fuel stabilizer/conditioner is most effective when mixed with fresh fuel and used at all times. Cleaning and Storage B. Run the engine to distribute conditioned fuel 1. Disengage the power take off (PTO), set the parking through the fuel system (5 minutes). brake, and turn the ignition key to Off. -
Page 59: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The starter does not crank. 1. The blade control (PTO) is engaged. 1. Move the blade control (PTO) to the disengaged position. 2. The parking brake is not on. 2. Set the parking brake. 3. - Page 60 Problem Possible Cause Corrective Action Uneven cutting height. 1. The cutting blade(s) is/are not sharp. 1. Sharpen the blade(s). 2. The cutting blade(s) is/are bent. 2. Install new cutting blade(s). 3. The mower deck is not level. 3. Level the mower deck from side-to-side and front-to-rear.
-
Page 61: Schematics
Schematics Wire Diagram (Rev. A) - Page 62 Notes:...
- Page 63 Spypros Stavrinides Limited Cyprus 357 22 434131 Surge Systems India Limited India 91 1 292299901 Hungary T-Markt Logistics Ltd 36 26 525 500 Toro Australia Australia 61 3 9580 7355 Toro Europe BVBA 32 14 562 960 Belgium 374-0102 Rev A...
- Page 64 Instructions for Obtaining Warranty Service The Toro® Company and its afliate, Toro Warranty Company, If you think that your Toro Product contains a defect in materials pursuant to an agreement between them, jointly promises to the or workmanship, follow this procedure: original purchaser* to repair any Toro Product used for normal 1.
