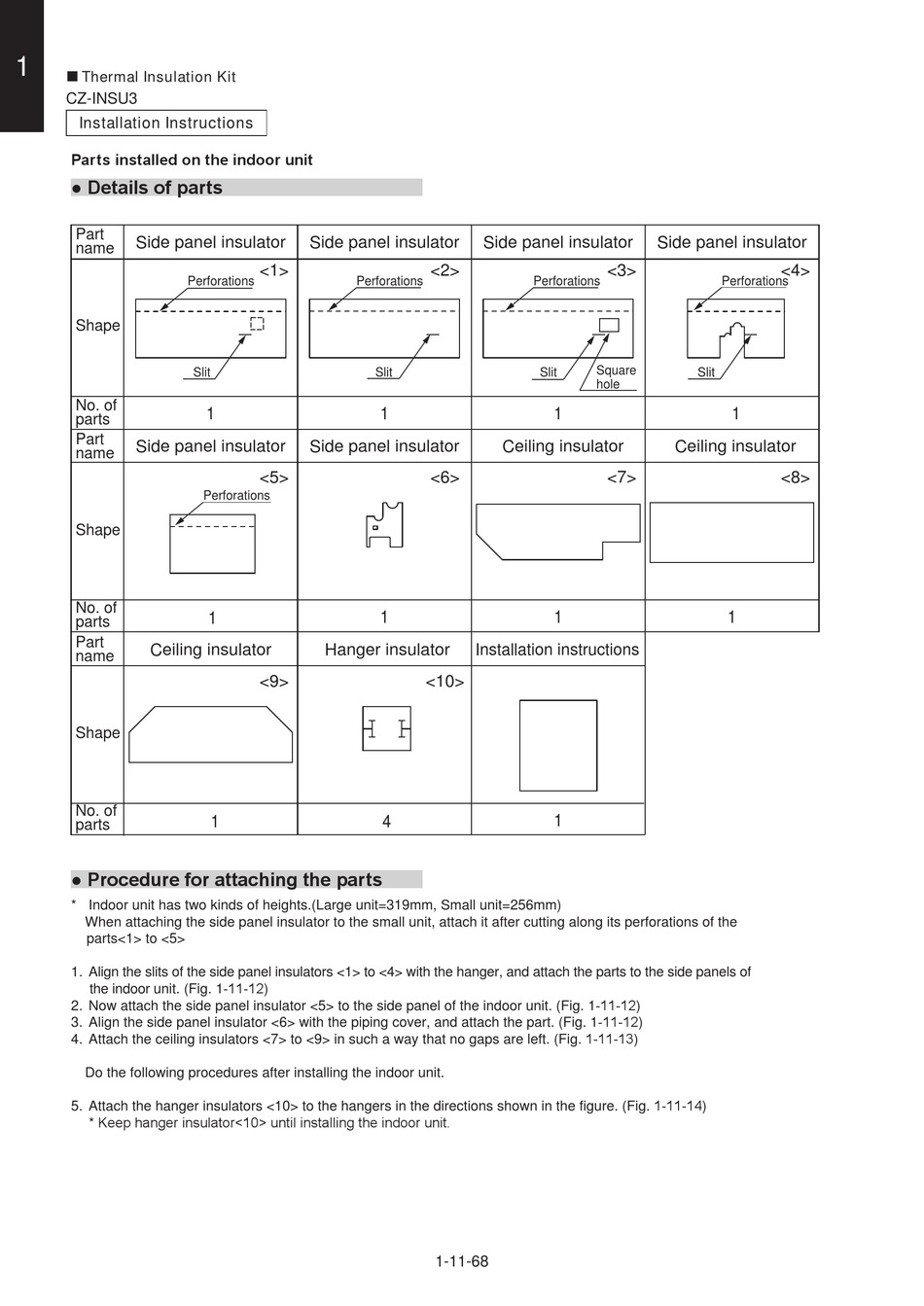

Thermal Insulation Kit

CZ-INSU3
Installation Instructions
Parts installed on the indoor unit
● Details of parts
Part
Side panel insulator
name
Perforations
Shape
No. of
parts
Part
Side panel insulator
name
Shape
No. of
parts
Part
Ceiling insulator
name
Shape
No. of
parts
● Procedure for attaching the parts
* Indoor unit has two kinds of heights.(Large unit=319mm, Small unit=256mm)
When attaching the side panel insulator to the small unit, attach it after cutting along its perforations of the
parts<1> to <5>
1. Align the slits of the side panel insulators <1> to <4> with the hanger, and attach the parts to the side panels of
the indoor unit. (Fig. 1-11-12)
2. Now attach the side panel insulator <5> to the side panel of the indoor unit. (Fig. 1-11-12)
3. Align the side panel insulator <6> with the piping cover, and attach the part. (Fig. 1-11-12)
4. Attach the ceiling insulators <7> to <9> in such a way that no gaps are left. (Fig. 1-11-13)
Do the following procedures after installing the indoor unit.
5. Attach the hanger insulators <10> to the hangers in the directions shown in the figure. (Fig. 1-11-14)
* Keep hanger insulator<10> until installing the indoor unit.
Side panel insulator
<1>
Perforations
Slit
1
Side panel insulator
<5>
Perforations
1
Hanger insulator
<9>
1
Side panel insulator
<2>
Perforations
Slit Slit
1
Ceiling insulator
<6>
1
Installation instructions
<10>
4
1-11-68
Side panel insulator
<3>
Perforations
Square
Slit
hole
1
Ceiling insulator
<7>
1 1
1
<4>
1
<8>
