Invacare® Perfecto₂™ Oxygen Concentrator

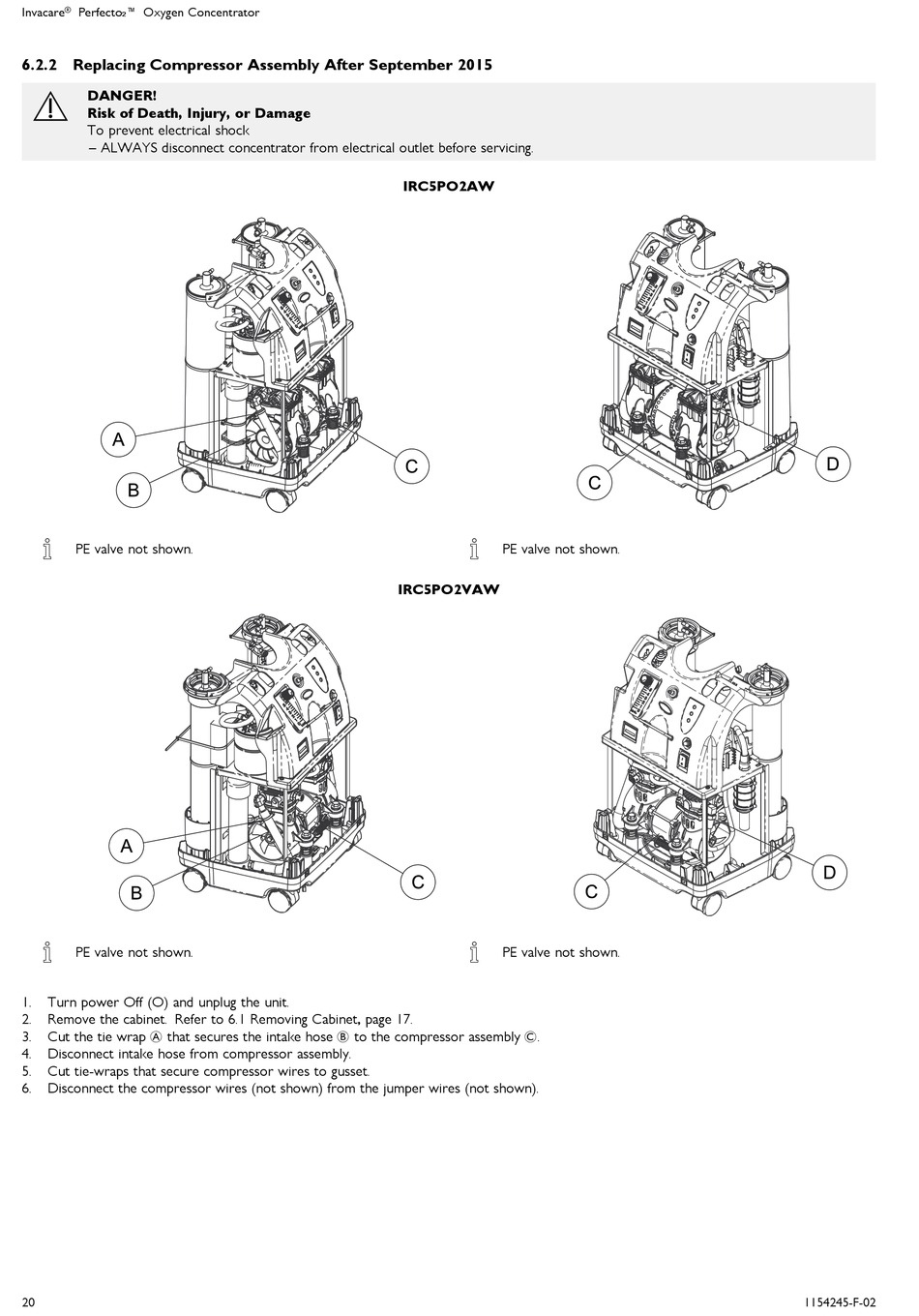

6.2.2 Replacing Compressor Assembly After September 2015
DANGER!
Risk of Death, Injury, or Damage
To prevent electrical shock
– ALWAYS disconnect concentrator from electrical outlet before servicing.
PE valve not shown.
PE valve not shown.
1.
Turn power Off (O) and unplug the unit.
2.
Remove the cabinet. Refer to 6.1 Removing Cabinet, page 17.
Cut the tie wrap A that secures the intake hose B to the compressor assembly C.
3.
4.
Disconnect intake hose from compressor assembly.
5.
Cut tie-wraps that secure compressor wires to gusset.
6.
Disconnect the compressor wires (not shown) from the jumper wires (not shown).
20
IRC5PO2AW
PE valve not shown.
IRC5PO2VAW
PE valve not shown.
1154245-F-02
