Disconnect brass nut F from compressor.
8.

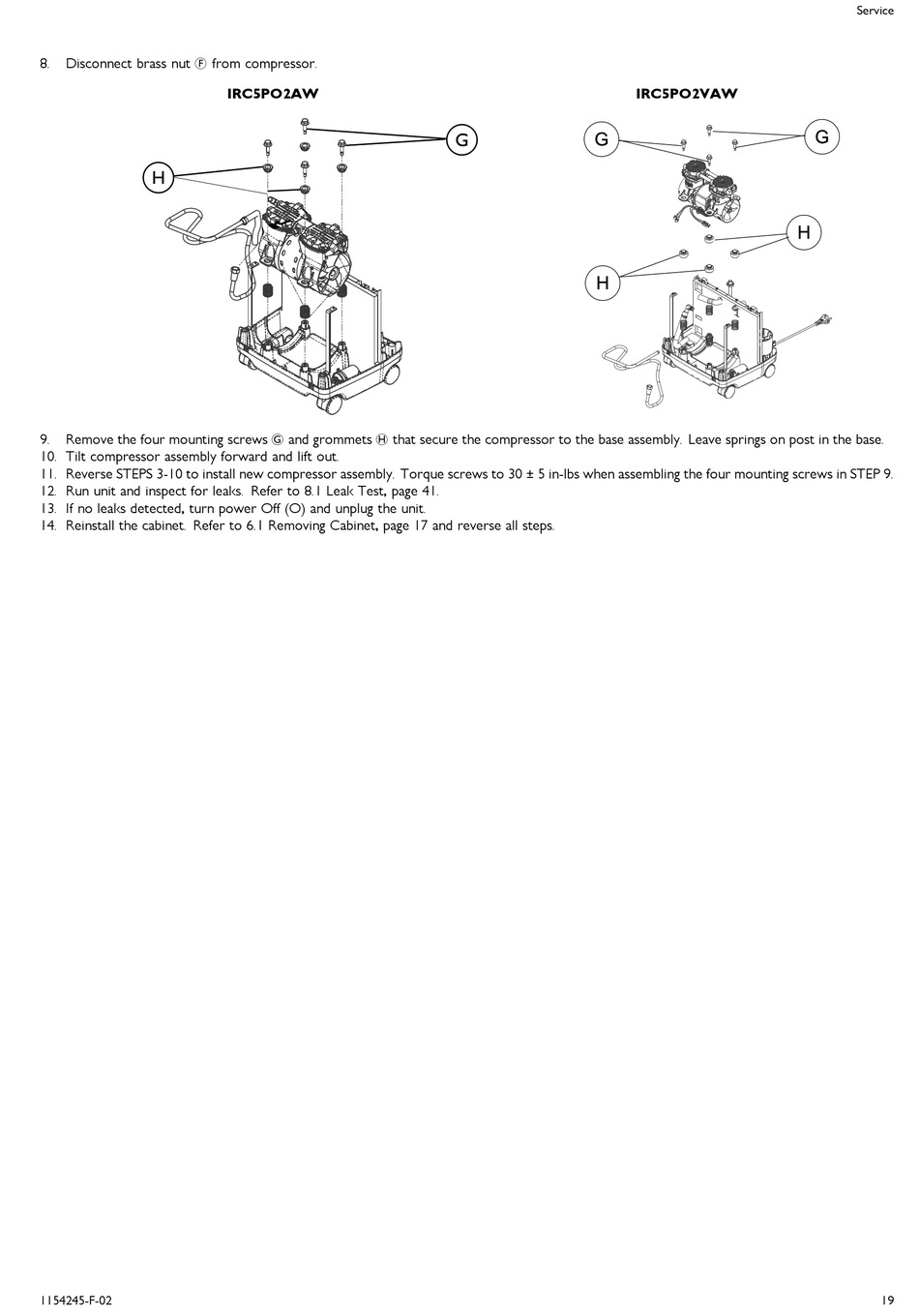

Remove the four mounting screws G and grommets H that secure the compressor to the base assembly. Leave springs on post in the base.
9.
10. Tilt compressor assembly forward and lift out.
11. Reverse STEPS 3-10 to install new compressor assembly. Torque screws to 30 ± 5 in-lbs when assembling the four mounting screws in STEP 9.
12. Run unit and inspect for leaks. Refer to 8.1 Leak Test, page 41.
13. If no leaks detected, turn power Off (O) and unplug the unit.
14. Reinstall the cabinet. Refer to 6.1 Removing Cabinet, page 17 and reverse all steps.
