Endress+Hauser Proline Promag W 500 Technical Information

Endress+Hauser Proline Promag W 500 Technical Information

Electromagnetic flowmeter
Hide thumbs Also See for Proline Promag W 500:
Table of Contents

Advertisement

Quick Links

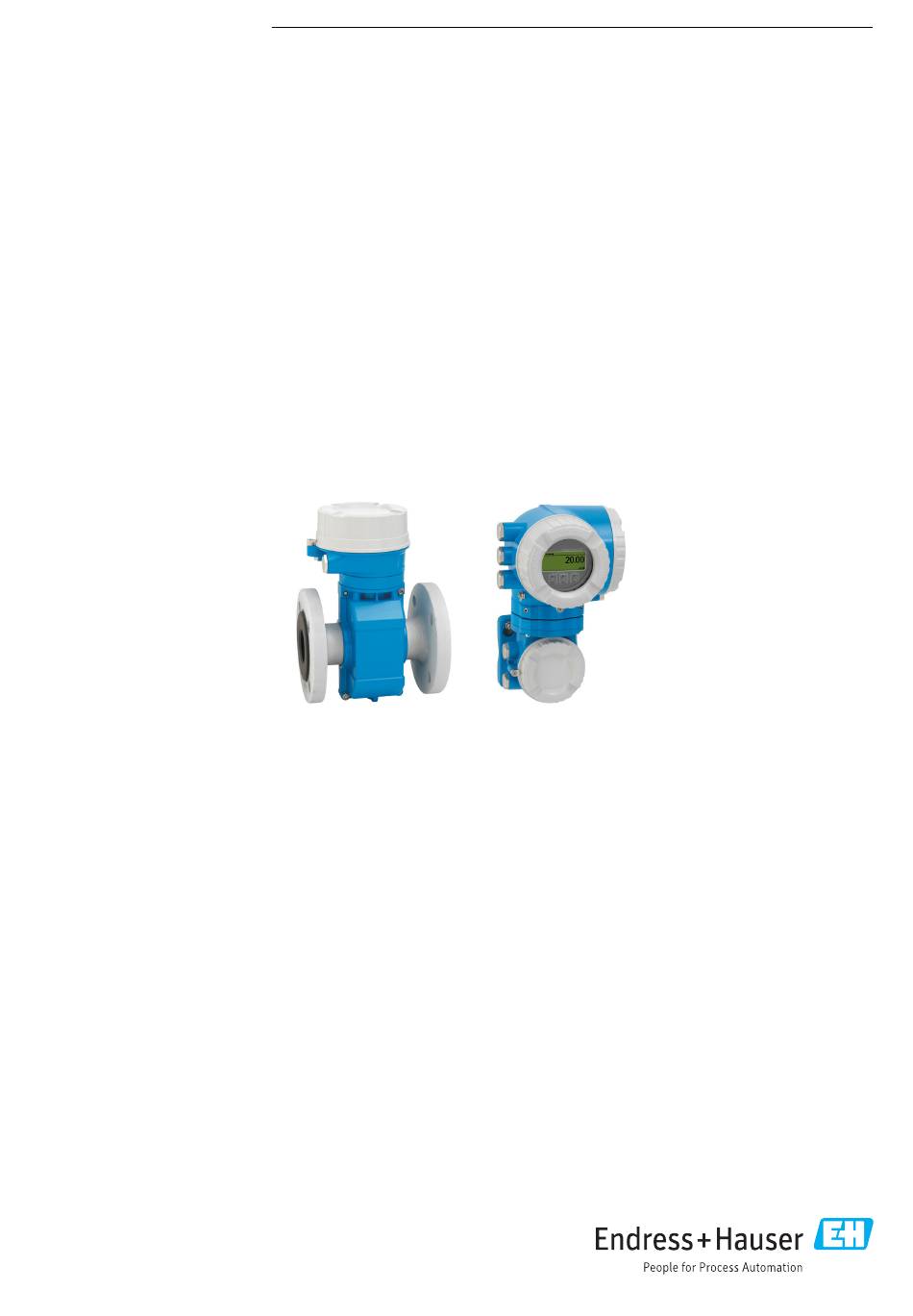

TI01227D/06/EN/04.18
71402619
2018-06-01
The remote version with up to 3 I/Os and a sensor with EN ISO 12944
corrosion protection
Application
• The bidirectional measuring principle is virtually
independent of pressure, density, temperature and viscosity
• The specialist in the water and wastewater industry for the
most demanding applications
Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Remote version with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Products
Technical Information
Proline Promag W 500
Electromagnetic flowmeter
Solutions
Your benefits
• For direct underground installation or permanent
underwater use
• Secure, reliable long-term operation – robust and completely
welded sensor
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag W 500

Summary of Contents for Endress+Hauser Proline Promag W 500

  • Page 1 Solutions Services TI01227D/06/EN/04.18 71402619 2018-06-01 Technical Information Proline Promag W 500 Electromagnetic flowmeter The remote version with up to 3 I/Os and a sensor with EN ISO 12944 corrosion protection Application Your benefits • The bidirectional measuring principle is virtually •...

  • Page 2: Table Of Contents

    Proline Promag W 500 Table of contents About this document ......Vibration resistance ......53 Shock resistance .
  • Page 3 Proline Promag W 500 Accessories ......110 Device-specific accessories ..... . 110 Communication-specific accessories .

  • Page 4: About This Document

    Proline Promag W 500 About this document Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Promag W 500 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design...

  • Page 6: Measuring System

    Proline Promag W 500 Measuring system The measuring system consists of a transmitter and a sensor. The transmitter and sensor are mounted in physically separate locations. They are interconnected by connecting cables. Transmitter For use in applications required to meet special requirements due to ambient or operating conditions.
  • Page 7 Proline Promag W 500 Sensor connection housing Different versions of the connection housing are available. Order code for "Sensor connection housing", option A, "Aluminum, coated": Aluminum, AlSi10Mg, coated Order code for "Sensor connection housing", option D, "Polycarbonate": Polycarbonate Sensor Promag W •...

  • Page 8: Equipment Architecture

    Proline Promag W 500 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Hazardous area: Zone 2; Class I, Division 2 Hazardous area: Zone 1;...
  • Page 9 Proline Promag W 500 Protecting access via hardware write protection Write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on the motherboard).

  • Page 10: Input

    Proline Promag W 500 The device can communicate with OPC UA clients using the "OPC UA Server" application package. The OPC UA server integrated in the device can be accessed via the WLAN access point using the WLAN interface - which can be ordered as an optional extra - or the service interface (CDI- RJ45) via Ethernet network.
  • Page 11 Proline Promag W 500 Flow characteristic values in SI units: DN 150 to 2000 (6 to 78") Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s)

  • Page 12: Operable Flow Range

    Proline Promag W 500 Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)
  • Page 13 Proline Promag W 500 External measured values To increase the accuracy of certain measured variables or to calculate the corrected volume flow, the automation system can continuously write different measured values to the measuring device: • Medium temperature to increase the accuracy of the electrical conductivity (e.g. iTEMP) •...

  • Page 14: Output

    Proline Promag W 500 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 4. The table must be read vertically (↓).

  • Page 15: Output Signal

    Proline Promag W 500 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive)  Ex-i, passive Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 16 Proline Promag W 500 Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches Current output 0/4 to 20 mA Current output 0/4 to 20 mA Maximum output values 22.5 mA...
  • Page 17 Proline Promag W 500 Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active) Open-circuit voltage DC 28.8 V (active) Output frequency Adjustable: end value frequency 2 to 10 000 Hz (f = 12 500 Hz)

  • Page 18: Signal On Alarm

    Proline Promag W 500 Pulse/pause ratio Assignable measured • Volume flow variables • Mass flow • Corrected volume flow • Flow velocity • Conductivity • Corrected conductivity • Temperature • Electronic temperature Relay output Function Switch output Version Relay output, galvanically isolated...
  • Page 19 Proline Promag W 500 PROFIBUS PA Status and alarm Diagnostics in accordance with PROFIBUS PA Profile 3.02 messages Error current FDE (Fault 0 mA Disconnection Electronic) PROFIBUS DP Status and alarm Diagnostics in accordance with PROFIBUS PA Profile 3.02 messages...
  • Page 20 Proline Promag W 500 Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses Frequency output Failure mode Choose from: • Actual value • 0 Hz • Defined value (f 2 to 12 500 Hz) Switch output...

  • Page 21: Ex Connection Data

    Proline Promag W 500 Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred •...

  • Page 22: Low Flow Cut Off

    Proline Promag W 500 Intrinsically safe values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output = 30 V 4 to 20 mA HART Ex i = 100 mA = 1.25 W...
  • Page 23 Proline Promag W 500 PROFIBUS PA Manufacturer ID 0x11 Ident number 0x156C Profile version 3.02 Device description files (GSD, Information and files under: DTM, DD) • www.endress.com • www.profibus.org Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate •...
  • Page 24 Proline Promag W 500 Configuration of the device • DIP switches on the I/O electronics module address • Via operating tools (e.g. FieldCare) System integration Information regarding system integration: Operating Instructions →  113. • Cyclic data transmission • Block model •...
  • Page 25 Proline Promag W 500 Media Redundancy Protocol (MRP) Device profile Application interface identifier 0xF600 Generic device Manufacturer ID 0x11 Device type ID 0x843C Device description files (GSD, Information and files under: DTM, DD) • www.endress.com On the product page for the device: Documents/Software → Device drivers •...
  • Page 26 Proline Promag W 500 Node address Factory setting: 247 (0xF7) Supported functions The following methods are supported: • Restart • ENP Restart • Diagnostic • Set to OOS • Set to AUTO • Read trend data • Read event logbook...

  • Page 27: Power Supply

    Proline Promag W 500 Supported baud rate • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transfer mode •...

  • Page 28: Device Plugs Available

    Proline Promag W 500 PROFINET Supply voltage Input/output 1 Input/output 2 Input/output 3 1 (+) 2 (–) PROFINET 24 (+) 25 (–) 22 (+) 23 (–) (RJ45 connector) The terminal assignment depends on the specific device version ordered →  14.

  • Page 29: Pin Assignment, Device Plug

    Proline Promag W 500 Order code for "Input; output 1", option RA "PROFINET" Order code for Cable entry/connection →  32 "Electrical connection" L, N, P, U Connector M12 × 1 – 1) 2) 1) 2) 1) 2) 1) 2) Connector M12 ×...

  • Page 30: Supply Voltage

    Proline Promag W 500 PROFINET Assignment TD + RD + TD – RD – Coding Plug/socket A0032047 Socket  Recommended plug: • Binder, series 763, part no. 99 3729 810 04 • Phoenix, part no. 1543223 SACC-M12MSD-4Q • When using the device in a hazardous location, use a suitably certified plug.

  • Page 31: Power Consumption

    Proline Promag W 500 Power consumption Transmitter Max. 10 W (active power) Current consumption Transmitter • Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) Power supply failure Depending on the device version, the configuration is retained in the device memoryor in the pluggable data memory (HistoROM DAT).

  • Page 32: Electrical Connection

    Proline Promag W 500 Electrical connection Connection of the connecting cable The connecting cable is connected via terminals. E2 S2 41 42 37 36 n.c. n.c. n.c. 41 42 E1 E2 A0029145 Protective ground (PE) Cable entry for coil current cable on transmitter connection housing...
  • Page 33 Proline Promag W 500 Connecting in a ring topology Device versions with EtherNet/IP and PROFINET communication protocols can be integrated into a ring topology. The device is integrated via the terminal connection for signal transmission (output 1) and the connection to the service interface (CDI-RJ45).
  • Page 34 Proline Promag W 500 4...20 mA A0028762  3 Connection example for 4 to 20 mA HART current output (passive) Automation system with current input (e.g. PLC) Power supply Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications →...
  • Page 35 Proline Promag W 500 PROFIBUS PA A0028768  5 Connection example for PROFIBUS PA Control system (e.g. PLC) PROFIBUS PA segment coupler Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 36 Proline Promag W 500 EtherNet/IP A0028767  7 Connection example for EtherNet/IP Control system (e.g. PLC) Ethernet switch Observe cable specifications Device plug Transmitter EtherNet/IP: DLR (Device Level Ring) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  43...
  • Page 37 Proline Promag W 500 PROFINET: MRP (Media Redundancy Protocol) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  43 Connecting cable between the two transmitters Transmitter FOUNDATION Fieldbus A0028768  9 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;...
  • Page 38 Proline Promag W 500 Modbus RS485 A0028765  10 Connection example for Modbus RS485, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 39 Proline Promag W 500 Pulse/frequency output 12345 A0028761  13 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: Observe input values →  16 Switch output A0028760  14 Connection example for switch output (passive) Automation system with switch input (e.g.
  • Page 40 Proline Promag W 500 A0029279  16 Connection example for double pulse output (passive) Automation system with double pulse input (e.g. PLC) Power supply Transmitter: Observe input values →  17 Double pulse output Double pulse output (slave), phase-shifted Relay output A0028760 ...

  • Page 41: Potential Equalization

    Proline Promag W 500 Status input A0028764  19 Connection example for status input Automation system with status output (e.g. PLC) Power supply Transmitter Potential equalization Requirements Please consider the following to ensure correct measurement: • Same electrical potential for the fluid and sensor •...
  • Page 42 – If DN ≥ 350 (14"): Mount the ground cable directly on the metal transport bracket. You can order the necessary ground cable from Endress+Hauser: →  110. Plastic pipe or pipe with insulating liner This connection method also applies in situations where: •...

  • Page 43: Terminals

    Proline Promag W 500 terminals Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Cable entries • Cable gland: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) •...
  • Page 44 Proline Promag W 500 EtherNet/IP The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended. For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual.

  • Page 45: Performance Characteristics

    Proline Promag W 500 Performance characteristics Reference operating • Error limits following DIN EN 29104, in future ISO 20456 conditions • Water, typically: +15 to +45 °C (+59 to +113 °F); 0.5 to 7 bar (73 to 101 psi) • Data as indicated in the calibration protocol •...

  • Page 46: Repeatability

    Proline Promag W 500 Flat Spec flow values0.2 % Nominal diameter [mm] [in] [m/s] [ft/s] 25 to 600 1 to 24 4.92 Electrical conductivity Max. measured error not specified. Accuracy of outputs The outputs have the following base accuracy specifications.
  • Page 47 Proline Promag W 500 Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥ 2 × DN Not necessary in the case of order code for "Design", option C "Insertion length short ISO/DVGW to DN300, without inlet/outlet runs, constricted meas.tube"...

  • Page 48: Orientation

    Proline Promag W 500 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping). Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter at...

  • Page 49: Adapters

    Proline Promag W 500 ≥ 5 × DN ≥ 2 × DN A0028997  27 Order code for "Design", option A "Insertion length short, ISO/DVGW to DN400, DN450-2000 1:1" and order code for "Design", option B "Insertion length long, ISO/DVGW to DN400, DN450-2000 1:1.3"...
  • Page 50 Proline Promag W 500 [ S/cm] µ L max L max A0029158  28 Permitted length of connecting cable = permitted range Colored area = length of connecting cable in [m] ([ft]) = fluid conductivity [µS/cm] Endress+Hauser...

  • Page 51: Mounting The Transmitter Housing

    Proline Promag W 500 Mounting the transmitter Post mounting housing 20 70 … ( 0.79 to 2.75) SW 13 A0029057  29 Engineering unit mm (in) Wall mounting 18 (0.71) 10 (0.39) 20 (0.79) 100 (3.94) A0029068  30 Engineering unit mm (in)

  • Page 52: Environment

    Proline Promag W 500 A0029320  31 Engineering unit in m(ft) Replacement of cable gland on connection housing Buried applications A remote version with IP68 protection is optionally available for buried applications. The measuring device satisfies the certified corrosion protection Im1/Im2/Im3 in accordance with EN ISO 12944. It can be used directly underground without the need for additional protective measures.

  • Page 53: Storage Temperature

    Proline Promag W 500 Storage temperature The storage temperature corresponds to the operating temperature range of the transmitter and the sensor →  52. • Protect the measuring device against direct sunlight during storage in order to avoid unacceptably high surface temperatures.

  • Page 54: Conductivity

    Proline Promag W 500 Conductivity ≥ 5 μS/cm for liquids in general. Stronger filter damping is required for very low conductivity values. Proline 500 The necessary minimum conductivity also depends on the cable length →  49. Pressure-temperature The following pressure/temperature diagrams apply to all pressure-bearing parts of the device and not just the process connection.
  • Page 55 Proline Promag W 500 [psi] [bar] Class 300 Class 150 -40 -20 0 20 40 60 80 100 180 [°C] 360 [°F] A0029393-EN  34 Process connection material: carbon steel, A105/A515(70) Process connection: fixed flange according to AWWA C207 [psi]...

  • Page 56: Pressure Tightness

    Proline Promag W 500 Process connection: fixed flange according to AS 4087 [psi] [bar] PN 16 -60 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0029817-EN  37 Process connection material: carbon steel, A105/P265GH/S275JR Process connection: fixed flange according to JIS B2220...

  • Page 57: Pressure Loss

    Proline Promag W 500 Pressure loss • No pressure loss occurs if the sensor is installed in a pipe with the same nominal diameter. • Pressure losses for configurations incorporating adapters according to DIN EN 545 →  49 [psi]...

  • Page 58: Vibrations

    Proline Promag W 500 Never install the sensor on the pump suction side in order to avoid the risk of low pressure, and thus damage to the liner. Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.
  • Page 59 Proline Promag W 500 Sensor connection housing A0033784 Order code for "Sensor connection housing", option A "Aluminum, coated" [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1 149 1 024 1 149 1 024 1 192 1 065...
  • Page 60 Proline Promag W 500 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1500 1 011 1 136 2 147 2 018 1600 1 056 1 181 2 237 2 108 1650 1 093 1 218 2 311...
  • Page 61 Proline Promag W 500 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1800 1 188 1 313 2 501 2 370 2000 1 238 1 363 2 601 2 470 Depends on the liner Total length is independent of the process connections.→  65 A0033784 Order code for "Design", option A "Insertion length short"...
  • Page 62 Proline Promag W 500 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1800 1 185 1 131 2 316 2 370 2000 1 235 1 243 2 478 2 470 Depends on the liner Total length is independent of the process connections.→  65 A0033784 Order code for "Sensor option", option CB…CE "Corrosion protection"...
  • Page 63 Proline Promag W 500 A0033784 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1 137 1 024 1 137 1 024 1 181 1 065 1 333 1 218 1000 1 485 1 370 1050 1 537...
  • Page 64 Proline Promag W 500 A0033784 Order code for "Design", option A "Insertion length short" and order code for "Sensor option", option CB… CE "Corrosion protection" Option Description IP68, Type 6P, fact-potted; corrosion protection EN ISO 12944 C5-M/Im1/Im2/Im3 IP68, Type 6P, cust-potted; corrosion protection EN ISO 12944 C5-M/Im1/Im2/Im3 Buried IP68, Type 6P, fact-potted;...
  • Page 65 Proline Promag W 500 Flange connections Flange A0015621 Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 6 P245GH (1.0352): order code for "Process connection", option D1K 1.4404 (F316/F316L): order code for "Process connection", option D1S [mm]...
  • Page 66 Proline Promag W 500 Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 10 P245GH (1.0352): order code for "Process connection", option D2K 1.4404 (F316/F316L): order code for "Process connection", option D2S [mm] [mm] [mm] [mm] [mm]...
  • Page 67 Proline Promag W 500 Flange in accordance with EN 1092-1 (DIN 2501 / DIN 2512N): PN 16 P245GH (1.0352): order code for "Process connection", option D3K 1.4404 (F316/F316L): order code for "Process connection", option D3S [mm] [mm] [mm] [mm] [mm]...
  • Page 68 Proline Promag W 500 Flange according to ASME B16.5, Class 150 A 105: order code for "Process connection", option A1K 1.4404 (F316/F316L): order code for "Process connection", option A1S [mm] [mm] [mm] [mm] [mm] [mm] [mm] 79.2 4 × Ø16 12.6...
  • Page 69 Proline Promag W 500 Flange according to JIS B2220, 10K A 105/A350LF2: order code for "Process connection", option N3K 1.4404 (F316L): order code for "Process connection", option N3S [mm] [mm] [mm] [mm] [mm] [mm] [mm] 12 × Ø23 12 × Ø25 16 ×...
  • Page 70 Proline Promag W 500 Flange according to AWWA, Cl. D A 105: order code for "Process connection", option W1K [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2000 2 362 2 260.6 64 × Ø54 69.9 2 025 2 000/2 600 Surface roughness (flange): Ra 6.3 to 12.5 µm...
  • Page 71 Proline Promag W 500 Flange according to AS 4087, PN16 A 105: order code for "Process connection", option M3K [mm] [mm] [mm] [mm] [mm] [mm] [mm] 12 × Ø26 /650 16 × Ø26 /650 16 × Ø30 /780 20 × Ø30 /910 20 ×...
  • Page 72 Proline Promag W 500 External WLAN antenna mounted on device 105 (4.1) 68 (2.7) 173 (6.8) A0028923  43 Engineering unit mm (in) External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor.
  • Page 73 Proline Promag W 500 Pressure rating [mm] [mm] [mm] [mm] [mm] 77.5 87.5 87.5 94.5 115.5 131.5 154.5 186.5 206.5 DIN, PN 6 DIN, PN 10 ASME, Class 150 DIN, PN 6 DIN, PN 10 ASME, Class 150 DIN, PN 6...

  • Page 74: Dimensions In Us Units

    Proline Promag W 500 Pressure rating [mm] [mm] [mm] [mm] [mm] AWWA, Class D – 1 048 1 000 DIN, PN 6 – 1 093 1 000 DIN, PN 10 – 1 127 1 000 AS, PN 16 – 1 131...
  • Page 75 Proline Promag W 500 Order code for "Sensor connection housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 5.83 3.70 2.13 3.31 8.15 11.5 5.35 4.72 1 ½ 5.83 3.70 2.13 3.31 8.15 11.5...
  • Page 76 Proline Promag W 500 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 4.45 2.44 2.01 8.07 12.7 20.8 4.41 15.8 4.45 2.44 2.01 9.06 13.7 22.8 4.41 18.1 4.45 2.44 2.01 11.1 16.0 29.3 4.41 22.2 4.45 2.44...
  • Page 77 Proline Promag W 500 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 5.83 3.70 2.13 13.1 15.9 29.0 5.35 26.2 5.83 3.70 2.13 14.1 16.9 31.0 5.35 28.2 5.83 3.70 2.13 16.1 18.9 35.0 5.35 32.3 5.83 3.70...
  • Page 78 Proline Promag W 500 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 4.45 2.44 2.01 3.46 8.27 11.7 4.41 6.89 4.45 2.44 2.01 3.94 8.78 12.7 4.41 7.87 4.45 2.44 2.01 5.31 10.1 15.4 4.41 10.6 4.45 2.44...
  • Page 79 Proline Promag W 500 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 4.45 2.44 2.01 46.8 51.2 98.0 4.41 93.3 4.45 2.44 2.01 48.7 53.2 101.9 4.41 97.2 Depends on the liner Total length is independent of the process connections.→  81 A0033784 Order code for "Design", option A "Insertion length short"...
  • Page 80 Proline Promag W 500 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 4.45 2.44 2.01 35.7 40.4 76.1 4.41 71.4 4.45 2.44 2.01 37.7 42.4 80.1 4.41 75.4 4.45 2.44 2.01 39.9 44.6 84.5 4.41 79.8 4.45 2.44...
  • Page 81 Proline Promag W 500 Flange connections Flange A0015621 Flange according to ASME B16.5, Class 150 A 105: order code for "Process connection", option A1K 1.4404 (F316/F316L): order code for "Process connection", option A1S [in] [in] [in] [in] [in] [in] [in] 4.25...
  • Page 82 Proline Promag W 500 Flange according to ASME B16.5, Class 300 A 105: order code for "Process connection", option A2K 1.4404 (F316/F316L): order code for "Process connection", option A2S [in] [in] [in] [in] [in] [in] [in] 12.5 10.62 12 × Ø0.88 1.38...
  • Page 83 Proline Promag W 500 Flange according to AS 2129, Tab. E A 105: order code for "Process connection", option M2K [in] [in] [in] [in] [in] [in] [in] 49.41 46.26 24 × Ø1.54 2.64 40.12 39.37 /51.18 58.66 55.51 32 × Ø1.54 3.11...
  • Page 84 Proline Promag W 500 Accessories Protective cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553  46 Weather protection cover for Proline 500 External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.
  • Page 85 Proline Promag W 500 70 (2.8) A0033597  48 Engineering unit mm (in) Ground disks for flange connections ≤ 300 (12") DN 300…600 (14…24") ≥ 700 (28") 9 (0.35) 6.4 (0.25) 6.5 (0.26) t = 2 (0.08) t = 2 (0.08) t = 2 (0.08)

  • Page 86: Weight

    Proline Promag W 500 Pressure rating [in] [in] [in] [in] [in] ASME, 13.5 15.8 18.9 14.4 Class 150 DIN, PN 6 15.5 18.5 21.3 15.6 DIN, PN 10 15.5 18.5 21.3 15.6 ASME, 15.5 18.5 21.3 15.6 Class 150 DIN, PN 6 17.3...
  • Page 87 Proline Promag W 500 Sensor Sensor with aluminum connection housing version: see the information in the following table Weight in SI units Nominal diameter EN (DIN), AS [mm] [in] Pressure rating [kg] Pressure rating [kg] PN 40 – PN 40 1 ½...
  • Page 88 Proline Promag W 500 EN 1092-1 Weight [kg] [mm] PN 6 PN 10 PN 16 1 000 1 200 1192 1 400 1 036 1 348 1 713 1 600 1 384 1 985 2 448 1 800 1 829...
  • Page 89 Proline Promag W 500 Weight in US units Nominal diameter ASME AWWA [mm] [in] Pressure rating [lbs] Pressure rating [lbs] Class 150 1 ½ Class 150 Class 150 Class 150 Class 150 Class 150 Class 150 Class 150 Class 150...

  • Page 90: Measuring Tube Specification

    Proline Promag W 500 AWWA C207, Class D Weight [in] [lbs] 1 093 1 463 1 695 2 277 3 165 3 930 5 425 6 295 7 782 Measuring tube specification Nominal diameter Pressure rating Measuring tube internal diameter...

  • Page 91: Materials

    Proline Promag W 500 Nominal diameter Pressure rating Measuring tube internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane AWWA AS 4087 [mm] [in] [mm] [in] [mm] [in] PN 6 Class D Table E, PN 16 – 35.0 35.1...
  • Page 92 Proline Promag W 500 Cable entries and adapters Material Cable gland M20 × 1.5 Plastic • Adapter for cable entry with internal thread G ½" Nickel-plated brass • Adapter for cable entry with internal thread NPT ½"  Only available for certain device versions: •...
  • Page 93 Proline Promag W 500 Electrodes • Stainless steel, 1.4435 (316L) • Alloy C22, 2.4602 (UNS N06022) • Tantalum Process connections EN 1092-1 (DIN 2501) • DN 25 to 300 – Stainless steel, 1.4571/F316L – Carbon steel, S235JRG2/S235JR+N/P250GH/E250C • DN 350 to 600 –...

  • Page 94: Fitted Electrodes

    Proline Promag W 500 External WLAN antenna • Antenna: ASA plastic (acrylic ester-styrene-acrylonitrile) and nickel-plated brass • Adapter: Stainless steel and nickel-plated brass • Cable: Polyethylene • Plug: Nickel-plated brass • Angle bracket: Stainless steel Ground disks • Stainless steel, 1.4435 (316L) •...

  • Page 95: Languages

    Proline Promag W 500 Reliable operation • Operation in local language →  95 • Uniform operating philosophy applied to device and operating tools • If replacing electronic modules, transfer the device configuration via the integrated memory (HistoROM backup) which contains the process and measuring device data and the event logbook.
  • Page 96 Proline Promag W 500 A0028747  52 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for access to the integrated device Web server or computer with an operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...
  • Page 97 Proline Promag W 500 A0028837  54 Options for remote operation via FOUNDATION Fieldbus network Automation system Computer with FOUNDATION Fieldbus network card Industry network High Speed Ethernet FF-HSE network Segment coupler FF-HSE/FF-H1 FOUNDATION Fieldbus FF-H1 network Power supply FF-H1 network...
  • Page 98 Proline Promag W 500 A0028838  56 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network Segment coupler PROFIBUS DP/PA PROFIBUS PA network T-box Measuring device Via Modbus RS485 protocol This communication interface is available in device versions with a Modbus-RS485 output.
  • Page 99 Proline Promag W 500 Star topology A0032078  58 Options for remote operation via EtherNet/IP network: star topology Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.
  • Page 100 Proline Promag W 500 Star topology A0026545  60 Options for remote operation via PROFINET network: star topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...

  • Page 101: Service Interface

    Proline Promag W 500 Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device. An adapter for RJ45 and the M12 connector is optionally available: Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"...

  • Page 102: Network Integration

    Proline Promag W 500 A0034569 Transmitter with integrated WLAN antenna Transmitter with external WLAN antenna LED lit constantly: WLAN reception is enabled on measuring device LED flashing: WLAN connection established between operating unit and measuring device Computer with WLAN interface and Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with operating tool (e.g.

  • Page 103: Supported Operating Tools

    Proline Promag W 500 accessed any time from the control station. The measured values are processed separately via the inputs and outputs through the automation system. A0033618 Automation system, e.g. Simatic S7 (Siemens) Ethernet switch Edge Gateway Cloud Measuring device...

  • Page 104: Historom Data Management

    Proline Promag W 500 Supported operating Operating unit Interface Additional information tools FieldCare SFE500 Notebook, PC or tablet • CDI-RJ45 service →  112 with Microsoft Windows interface system • WLAN interface • Fieldbus protocol Device Xpert Field Xpert SFX...
  • Page 105 Proline Promag W 500 Additional information on the data storage concept There are different types of data storage units in which device data are stored and used by the device: Device memory T-DAT S-DAT Available data • Event logbook such as diagnostic events for example •...

  • Page 106: Certificates And Approvals

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media...

  • Page 107: Pharmaceutical Compatibility

    Proline Promag W 500 cCSAus Currently, the following versions for use in hazardous areas are available: IS (Ex i), XP (Ex d) Transmitter Sensor Class I, III, III Division 1 Groups A-G NI (Ex nA) Transmitter Sensor Class I Division 2 Groups A - D...

  • Page 108: Certification Profibus

    Proline Promag W 500 Certification PROFIBUS PROFIBUS interface The measuring device is certified and registered by the PNO (PROFIBUS User Organization Organization). The measuring system meets all the requirements of the following specifications: • Certified in accordance with PROFIBUS PA Profile 3.02 •...

  • Page 109: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 110: Cleaning

    →  114. Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 111: Communication-Specific Accessories

    Proline Promag W 500 Protective cover Is used to protect the measuring device from the effects of the weather: e.g. rainwater, excess heating from direct sunlight. Transmitter  Proline 500 Order number: 71343505  Installation Instructions EA01160 Ground cable Set, consisting of two ground cables for potential equalization.

  • Page 112: Service-Specific Accessories

    Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.

  • Page 113: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation...

  • Page 114: Registered Trademarks

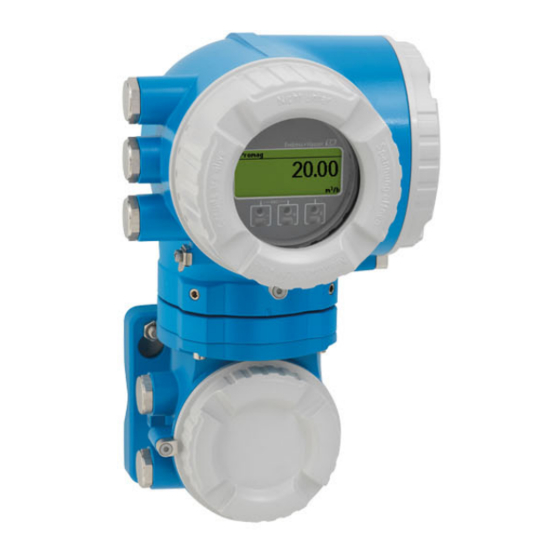

    Proline Promag W 500 Special Documentation Contents Documentation code Information on the Pressure Equipment Directive SD01614D Radio approvals for WLAN interface for A309/A310 display module SD01793D OPC-UA Server SD02044D This Special Documentation is only available for device versions with a HART output.
