RESET instructions

The reset instructions described in this section are required if you want to operate the
RF68xR readers or the RFID181 EIP communication modules with a Rockwell controller.
Remember that the default value will be used automatically if you do not select a value
manually.
4.5.5.1

Reset_RF68xR

Using the "Reset_RF68xR" instruction, you can reset the RF680R and RF685R read points.
Note that a separate reset command must be sent for each read point. The read point is
reset to the settings configured on the reader with the WBM. The "Reset_RF68xR"
instruction does not have any device-specific parameters and is executed using the
"EXECUTE" parameter.
Using the "Reset_RF68xR" instruction, you can interrupt any active Ident instruction at any
time. The instructions are then ended with "DONE = true" and "ERROR = false".

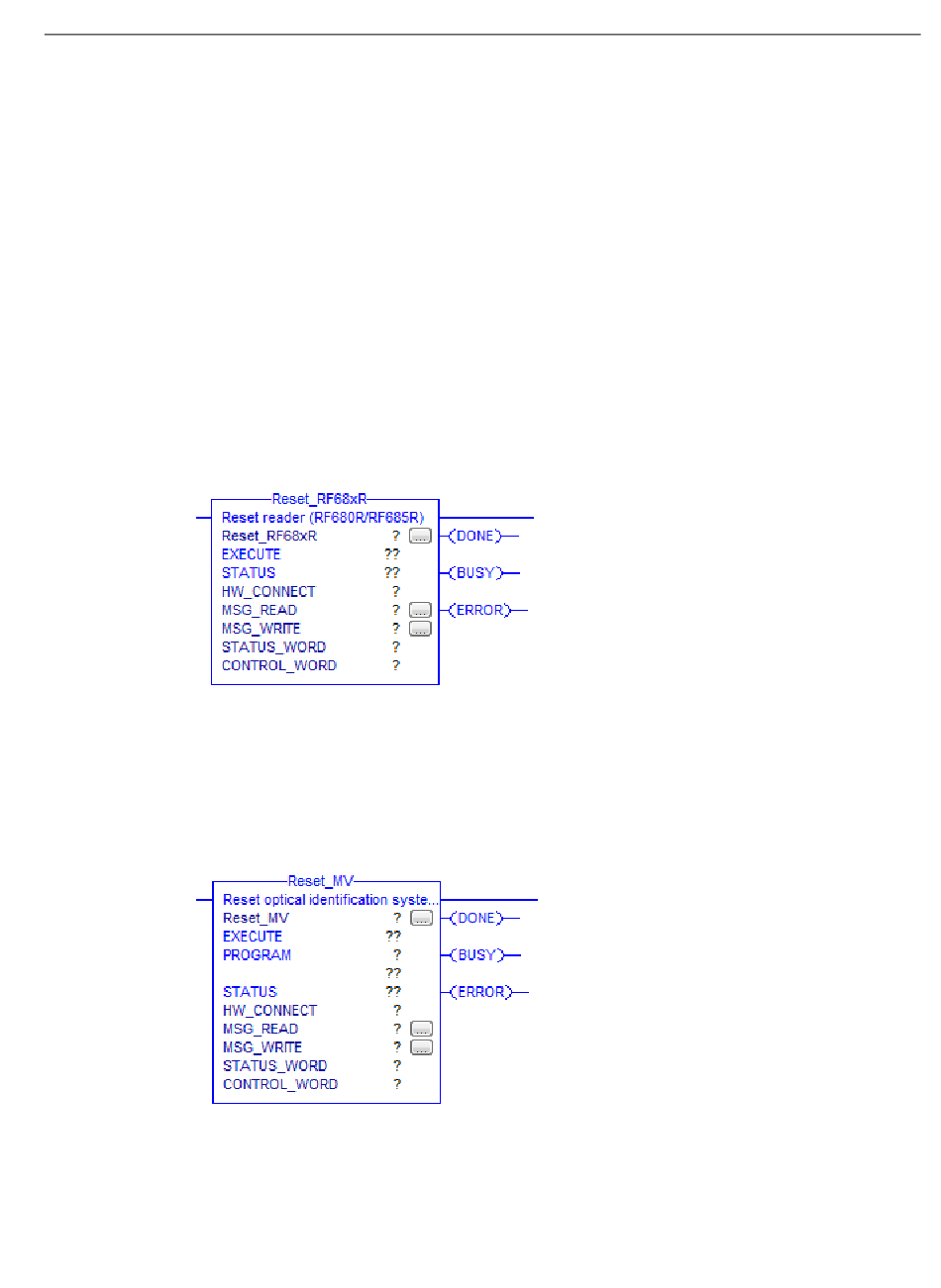

Figure 4-22
4.5.5.2

Reset_MV

To reset cameras of the optical reader systems, call the instruction and activate the
"EXECUTE" parameter.
Figure 4-23
Ident profile, Add-on instruction for Rockwell systems
Function Manual, 01/2019, C79000-G8976-C410-03
Instruction "Reset_RF68xR"
Instruction "Reset_MV"
Configuring the instructions
