Using The 35Mm Slide Holder - Microtek ArtixScan M2 Getting To Know Manual

A. Using the 35mm Slide Holder
The 35mm Slide Holder can hold a maximum of 12 mounted slides at a time.

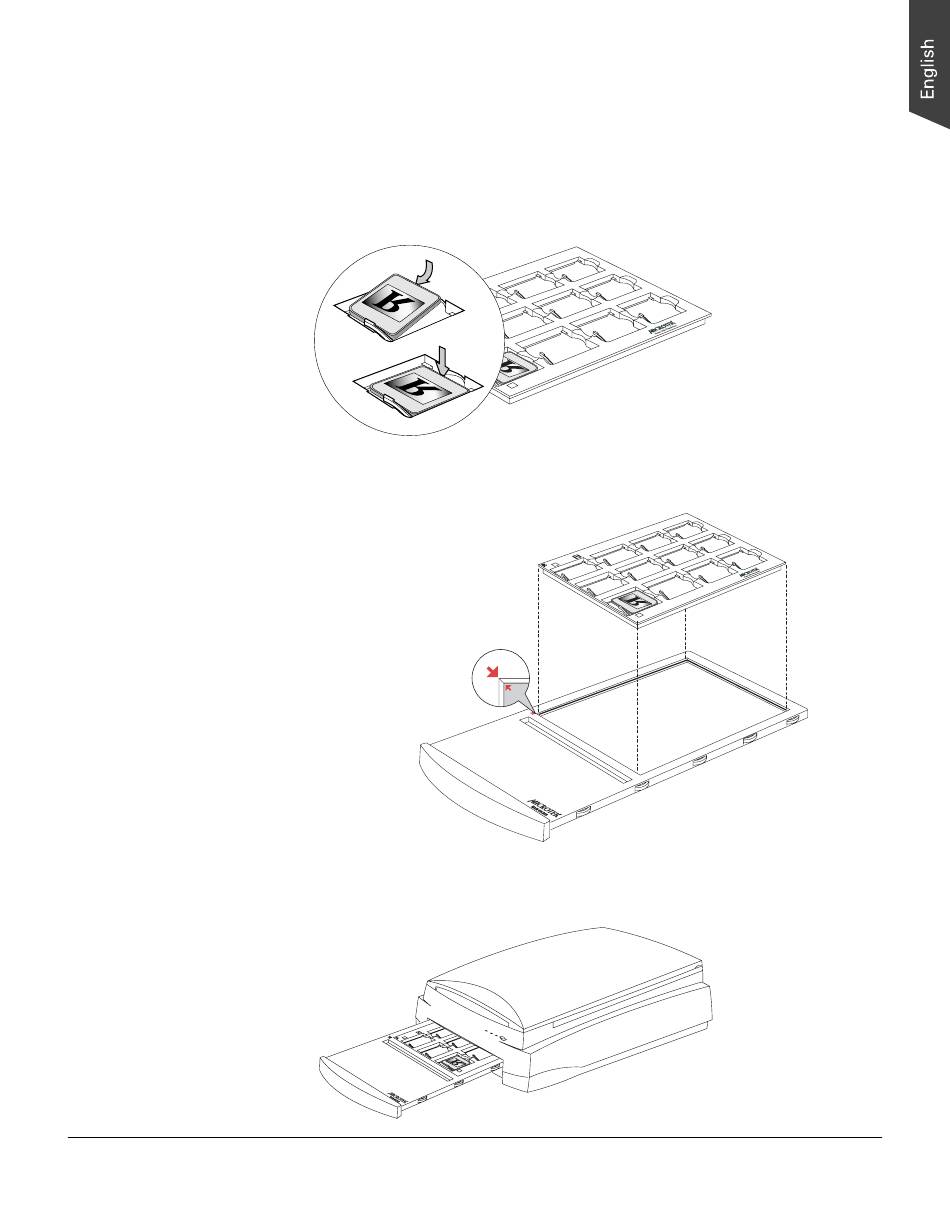

1. Place the individual 35mm slide to be scanned into the 35mm Slide Holder, as
indicated in the graphic below. The shiny base of the 35mm slide should be facing
down.
2. Put the 35mm Slider Holder into the Main Holder.
Make sure that the red
arrow marks on both the
35mm Slide Holder and the
Main Holder are pointing to
each other when the holders
are put together
3. Insert the whole assembly into the transparency bay (the drawer or lower
compartment) of the scanner.
ArtixScan M2 Supplement 9
