TI00055D/06/EN/13.15
71231012
The flowmeter for minimized cost of ownership combined with a compact field
transmitter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Highly accurate measurement of liquids and gases for a wide
range of standard applications
Device properties
• Compact dual-tube system
• Medium temperature up to +140 °C (+284 °F)
• Process pressure: up to 100 bar (1450 psi)
• 2-line backlit display without local operation
• Device in compact version
• HART
Products
Technical Information

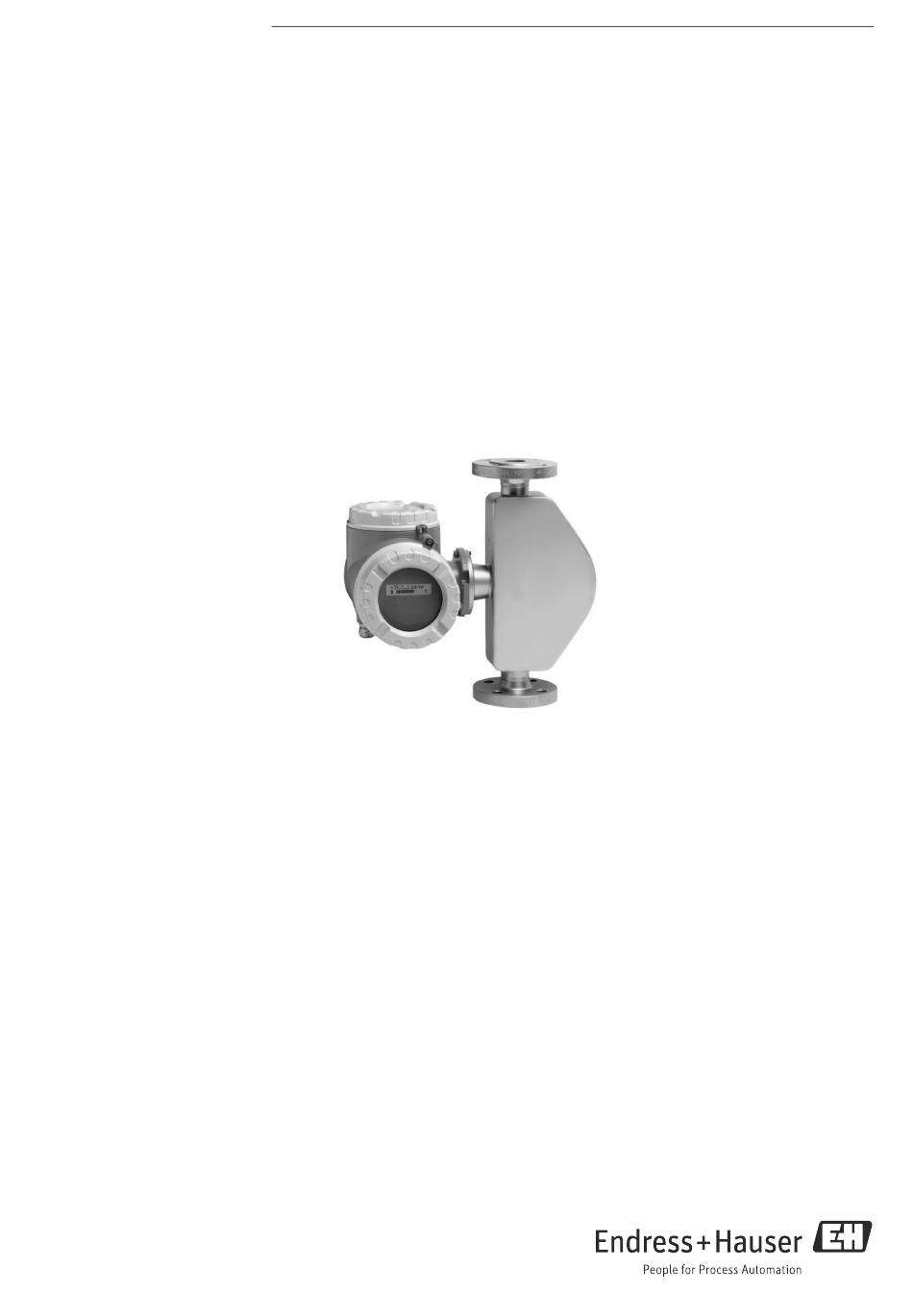

Proline Promass 40E
Coriolis flowmeter
Solutions
Your benefits
• Cost-effective – multi-purpose device; an alternative to
conventional volumetric flowmeters
• Fewer process measuring points – multivariable
measurement (flow, temperature)
• Space-saving installation – no in/outlet run needs
• Cost-effective – dedicated design for low-end applications
and direct integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promass 40E
Summary of Contents for Endress+Hauser Proline Promass 40E
- Page 1 Products Solutions Services TI00055D/06/EN/13.15 71231012 Technical Information Proline Promass 40E Coriolis flowmeter The flowmeter for minimized cost of ownership combined with a compact field transmitter Application Your benefits • Measuring principle operates independently of physical fluid • Cost-effective – multi-purpose device; an alternative to...
-
Page 2: Table Of Contents
Proline Promass 40E Table of contents Function and system design ..... .3 Rupture disk ......... 16 Limiting flow . -
Page 3: Function And System Design
Proline Promass 40E Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present when both translational and rotational movements are superimposed. = 2 · Δm (v · ω) = Coriolis force Δm = moving mass... -
Page 4: Input
Proline Promass 40E Input Measured variable • Mass flow (proportional to the phase difference between two sensors mounted on the measuring tube to register a phase shift in the oscillation) • Volume flow (calculated from mass flow and fluid density. The density is proportional to the resonance frequency of the measuring tubes). -
Page 5: Operable Flow Range
Proline Promass 40E Operable flow range Flow rates above the preset full scale value do not overload the amplifier, i.e. the totalizer values are registered correctly. Input signal Status input (auxiliary input): U = 3 to 30 V DC, R = 5 kΩ, galvanically isolated. -
Page 6: Power Supply
Proline Promass 40E Power supply Terminal assignment Order characteristic Terminal No. (inputs/outputs) for "inputs/outputs" 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) Frequency output Current output, HART Status input... -
Page 7: Performance Characteristics
Proline Promass 40E Performance characteristics Reference operating • Error limits following ISO 11631 conditions • Water with 15 to 45 °C (59 to 113 °F); 2 to 6 bar (29 to 87 psi) • Data according to calibration protocol • Accuracy based on accredited calibration rigs that are traced to ISO 17025 To obtain measured errors, use the Applicator sizing tool : →... -
Page 8: Repeatability
Proline Promass 40E US units 1:10 1:20 1:50 1:100 1:500 [in] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] [lb/min] ³⁄₈ 73.50 7.350 3.675 1.470 0.735 0.147 ½ 238.9 23.89 11.95 4.778 2.389 0.478 661.5 66.15 33.08 13.23 6.615 1.323 1½ 1654 165.4 82.70... -
Page 9: Influence Of Fluid Pressure
Proline Promass 40E Influence of fluid pressure The table below shows the effect on accuracy of mass flow due to a difference between calibration pressure and process pressure. Promass E [mm] [in] [% o.r./bar] ³⁄₈ no influence ½ no influence no influence 1½... -
Page 10: Installation
Proline Promass 40E Installation Mounting location Entrained air or gas bubbles in the measuring tube can result in an increase in measuring errors. Therefore, avoid the following mounting locations in the pipe installation: • Highest point of a pipeline. Risk of air accumulating. -
Page 11: Orientation
Proline Promass 40E Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction of fluid flow through the pipe). Vertical (Fig. V) Recommended orientation with upward direction of flow. When fluid is not flowing, entrained solids will sink down and gases will rise away from the measuring tube. -
Page 12: Installation Instructions
Proline Promass 40E Installation instructions Note the following points: • No special measures such as supports are necessary. External forces are absorbed by the construction of the instrument, for example the secondary containment. • The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by pipe vibrations. -
Page 13: Electromagnetic Compatibility (Emc)
Proline Promass 40E Electromagnetic As per IEC/EN 61326 and NAMUR recommendation NE 21 compatibility (EMC) Process Fluid temperature range Sensor –40 to +140 °C (–40 to +284 °F) Medium density 0 to 5000 kg/m (0 to 312 lb/ft Secondary containment The sensor housing is filled with dry nitrogen and protects the electronics and mechanics inside. - Page 14 Proline Promass 40E Flange connection according to ASME B16.5 Flange material: 1.4404 (F316/F316L) [psi] [bar] 1400 Class 600 1200 1000 Class 300 Class 150 [°C] [°F] A0020973-EN JIS B2220, flange Flange material: 1.4404 (F316/F316L) [psi] [bar] 1000 [°C] [°F] A0020974-EN Tri-Clamp, DIN 11866 line C The Clamp connections are suited up to a maximum pressure of 16 bar (232 psi).
- Page 15 Proline Promass 40E DIN 11851, thread Connection material: 1.4404 (316/316L) [psi] [bar] DN 8…40 DN 50…80 [°C] [°F] A0020976-EN DIN 11851 allows for applications up to +140 °C (+284 °F) if suitable sealing materials are used. Please take this into account when selecting seals and counterparts as these components can limit the pressure and temperature range.
-
Page 16: Rupture Disk
Proline Promass 40E SMS 1145, thread Connection material: 1.4404 (316/316L) [psi] [bar] [°C] [°F] A0020986-EN SMS 1145 allows for applications up to 6 bar (87 psi) if suitable sealing materials are used. Please take this into account when selecting seals and counterparts as these components can limit the pressure and temperature range. -
Page 17: Limiting Flow
– Relative magnetic permeability μ – Plate thickness d ≥ 0.35 mm (d ≥ 0.014") • Information on permitted temperature ranges → 13. Special heating jackets, which can be ordered separately from Endress+Hauser as an accessory, are available for the sensors. Endress+Hauser... -
Page 18: Mechanical Construction
Proline Promass 40E Mechanical construction Design, dimensions Dimensions: Field housing compact version, powder-coated die-cast aluminum → 19 Process connections in SI units Flange connections EN 1092-1 (DIN 2501/DIN 2512N)) → 20 Flange connections ASME B16.5 → 22 Flange connections JIS →... - Page 19 Proline Promass 40E Field housing compact version, powder-coated die-cast aluminum A0007638 Dimensions SI units dependent on respective process connection * Blind version (without local display) All dimensions in [mm] Dimensions in US units ³⁄₈" 9.08 8.28 7.48 6.72 6.40 8.82 3.66...
- Page 20 Proline Promass 40E Process connections in SI units Flange connections EN (DIN), ASME B16.5, JIS +1.5 (+0.06) – (–0.08) A0021285 Dimension unit in mm (in) Flange connections EN 1092-1 (DIN 2501/DIN 2512N)) Flange according to EN 1092-1 (DIN 2501), PN 40: 1.4404 (F316/F316L) Order code for "Process connection", option D2S...
- Page 21 Proline Promass 40E Flange according to EN 1092-1 (DIN 2501), PN 63: 1.4404 (F316/F316L) Order code for "Process connection", option D3S Flange with groove according to EN 1092-1 (DIN 2512N), PN 63: 1.4404 (F316/F316L) Order code for "Process connection", option D7S Surface roughness (flange): EN 1092-1 Form B2 (DIN 2526 Form E), Ra 0.8 to 3.2 μm...
- Page 22 Proline Promass 40E Flange connections ASME B16.5 Flange according to ASME B16.5, Cl 150: 1.4404 (F316/F316L) Order code for "Process connection", option AAS 88.9 4 × Ø15.7 11.2 60.5 15.7 5.35 88.9 4 × Ø15.7 11.2 60.5 15.7 8.30 108.0 4 ×...
- Page 23 Proline Promass 40E Flange connections JIS JIS B2220, flange, 10K: 1.4404 (F316/F316L) Order code for "Process connection", option NDS 4 × Ø19 26.0 8 × Ø19 40.5 All dimensions in [mm] JIS B2220, flange, 20K: 1.4404 (F316/F316L) Order code for "Process connection", option NES 4 ×...
- Page 24 Proline Promass 40E Tri-Clamp, DIN 11866 line C +1.5 (+0.06) –2.0 (–0.08) A0021287 Dimension in mm (in) 1", 1½", 2" -Tri-Clamp, DIN 11866 line C: 1.4404 (316/316L) Order code for "Process connection", option FTS Clamp 1" 50.4 22.1 5.35 1"...
- Page 25 Proline Promass 40E DIN 11851, thread, DIN11866 line A +1.5 (+0.06) –2.0 (–0.08) A0021288 Dimension in mm (in) DIN 11851, thread, DIN11866 line A: 1.4404 (316/316L) Order code for "Process connection", option FMW Rd 34 × ¹⁄₈" 5.35 Rd 34 × ¹⁄₈"...
- Page 26 Proline Promass 40E DIN 11864-1 Form A, thread, DIN11866 line A +1.5 (+0.06) –2.0 (–0.08) A0021289 Dimension unit in mm (in) DIN 11864-1 Form A, thread, DIN11866 line A: 1.4404 (316/316L) Order code for "Process connection", option FLW Rd 28 × ¹⁄₈"...
- Page 27 Proline Promass 40E DIN 11864-2 Form A, flange, DIN11866 line A, flange with notch +1.5 (+0.06) –2.0 (–0.08) A0021294 Dimension unit in mm (in) DIN 11864-2 Form A, flange, DIN11866 line A, flange with notch: 1.4404 (316/316L) Order code for "Process connection", option FKW 4 ×...
- Page 28 Proline Promass 40E ISO 2853, thread, ISO2037 +1.5 (+0.06) –2.0 (–0.08) A0021290 Dimension in mm (in) ISO 2853, thread, ISO2037: 1.4404 (316/316L) Order code for "Process connection", option FJW 37.13 22.6 5.35 37.13 22.6 8.30 37.13 22.6 12.0 50.68 35.6 17.6...
- Page 29 Proline Promass 40E SMS 1145, thread +1.5 (+0.06) –2.0 (–0.08) A0021291 Dimension unit in mm (in) SMS 1145, thread: 1.4404 (316/316L) Order code for "Process connection", option FSW Rd 40 × ¹⁄₆" 22.5 5.35 Rd 40 × ¹⁄₆" 22.5 8.30 Rd 40 ×...
- Page 30 Proline Promass 40E Process connections in US units Flange connections ASME B16.5 +1.5 (+0.06) – (–0.08) A0021285 Dimension unit in mm (in) Flange according to ASME B16.5, Cl 150: 1.4404 (316/316L) Order code for "Process connection", option AAS ³⁄₈" 3.50 9.13...
- Page 31 Proline Promass 40E Flange according to ASME B16.5, Cl 600: 1.4404 (316/316L) Order code for "Process connection", option ACS ³⁄₈" 3.75 10.28 4 × Ø0.62 0.81 2.62 0.55 0.21 ½" 3.75 11.61 4 × Ø0.62 0.81 2.62 0.55 0.33 1"...
- Page 32 Proline Promass 40E SMS 1145, thread +1.5 (+0.06) –2.0 (–0.08) A0021291 Dimension unit in mm (in) SMS 1145, thread: 1.4404 (316/316L) Order code for "Process connection", option FSW ³⁄₈" Rd 40 × ¹⁄₆" 9.02 0.89 0.21 ½" Rd 40 × ¹⁄₆"...
-
Page 33: Weight
Proline Promass 40E Weight Weight in SI units DN [mm] Compact version All values (weight) refer to devices with EN/DIN PN 40 flanges. Weight information in [kg] Weight in US units DN [in] ³⁄₈" ½" 1" 1½" 2" 3" Compact version All values (weight) refer to devices with EN/DIN PN 40 flanges. -
Page 34: Operability
CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)"... -
Page 35: Ordering Information
• Ability to order directly in the Endress+Hauser Online Shop Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 36: Service-Specific Accessories
Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser’s FDT-based plant asset management tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via a service interface or via the service interface FXA193. -
Page 37: Registered Trademarks
Registered trademark of Ladish & Co., Inc., Kenosha, USA ® HART Registered trademark of HART Communication Foundation, Austin, USA ® ® ® ® ® Applicator , FieldCare , Fieldcheck , HistoROM™, F-CHIP , S-DAT , T-DAT™ Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser... - Page 38 Proline Promass 40E Endress+Hauser...
