Endress+Hauser Proline Promass P 300 Manual

Endress+Hauser Proline Promass P 300 Manual

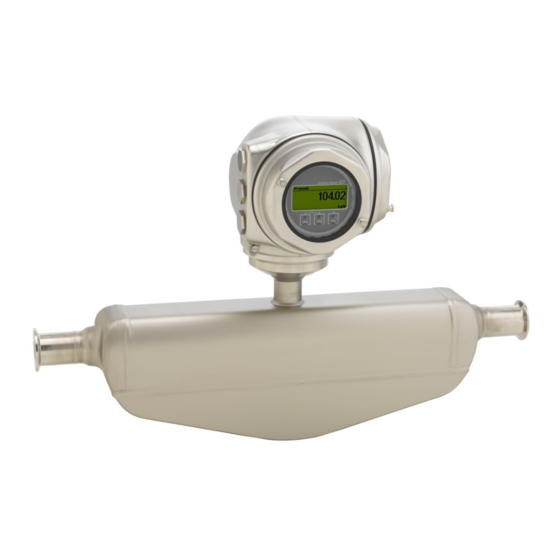

Coriolis flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

TI01276D/06/EN/04.18
71415042
2018-11-01
The specialist for life sciences with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life
sciences industry
Device properties
• ASME BPE, 3-A, EHEDG conform & low delta-ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Compact hygienic dual-compartment housing with IP69 and
up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Products
Technical Information
Proline Promass P 300
Coriolis flowmeter
Solutions
Your benefits
• Highest process quality – fully compliant with
industry requirements
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Full access to process and diagnostic information –
numerous, freely combinable I/Os and fieldbuses
• Reduced complexity and variety – freely configurable I/O
functionality
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass P 300

Summary of Contents for Endress+Hauser Proline Promass P 300

  • Page 1 Solutions Services TI01276D/06/EN/04.18 71415042 2018-11-01 Technical Information Proline Promass P 300 Coriolis flowmeter The specialist for life sciences with a compact, easily accessible transmitter Application Your benefits • Measuring principle operates independently of physical fluid • Highest process quality – fully compliant with...

  • Page 2: Table Of Contents

    Proline Promass P 300 Table of contents About this document ......Climate class .......
  • Page 3 Proline Promass P 300 Application packages ..... . 105 Diagnostics functions ......105 Heartbeat Technology .

  • Page 4: About This Document

    Proline Promass P 300 About this document Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Promass P 300 Symbols in graphics Symbol Meaning 1, 2, 3, ... Item numbers , … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces.

  • Page 6: Measuring System

    Proline Promass P 300 Density measurement The measuring tube is continuously excited at its resonance frequency. A change in the mass and thus the density of the oscillating system (comprising measuring tube and fluid) results in a corresponding, automatic adjustment in the oscillation frequency. Resonance frequency is thus a function of medium density.

  • Page 7: Equipment Architecture

    Proline Promass P 300 Equipment architecture A0027512  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) Connecting cable (0/4 to 20 mA HART etc.) Fieldbus Segment coupler Non-hazardous area Hazardous area: Zone 2; Class I, Division 2 Hazardous area: Zone 1;...
  • Page 8 Proline Promass P 300 Protecting access via hardware write protection Write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on the motherboard).
  • Page 9 Proline Promass P 300 The device can communicate with OPC UA clients using the "OPC UA Server" application package. The OPC UA server integrated in the device can be accessed via the WLAN access point using the WLAN interface - which can be ordered as an optional extra - or the service interface (CDI- RJ45) via Ethernet network.

  • Page 10: Input

    To increase the accuracy of certain measured variables, the automation system can continuously write various measured values to the measuring device: • Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) •...
  • Page 11 Proline Promass P 300 Digital communication The measured values can be written from the automation system to the measuring via: • FOUNDATION Fieldbus • PROFIBUS DP • PROFIBUS PA • Modbus RS485 • EtherNet/IP • PROFINET Current input 0/4 to 20 mA...

  • Page 12: Output

    Proline Promass P 300 Output Output and input variants Depending on the option selected for output/input 1, different options are available for the other outputs and inputs. Only one option can be selected for each output/input 1 to 3. The table must be read vertically (↓).

  • Page 13: Output Signal

    Proline Promass P 300 Output signal HART current output Current output 4 to 20 mA HART Current span Can be set to: 4 to 20 mA (active/passive)  Ex-i, passive Open-circuit voltage DC 28.8 V (active) Maximum input voltage DC 30 V (passive) Load 250 to 700 Ω...
  • Page 14 Proline Promass P 300 Current consumption 10 mA Permitted supply voltage 9 to 32 V Bus connection With integrated reverse polarity protection Modbus RS485 Physical interface RS485 in accordance with EIA/TIA-485 standard Terminating resistor Integrated, can be activated via DIP switches...
  • Page 15 Proline Promass P 300 Open-circuit voltage DC 28.8 V (active) Pulse width Adjustable: 0.05 to 2 000 ms Maximum pulse rate 10 000 Impulse/s Pulse value Adjustable Assignable measured • Mass flow variables • Volume flow • Corrected volume flow...
  • Page 16 Proline Promass P 300 Double pulse output Function Double pulse Version Open collector Can be set to: • Active • Passive Maximum input values DC 30 V, 250 mA (passive) Open-circuit voltage DC 28.8 V (active) Voltage drop For 22.5 mA: ≤ DC 2 V...

  • Page 17: Signal On Alarm

    Proline Promass P 300 The technical values correspond to those of the inputs and outputs described in this section. Depending on the interface, failure information is displayed as follows: Signal on alarm HART current output Device diagnostics Device condition can be read out via HART Command 48...
  • Page 18 Proline Promass P 300 0 to 20 mA Failure mode Choose from: • Maximum alarm: 22 mA • Freely definable value between: 0 to 20.5 mA Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value • No pulses...

  • Page 19: Ex Connection Data

    Proline Promass P 300 Web server Plain text display With information on cause and remedial measures Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active •...

  • Page 20: Low Flow Cut Off

    Proline Promass P 300 Intrinsically safe values Order code for Output type Intrinsically safe values "Output; input 1" "Output; input 1" 26 (+) 27 (–) Option CA Current output = 30 V 4 to 20 mA HART Ex i = 100 mA = 1.25 W...
  • Page 21 Proline Promass P 300 PROFIBUS PA Manufacturer ID 0x11 Ident number 0x156D Profile version 3.02 Device description files (GSD, Information and files under: DTM, DD) • www.endress.com • www.profibus.org Supported functions • Identification & Maintenance Simplest device identification on the part of the control system and nameplate •...
  • Page 22 Proline Promass P 300 Compatibility with If the device is replaced, the measuring device Promass 300 supports the earlier model compatibility of the cyclic data with previous models. It is not necessary to adjust the engineering parameters of the PROFIBUS network with the Promass 300 GSD file.
  • Page 23 Proline Promass P 300 Conformity class Conformance Class B Netload Class Netload Class II Baud rates Automatic 100 Mbit/s with full-duplex detection Cycle times From 8 ms Polarity Auto-polarity for automatic correction of crossed TxD and RxD pairs Media Redundancy Protocol...
  • Page 24 Proline Promass P 300 ITK Test Campaign Number Information: • www.endress.com • www.fieldbus.org Link Master capability (LAS) Choice of "Link Master" and "Basic Device" Factory setting: Basic Device Node address Factory setting: 247 (0xF7) Supported functions The following methods are supported: •...

  • Page 25: Terminal Assignment

    Proline Promass P 300 Supported baud rate • 1 200 BAUD • 2 400 BAUD • 4 800 BAUD • 9 600 BAUD • 19 200 BAUD • 38 400 BAUD • 57 600 BAUD • 115 200 BAUD Data transfer mode •...

  • Page 26: Device Plugs Available

    Proline Promass P 300 Modbus RS485 Supply voltage Input/output 1 Input/output 2 Input/output 3 1 (+) 2 (–) 26 (B) 27 (A) 24 (+) 25 (–) 22 (+) 23 (–) The terminal assignment depends on the specific device version ordered →  12.

  • Page 27: Pin Assignment, Device Plug

    Proline Promass P 300 Order code for "Input; output 1", option RA "PROFINET" Order code for Cable entry/connection →  30 "Electrical connection" L, N, P, U Connector M12 × 1 – 1) 2) 1) 2) 1) 2) 1) 2) Connector M12 ×...

  • Page 28: Supply Voltage

    Proline Promass P 300 PROFINET Assignment TD + RD + TD – RD – Coding Plug/socket A0032047 Socket  Recommended plug: • Binder, series 763, part no. 99 3729 810 04 • Phoenix, part no. 1543223 SACC-M12MSD-4Q • When using the device in a hazardous location, use a suitably certified plug.

  • Page 29: Power Consumption

    Proline Promass P 300 Power consumption Transmitter Max. 10 W (active power) switch-on current Max. 36 A (as per NAMUR Recommendation NE21) Current consumption Transmitter • Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) •...

  • Page 30: Electrical Connection

    Proline Promass P 300 Electrical connection Connecting the transmitter • Terminal assignment→  25 • Device plugs available→  26 A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal for network connection via service interface (CDI-RJ45);...
  • Page 31 Proline Promass P 300 Connecting the remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra →  107. • The remote display and operating module DKX001 is only available for the following housing version: order code for "Housing": option A "Aluminum, coated"...
  • Page 32 Proline Promass P 300 4...20 mA A0028762  3 Connection example for 4 to 20 mA HART current output (passive) Automation system with current input (e.g. PLC) Power supply Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications →...
  • Page 33 Proline Promass P 300 PROFIBUS PA A0028768  5 Connection example for PROFIBUS PA Control system (e.g. PLC) PROFIBUS PA segment coupler Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 34 Proline Promass P 300 EtherNet/IP A0028767  7 Connection example for EtherNet/IP Control system (e.g. PLC) Ethernet switch Observe cable specifications Device plug Transmitter EtherNet/IP: DLR (Device Level Ring) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  39...
  • Page 35 Proline Promass P 300 PROFINET: MRP (Media Redundancy Protocol) A0027544 Control system (e.g. PLC) Ethernet switch Observe cable specifications →  39 Connecting cable between the two transmitters Transmitter FOUNDATION Fieldbus A0028768  9 Connection example for FOUNDATION Fieldbus Control system (e.g. PLC) Power Conditioner (FOUNDATION Fieldbus) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;...
  • Page 36 Proline Promass P 300 Modbus RS485 A0028765  10 Connection example for Modbus RS485, non-hazardous area and Zone 2; Class I, Division 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 37 Proline Promass P 300 Pulse/frequency output 12345 A0028761  13 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: Observe input values →  14 Switch output A0028760  14 Connection example for switch output (passive) Automation system with switch input (e.g.
  • Page 38 Proline Promass P 300 A0029279  16 Connection example for double pulse output (passive) Automation system with double pulse input (e.g. PLC) Power supply Transmitter: Observe input values →  16 Double pulse output Double pulse output (slave), phase-shifted Relay output A0028760 ...

  • Page 39: Potential Equalization

    Proline Promass P 300 Status input A0028764  19 Connection example for status input Automation system with status output (e.g. PLC) Power supply Transmitter Potential equalization Requirements No special measures for potential equalization are required. Please consider the following to ensure correct measurement: •...
  • Page 40 Proline Promass P 300 Cable type Characteristic impedance 135 to 165 Ω at a measuring frequency of 3 to 20 MHz Cable capacitance < 30 pF/m Wire cross-section > 0.34 mm (22 AWG) Cable type Twisted pairs Loop resistance ≤110 Ω/km Signal damping Max.
  • Page 41 Proline Promass P 300 Pulse/frequency/switch output Standard installation cable is sufficient. Double pulse output Standard installation cable is sufficient. Relay output Standard installation cable is sufficient. Current input 0/4 to 20 mA Standard installation cable is sufficient. Status input Standard installation cable is sufficient.

  • Page 42: Performance Characteristics

    Proline Promass P 300 Performance characteristics Reference operating • Error limits based on ISO 11631 conditions • Water with +15 to +45 °C (+59 to +113 °F) at2 to 6 bar (29 to 87 psi) • Specifications as per calibration protocol •...

  • Page 43: Repeatability

    Proline Promass P 300 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 45 000 4 500 2 250 70 000 7 000 3 500 1 400 US units 1:10 1:20 1:50 1:100 1:500 [inch] [lb/min] [lb/min]...

  • Page 44: Influence Of Medium Temperature

    Proline Promass P 300 Influence of medium Mass flow and volume flow temperature o.f.s. = of full scale value When there is a difference between the temperature for zero point adjustment and the process temperature, the additional measured error of the sensor is typically ±0.0002 % o.f.s./°C (±0.0001 % o.

  • Page 45: Design Fundamentals

    Proline Promass P 300 [% o.r./bar] [% o.r./psi] [mm] [in] 1½ –0.007 –0.0005 –0.006 –0.0004 o.r. = of reading, o.f.s. = of full scale value Design fundamentals BaseAccu = base accuracy in % o.r., BaseRepeat = base repeatability in % o.r.

  • Page 46: Mounting Location

    Proline Promass P 300 Mounting location A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: • Highest point of a pipeline. • Directly upstream of a free pipe outlet in a down pipe.

  • Page 47: Inlet And Outlet Runs

    Proline Promass P 300 Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter at Exceptions: →  21,  47 A0015589 Horizontal orientation, transmitter at bottom Exceptions: →  21,  47 A0015590 Horizontal orientation, transmitter at side A0015592 This orientation is recommended to ensure self-draining.
  • Page 48 Proline Promass P 300 A0016583 Eccentric clamp connection "This side up" label indicates which side is up Slope the device in accordance with the hygiene guidelines. Slope: approx. 2 ° or 35 mm/m (0.42 in/feet) Transmitter Line on the underside indicates the lowest point of the eccentric process connection.

  • Page 49: Environment

    Dependency of ambient temperature on medium temperature→  50 ‣ If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. You can order a weather protection cover from Endress+Hauser. →  107. Storage temperature –50 to +80 °C (–58 to +176 °F) Climate class...

  • Page 50: Shock Resistance

    Proline Promass P 300 Shock resistance Shock due to rough handling following IEC 60068-2-31 Interior cleaning • Cleaning in place (CIP) • Sterilization in place (SIP) • Cleaning with pigs Options Oil- and grease-free version for wetted parts, without declaration Order code for "Service", option HA...

  • Page 51: Density

    Proline Promass P 300 Not insulated Insulated Version Standard version 60 °C (140 °F) 150 °C (302 °F) – – 60 °C (140 °F) 110 °C (230 °F) 55 °C (131 °F) 150 °C (302 °F) Extended temperature version 60 °C (140 °F) 205 °C (401 °F)
  • Page 52 Proline Promass P 300 Flange JIS B2220 [psi] [bar] [°C] [°F] A0026541-EN  25 With flange material 1.4404 (F316/F316L) Flange DIN 11864-2 Form A [psi] [bar] DN 8…40 ≥ DN 50 [°C] [°F] A0027781-EN  26 With flange material 1.4435 (316L)
  • Page 53 Proline Promass P 300 Thread DIN 11851 [psi] [bar] DN 8…40 ≥DN 50 [°C] [°F] A0027783-EN  28 With flange material 1.4435 (316L) DIN 11851 allows for applications up to +140 °C (+284 °F) if suitable sealing materials are used.

  • Page 54: Sensor Housing

    Proline Promass P 300 Thread SMS 1145 [psi] [bar] [°C] [°F] A0027786-EN  31 With connection material 1.4435 (316L) SMS 1145 allows for applications up to 6 bar (87 psi) if suitable sealing materials are used. Please take this into account when selecting seals and counterparts, as these components can limit the pressure and temperature range.

  • Page 55: Flow Limit

    Proline Promass P 300 corresponding type test declaration can be ordered with the device (order code for "Additional approval", option LN "Sensor housing burst pressure, type test"). Sensor housing nominal Sensor housing burst pressure pressure (designed with a safety factor ≥...

  • Page 56: Heating

    • Electrical heating, e.g. with electric band heaters • Via pipes carrying hot water or steam • Via heating jackets Heating jackets for the sensors can be ordered as accessories from Endress+Hauser .→  108 NOTICE Danger of overheating when heating ‣...

  • Page 57: Mechanical Construction

    Proline Promass P 300 Mechanical construction Dimensions in SI units Compact version A0033783 Order code for "Housing", option A "Aluminum, coated" [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 8.30 12.0 17.6 26.0 38.0 Depending on the cable gland used: values up to + 30 mm With order code for "Sensor option", option CG or order code for "Measuring tube material", option TD, TG:...
  • Page 58 Proline Promass P 300 Order code for "Housing", option B "Stainless, hygienic" [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 8.30 12.0 17.6 26.0 38.0 Depending on the cable gland used: values up to + 30 mm With order code for "Sensor option", option CG or order code for "Measuring tube material", option TD, TG:...
  • Page 59 Proline Promass P 300 Flange connections Fixed flange EN 1092-1, ASME B16.5, JIS B2220 A0015621 Length tolerance for dimension L in mm: +1.5 / –2.0 Flange according to EN 1092-1 (DIN 2501): PN 40 1.4404 (316/316L) Order code for "Process connection", option D2W...
  • Page 60 Proline Promass P 300 Flange JIS B2220: 20K 1.4404 (316/316L) Order code for "Process connection", option NEW [mm] [mm] [mm] [mm] [mm] [mm] [mm] 4 × Ø15 16.0 4 × Ø15 16.0 4 × Ø19 17.5 4 × Ø19 20.0 8 ×...
  • Page 61 Proline Promass P 300 Fixed flange DIN 11864-2 A0015627  34 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 Flange DIN 11864-2 Form A, for pipe according to DIN 11866 series A, flange with notch 1.4435 (316L)
  • Page 62 Proline Promass P 300 BBS fixed flange A0016910  35 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 BBS flange small (sterile orbital), for pipe according to DIN 11866 series A, female 1.4435 (316L)
  • Page 63 Proline Promass P 300 Neumo BioConnect fixed flange A0016907  36 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 Neumo BioConnect flange (sterile orbital), for pipe according to DIN 11866 series A, flange form R 1.4435 (316L)
  • Page 64 Proline Promass P 300 Clamp connections Tri-Clamp DN 8, 15 (¾", ½") DN 25 (1") ≥ A0023342  37 Engineering unit mm (in) Length tolerance for dimension L in mm: +1.5 / –2.0 Tri-Clamp, for pipe according to DIN 11866 series C 1.4435 (316L)
  • Page 65 Proline Promass P 300 1" Tri-Clamp, for pipe according to DIN 11866 series C 1.4435 (316L) Order code for "Process connection", option FPW Clamp [mm] [in] [mm] [mm] [mm] 50.4 22.10 50.4 22.10 0.76 µm: order code for "Measuring tube material", option BB, TD 0.38 µm electropolished: order code for "Measuring tube material", option BC, TG...
  • Page 66 Proline Promass P 300 Clamp DIN 32676, for pipe according to DIN 11866 series A 1.4435 (316L) Order code for "Process connection", option KPW [mm] [mm] [mm] [mm] 50.5 38.00 64.0 50.00 0.76 µm: order code for "Measuring tube material", option BB, TD 0.38 µm electropolished: order code for "Measuring tube material", option BC, TG...
  • Page 67 Proline Promass P 300 Clamp connection DIN 11864-3 A0016903  38 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 Clamp DIN 11864-3 Form A, with notch, for pipe according to DIN 11866 series A 1.4435 (316L)
  • Page 68 Proline Promass P 300 BBS Quick Connect (sterile orbital), for pipe according to DIN 11866 series A, female 1.4435 (316L) Order code for "Process connection", option BSE [mm] [mm] [mm] [mm] 25.0 10.00 50.5 16.00 50.5 26.00 64.0 38.00 77.5 50.00...
  • Page 69 Proline Promass P 300 Clamp, Neumo BioConnect (sterile orbital), for pipe according to DIN 11866 series A, clamp form R 1.4435 (316L) Order code for "Process connection", option BSA [mm] [mm] [mm] [mm] 25.0 10.00 25.0 16.00 50.4 26.00 64.0 38.00...
  • Page 70 Proline Promass P 300 Eccentric clamp ISO 2852, for pipe according to DIN11866 series B 1.4435 (316L) Order code for "Process connection", option JEC [mm] [mm] [mm] [mm] 64.0 44.30 0.76 µm: order code for "Measuring tube material", option BB, TD 0.38 µm electropolished: order code for "Measuring tube material", option BC, TG...
  • Page 71 Proline Promass P 300 BBS eccentric clamp connection A0016909  42 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 BBS Quick Connect (sterile orbital), eccentric, for pipe according to DIN11866 series A, female 1.4435 (316L)
  • Page 72 Proline Promass P 300 Neumo BioConnect eccentric clamp connection A0016906  43 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 Neumo BioConnect eccentric clamp connection, for pipe according to DIN 11866 series C, clamp form R 1.4435 (316L)
  • Page 73 Proline Promass P 300 Thread DIN 11851, for pipe according to DIN 11866 series A 1.4435 (316L) Order code for "Process connection", option KCW [mm] [mm] [mm] [mm] Rd 34 × ¹⁄₈ Rd 34 × ¹⁄₈ Rd 52 × ¹⁄₆...
  • Page 74 Proline Promass P 300 BBS thread (sterile orbital), for pipe according to DIN 11866 series A 1.4435 (316L) Order code for "Process connection", option BSC [mm] [mm] [mm] [mm] M22 ×1.5 10.00 M30 × 2 16.00 M42 × 2 26.00 M52 ×...
  • Page 75 Proline Promass P 300 Threaded hygienic connection ISO 2853, for pipe according to ISO 2037 1.4435 (316L) Order code for "Process connection", option JSD [mm] [mm] [mm] [mm] 50.65 35.60 64.10 48.60 0.76 µm: order code for "Measuring tube material", option BB, TD 0.38 µm electropolished: order code for "Measuring tube material", option BC, TG...
  • Page 76 Proline Promass P 300 Protective cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553 Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  45 Engineering unit mm (in) External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.
  • Page 77 Proline Promass P 300 External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor. 70 (2.8) A0033597  47 Engineering unit mm (in)

  • Page 78: Dimensions In Us Units

    Proline Promass P 300 Dimensions in US units Compact version A0033783 Order code for "Housing", option A "Aluminum, coated" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 6.65 2.68 3.98 4.25 10.47 14.72 7.87 2.32...
  • Page 79 Proline Promass P 300 Order code for "Housing", option B "Stainless, hygienic" [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 7.20 2.87 4.33 4.25 10.47 14.72 8.15 2.56 5.59 0.33 3.62 ½ 7.20 2.87 4.33...
  • Page 80 Proline Promass P 300 Neumo BioConnect fixed flange A0016907  48 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in inch: +0.06 / –0.08 Neumo BioConnect flange (sterile orbital), for pipe according to DIN 11866 series A, flange form R 1.4435 (316L)
  • Page 81 Proline Promass P 300 Tri-Clamp; for pipe according to DIN 11866 series C 1.4435 (316L) Order code for "Process connection", option FHW Clamp [in] [in] [in] [in] [in] ³⁄₈ ½ 0.98 0.37 14.25 ½ ¾ 0.98 0.62 18.35 1.98 0.87 23.86...
  • Page 82 Proline Promass P 300 Tri-Clamp eccentric; for pipe according to DIN 11866 series C 1.4435 (316L) Order code for Clamp [in] "Process connection", [in] [in] [in] [in] option 2.52 1.87 33.86 30 µin: order code for "Measuring tube material", option BB, TD 15 µin electropolished: order code for "Measuring tube material", option BC, TG...
  • Page 83 Proline Promass P 300 Neumo BioConnect eccentric clamp connection A0016906  51 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in inch: +0.06 / –0.08 Neumo BioConnect eccentric clamp connection, for pipe according to DIN 11866 series C, clamp form R 1.4435 (316L)
  • Page 84 Proline Promass P 300 Threaded hygienic connection SMS 1145 1.4435 (316L) Order code for "Process connection", option SAW [in] [in] [in] [in] ³⁄₈ Rd 40 × ¹⁄₆ 0.89 14.25 ½ Rd 40 × ¹⁄₆ 0.89 18.35 Rd 40 × ¹⁄₆...
  • Page 85 Proline Promass P 300 Protective cover 280 (11.0) 255 (10.0) 146 (5.75) 134 (5.3) 12 (0.47) 30 (1.18) A0029553 Remote display and operating module DKX001 78 (3.07) 136 (5.35) 114 (4.49) 103 (4.06) 7.0 (0.27) A0028921  53 Engineering unit mm (in) External WLAN antenna The external WLAN antenna is not suitable for use in hygienic applications.

  • Page 86: Weight

    Proline Promass P 300 External WLAN antenna mounted with cable The external WLAN antenna can be mounted separately from the transmitter if the transmission/ reception conditions at the transmitter mounting location are poor. 70 (2.8) A0033597  55 Engineering unit mm (in) Weight All values (weight exclusive of packaging material) refer to devices with EN/DIN PN 40 flanges.
  • Page 87 Proline Promass P 300 Window material Order code for "Housing": • Option A "Aluminum, coated": glass • Option B "Stainless, hygienic": polycarbonate Seals Order code for "Housing": Option B "Stainless, hygienic": EPDM and silicone Cable entries/cable glands A0028352  56 Possible cable entries/cable glands Female thread M20 ×...
  • Page 88 Proline Promass P 300 Sensor housing • Acid and alkali-resistant outer surface • Stainless steel 1.4301 (304) Measuring tubes Stainless steel, 1.4435 BN2 (316L) Process connections • Flanges according to EN 1092-1 (DIN 2501) / according to ASME B16.5 / according to JIS B2220: Stainless steel, 1.4404 (316/316L)

  • Page 89: Process Connections

    Proline Promass P 300 Process connections • Fixed flange connections: – EN 1092-1 (DIN 2501) flange – EN 1092-1 (DIN 2512N) flange – ASME B16.5 flange – JIS B2220 flange – DIN 11864-2 Form A flange, DIN 11866 series A, flange with notch –...

  • Page 90: Languages

    Proline Promass P 300 Efficient diagnostics increase measurement availability • Troubleshooting measures can be called up via the device and in the operating tools • Diverse simulation options, logbook for events that occur and optional line recorder functions Can be operated in the following languages: Languages •...

  • Page 91: Remote Operation

    Proline Promass P 300 A0026786  58 Operation via remote display and operating module DKX001 Display and operating elements The display and operating elements correspond to those of the display module →  90. Material The housing material of the display and operating module DKX001 depends on the choice of transmitter housing material.
  • Page 92 Proline Promass P 300 A0028747  59 Options for remote operation via HART protocol (active) Control system (e.g. PLC) Field Communicator 475 Computer with Web browser (e.g. Internet Explorer) for access to the integrated device Web server or computer with an operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...
  • Page 93 Proline Promass P 300 A0028837  61 Options for remote operation via FOUNDATION Fieldbus network Automation system Computer with FOUNDATION Fieldbus network card Industry network High Speed Ethernet FF-HSE network Segment coupler FF-HSE/FF-H1 FOUNDATION Fieldbus FF-H1 network Power supply FF-H1 network...
  • Page 94 Proline Promass P 300 A0028838  63 Options for remote operation via PROFIBUS PA network Automation system Computer with PROFIBUS network card PROFIBUS DP network Segment coupler PROFIBUS DP/PA PROFIBUS PA network T-box Measuring device Via Modbus RS485 protocol This communication interface is available in device versions with a Modbus-RS485 output.
  • Page 95 Proline Promass P 300 Star topology A0032078  65 Options for remote operation via EtherNet/IP network: star topology Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.
  • Page 96 Proline Promass P 300 Star topology A0026545  67 Options for remote operation via PROFINET network: star topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...

  • Page 97: Service Interface

    Proline Promass P 300 Service interface Via service interface (CDI-RJ45) A point-to-point connection can be established to configure the device onsite. With the housing open, the connection is established directly via the service interface (CDI-RJ45) of the device. An adapter for RJ45 and the M12 connector is optionally available: Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"...

  • Page 98: Network Integration

    Proline Promass P 300 Function WLAN: IEEE 802.11 b/g (2.4 GHz) • Access point with DHCP server (default setting) • Network Encryption WPA2-PSK AES-128 (in accordance with IEEE 802.11i) Configurable WLAN channels 1 to 11 Degree of protection IP67 Available antennas •...

  • Page 99: Supported Operating Tools

    Proline Promass P 300 Supported operating tools Different operating tools can be used for local or remote access to the measuring device. Depending on the operating tool used, access is possible with different operating units and via a variety of interfaces.

  • Page 100: Historom Data Management

    Proline Promass P 300 – Flash firmware version for device firmware upgrade, for instance – Download driver for system integration – Visualize up to 1000 saved measured values (only available with the Extended HistoROM application package →  105) Web server special documentation →  111 HistoROM data management The measuring device features HistoROM data management.

  • Page 101: Certificates And Approvals

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system meets the EMC requirements of the "Australian Communications and Media C-Tick symbol Authority (ACMA)".
  • Page 102 Proline Promass P 300 Ex db eb Category Type of protection II1/2G Ex db eb ia IIC T6…T1 Ga/Gb Ex db eb ia IIB T6…T1 Ga/Gb II2G Ex db eb ia IIC T6…T1 Gb Ex db eb ia IIB T6…T1 Gb...

  • Page 103: Sanitary Compatibility

    Proline Promass P 300 Sanitary compatibility • 3-A approval Only devices with the order code for "Additional approval", option LP "3A" have 3-A approval. • EHEDG-tested Only devices with the order code for "Additional approval", option LT "EHEDG" have been tested and meet the requirements of the EHEDG.

  • Page 104: Pressure Equipment Directive

    Directive equal to DN 25 (1"), this is neither possible nor necessary. • With the identification PED/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms conformity with the "Essential Safety Requirements" specified in Appendix I of the Pressure Equipment Directive 2014/68/EU.

  • Page 105: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 106: Heartbeat Technology

    →  111. Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 107: Device-Specific Accessories

    Proline Promass P 300 Device-specific accessories For the transmitter Accessories Description Proline 300 transmitter Transmitter for replacement or storage. Use the order code to define the following specifications: • Approvals • Output • Input • Display/operation • Housing • Software ...

  • Page 108: Communication-Specific Accessories

    Is used to stabilize the temperature of the fluids in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as fluids.  If using oil as a heating medium, please consult with Endress+Hauser. • If ordered together with the measuring device: order code for "Enclosed accessories"...

  • Page 109: Service-Specific Accessories

    Accessories Description Applicator Software for selecting and sizing Endress+Hauser measuring devices: • Choice of measuring devices for industrial requirements • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, flow velocity and accuracy.

  • Page 110: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation...

  • Page 111: Registered Trademarks

    Proline Promass P 300 Remote display and operating module DKX001 Contents Documentation code ATEX/IECEx Ex i XA01494D ATEX/IECEx Ex ec XA01498D cCSAus IS XA01499D cCSAus Ex nA XA01513D INMETRO Ex i XA01500D INMETRO Ex ec XA01501D NEPSI Ex i XA01502D...
  • Page 112 Proline Promass P 300 PROFINET® Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany TRI-CLAMP® Registered trademark of Ladish & Co., Inc., Kenosha, USA www.addresses.endress.com...
