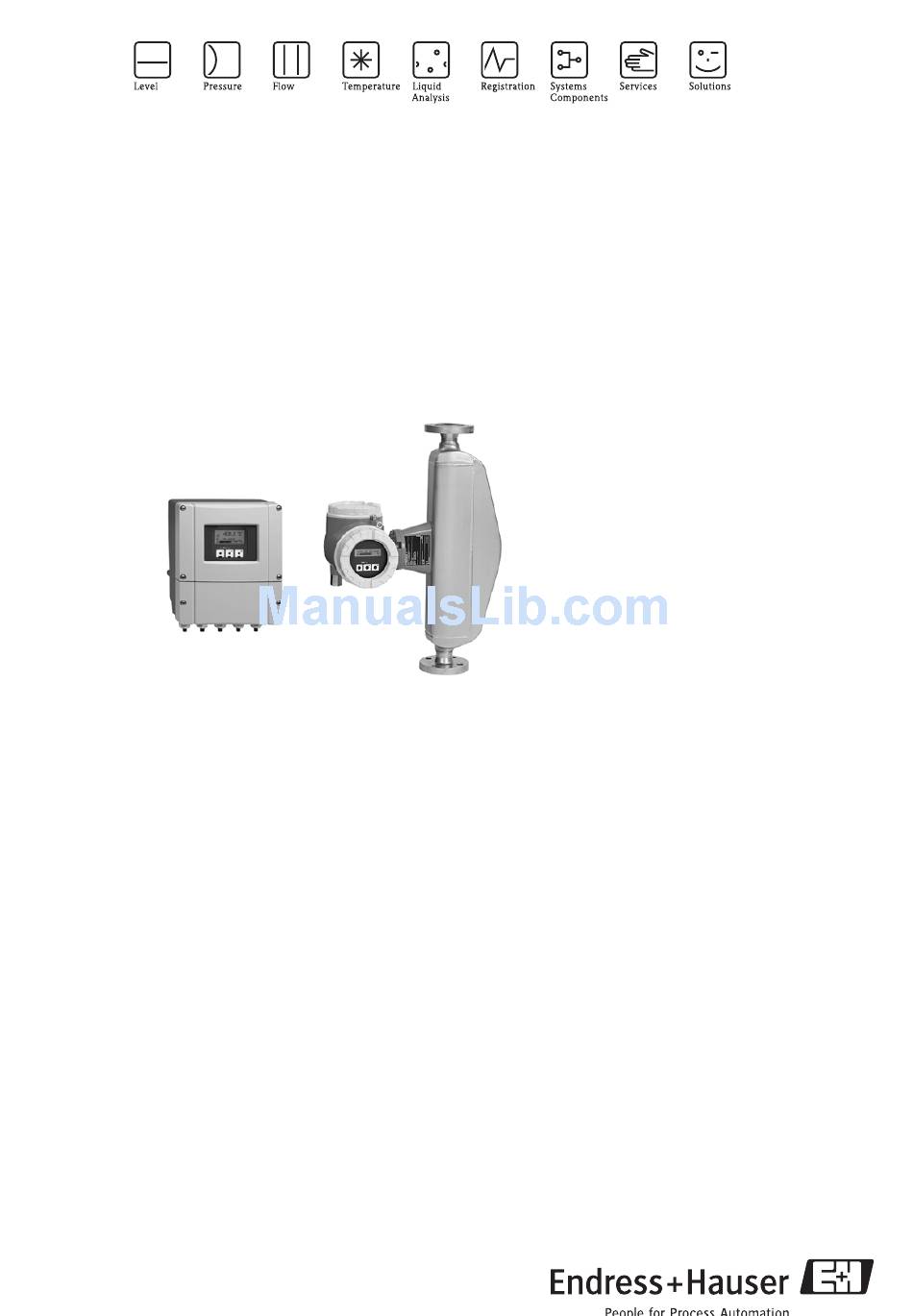

Technical Information
Proline Promass 80H, 83H
Coriolis Mass Flow Measuring System
The single-tube system with a "fit-and-forget" design:
does not harm the material being measured – chemical-resistant
materials
Application
The Coriolis measuring principle operates independently
of physical fluid properties, such as viscosity and density.
• Extremely accurate measurement of liquids such as
oils, lubricants, liquefied gases, paints, cleaning agents
and solvents
• Fluid temperatures up to +200 °C
• Process pressures up to 40 bar
• Mass flow measurement up to 70 t/h
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS
Connection to all common process control systems:
• HART, PROFIBUS PA/DP, FOUNDATION Fieldbus,
MODBUS
Relevant safety aspects:
• Secondary containment (up to 25 bar), Pressure
Equipment Directive, SIL-2
TI074D/06/en/12.06
71036056
Your benefits
The Promass measuring devices make it possible to
simultaneously record several process variables
(mass/density/temperature) for various process
conditions during measuring operation.
The uniform Proline transmitter concept includes:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching and concentration
measurement for extended range of application
• Diagnostic ability and data back-up for increased
process quality
The Promass sensors, tried and tested in over
100000 applications, offer:
• Multivariable flow measurement in compact design
• Insensitivity to vibrations thanks to balanced single-
tube measuring system
• Efficient protection against forces from piping thanks
to robust construction
• Easy installation without taking inlet and outlet runs
into account
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promass 80H
Summary of Contents for Endress+Hauser Proline Promass 80H
-
Page 1: Technical Information
Technical Information Proline Promass 80H, 83H Coriolis Mass Flow Measuring System The single-tube system with a "fit-and-forget" design: does not harm the material being measured – chemical-resistant materials Application Your benefits The Coriolis measuring principle operates independently The Promass measuring devices make it possible to of physical fluid properties, such as viscosity and density. -
Page 2: Table Of Contents
Proline Promass 80H, 83H Table of contents Function and system design..... 3 Mechanical construction ..... . 21 Measuring principle . -
Page 3: Function And System Design
Proline Promass 80H, 83H Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present when both translational and rotational movements are superimposed. = 2 · Δm (v · ω) = Coriolis force Δm = moving mass... -
Page 4: Measuring System
Proline Promass 80H, 83H Measuring system The measuring system consists of a transmitter and a sensor. Two versions are available: • Compact version: transmitter and sensor form a mechanical unit. • Remote version: transmitter and sensor are mounted physically separate from one another. -
Page 5: Input
Proline Promass 80H, 83H • Universal sensor for fluid temperatures up to 200 °C. Documentation No. • Nominal diameters DN 8 to 250 TI 053D/06/en • Tube material: stainless steel or Alloy C-22 a0003673 F (High-temperature) • Universal high-temperature sensor for fluid temperatures up to 350 °C. -
Page 6: Operable Flow Range
Proline Promass 80H, 83H Operable flow range Greater than 1000: 1. Flow rates above the preset full scale value do not overload the amplifier, i.e. the totalizer values are registered correctly. Input signal Status input (auxiliary input): U = 3 to 30 V DC, R = 5 kΩ, galvanically isolated. - Page 7 Proline Promass 80H, 83H Promass 83 Current output: Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s), full scale value selectable, temperature coefficient: typically 0.005% o.f.s./°C, resolution: 0.5 μA < 700 Ω (for HART: R ≥ 250 Ω) •...
-
Page 8: Signal On Alarm
Proline Promass 80H, 83H FOUNDATION Fieldbus interface: • FOUNDATION Fieldbus H1, IEC 61158-2, galvanically isolated • Data transmission rate: 31.25 kBit/s • Current consumption: 12 mA • Permitted supply voltage: 9 to 32 V • Error current FDE (Fault Disconnection Electronic): 0 mA •... -
Page 9: Power Supply
Proline Promass 80H, 83H Power supply Electrical connection Measuring unit b d/(g) HART* PROFIBUS PA* FOUNDATION Fieldbus* – 27 PA(–)/FF(–) + 26 PA(+)/FF(+) – – 25 + 24 – – 23 + 22 – – 21 + 20 N (L-) -
Page 10: Electrical Connection, Terminal Assignment
Proline Promass 80H, 83H Electrical connection, Promass 80 terminal assignment Terminal No. (inputs/outputs) Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) 80***-***********A Frequency output Current output, HART... -
Page 11: Electrical Connection Remote Version
Proline Promass 80H, 83H Terminal No. (inputs/outputs) Order version 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) Current output 83***-***********M Status input Frequency output 2 Frequency output 1 HART 83***–***********N... -
Page 12: Cable Specification
Proline Promass 80H, 83H Connecting cable for remote version: • Cable entry M20 x 1.5 (8 to 12 mm) • Thread for cable entries, 1/2" NPT, G 1/2" Cable specification • 6 x 0.38 mm (PVC cable with common shield and individually shielded cores •... - Page 13 Proline Promass 80H, 83H Zero point stability: Maximum full scale value Zero point stability [kg/h] [kg/h] 2000 0.20 6500 0.65 18000 45000 70000 Sample calculation ±1.0 ±0.5 Promass 83 Promass 80 ±0.2 18 t/h a0004611 Max. measured error in % of measured value (example: Promass 80H, 83H/ DN 25)
-
Page 14: Repeatability
Proline Promass 80H, 83H Repeatability Mass flow (liquid): ±0.05% ± [1/2 ⋅(zero point stability / measured value) ⋅100]% o.r. Volume flow (liquid): ±0.20% ± [1/2 ⋅(zero point stability / measured value) ⋅100]% o.r. o.r. = of reading Zero point stability: see "Max. measured error" → Page 12 ff. -
Page 15: Operating Conditions: Installation
Proline Promass 80H, 83H Operating conditions: Installation Installation instructions Note the following points: • No special measures such as supports are necessary. External forces are absorbed by the construction of the instrument, for example the secondary containment. • The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by pipe vibrations. - Page 16 Proline Promass 80H, 83H Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction of fluid flow through the pipe. Vertical (view V) Recommended orientation with upward direction of flow. When fluid is not flowing, entrained solids will sink down and gases will rise away from the measuring tube.
- Page 17 – Relative magnetic permeability μ – Plate thickness d ≥ 0.35 mm • Information on permitted temperature ranges → Page 19 Special heating jackets, which can be ordered separately from Endress+Hauser as an accessory, are available for the sensors. Endress+Hauser...
-
Page 18: Inlet And Outlet Runs
Proline Promass 80H, 83H Zero point adjustment All measuring devices are calibrated to state-of-the-art technology. The zero point determined in this way is imprinted on the nameplate. Calibration takes place under reference conditions. → Page 12 ff. Therefore, a zero point adjustment is generally not required! Experience shows that the zero point adjustment is advisable only in special cases: •... -
Page 19: Operating Conditions: Environment
Proline Promass 80H, 83H Operating conditions: Environment Ambient temperature range Standard: –20 to +60 °C (sensor, transmitter) Optional: –40 to +60 °C (sensor, transmitter) Note! • Install the device at a shady location. Avoid direct sunlight, particularly in warm climatic regions. -
Page 20: Pressure Loss
Proline Promass 80H, 83H Pressure loss Pressure loss depends on the fluid properties and on the flow rate. The following formulae can be used to approximately calculate the pressure loss: 4 · m Re = Reynolds number · d · ·... -
Page 21: Mechanical Construction
Proline Promass 80H, 83H Mechanical construction Design / dimensions Dimensions: → Page 21 Field housing compact version, powder-coated die-cast aluminum → Page 22 Transmitter compact version, stainless steel field housing → Page 22 Dimensions: Remote version → Page 23 Transmitter connection housing remote version (II2G/Zone 1) →... - Page 22 Proline Promass 80H, 83H Transmitter compact version, stainless steel field housing a0002245 All dimensions in [mm] Dimensions: Remote version a0002516 118.5 137.5 118.5 137.5 118.5 137.5 118.5 137.5 118.5 137.5 Endress+Hauser...
- Page 23 Proline Promass 80H, 83H Transmitter connection housing remote version (II2G/Zone 1) Nicht-eigensichere Stromkreise durch IP40-Abdeckung geschützt Non-intrinsically safe circuits Ip40 protected Boucles de courant sans sécurité intrinsèque protégées par Ip40 a0002128 ∅ 8.6 (M8) * Blind version (without local display)
- Page 24 Proline Promass 80H, 83H Transmitter wall-mount housing (non Ex-zone and II3G/Zone 2) a0001150 90.5 159.5 >50 81.5 11.5 8xM5 All dimensions in [mm] Endress+Hauser...
- Page 25 Proline Promass 80H, 83H Flange connections EN (DIN), ASME B16.5, JIS +1.5 –2.0 a0003287 Flange EN 1092-1 (DIN 2501 / DIN 2512N ) / PN 40: 1.4301/304, fluid wetted parts: zirconium 702 Surface roughness (flange): EN 1092-1 Form B1 (DIN 2526 Form C), Ra 6.3 to 12.5 μm 4 x Ø14...
-
Page 26: Weight
Proline Promass 80H, 83H Flange JIS B2238 / 20K: 1.4301/304, fluid wetted parts: zirconium 702 Surface roughness (flange): Ra 3.2 to 6.3 μm 4 x Ø15 15.00 8.51 4 x Ø15 15.00 12.00 4 x Ø19 25.00 17.60 4 x Ø19 40.00... -
Page 27: Materials
Proline Promass 80H, 83H Materials Transmitter housing: • Compact housing: stainless steel 1.4301/304 • Compact housing: powder coated die-cast aluminum • Wall-mount housing: powder coated die-cast aluminum • Remote field housing: powder-coated die-cast aluminum Sensor housing / containment: • Acid and alkali-resistant outer surface •... -
Page 28: Process Connections
Proline Promass 80H, 83H Flange connection to JIS B2238 Flange material: 1.4301/304 Fluid wetted parts: Zirconium 702 [bar] [°C] -60 -40 -20 80 100 120 140 180 200 a0003324-en Process connections Welded process connections) • Flanges EN 1092-1 (DIN 2501), ASME B16.5, JIS B2238... -
Page 29: Certificates And Approvals
CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)"... -
Page 30: Functional Safety
Promass83***-************6 Ordering information The Endress +Hauser service organization can provide detailed ordering information and information on the order codes on request. Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Endress+Hauser... -
Page 31: Documentation
® MODBUS Registered trademark of the MODBUS Organization ® ® ® ® ® HistoROM™, S-DAT , T-DAT™, F-CHIP , FieldCare , ToF Tool - Fieldtool Package, Fieldcheck ® Applicator Registered or registration-pending trademarks of Endress+Hauser Flowtec AG, Reinach, CH Endress+Hauser... - Page 32 International Headquarters Endress+Hauser GmbH+Co. KG Instruments International Colmarer Str. 6 79576 Weil am Rhein Deutschland Tel. +49 76 21 9 75 02 Fax +49 76 21 9 75 34 5 www.endress.com info@ii.endress.com TI074D/06/en/12.06 71036056 FM+SGML6.0 ProMoDo...
