Endress+Hauser Proline Promass 80E Technical Information

Endress+Hauser Proline Promass 80E Technical Information

Coriolis flowmeter
Hide thumbs Also See for Proline Promass 80E:
Table of Contents

Advertisement

Quick Links

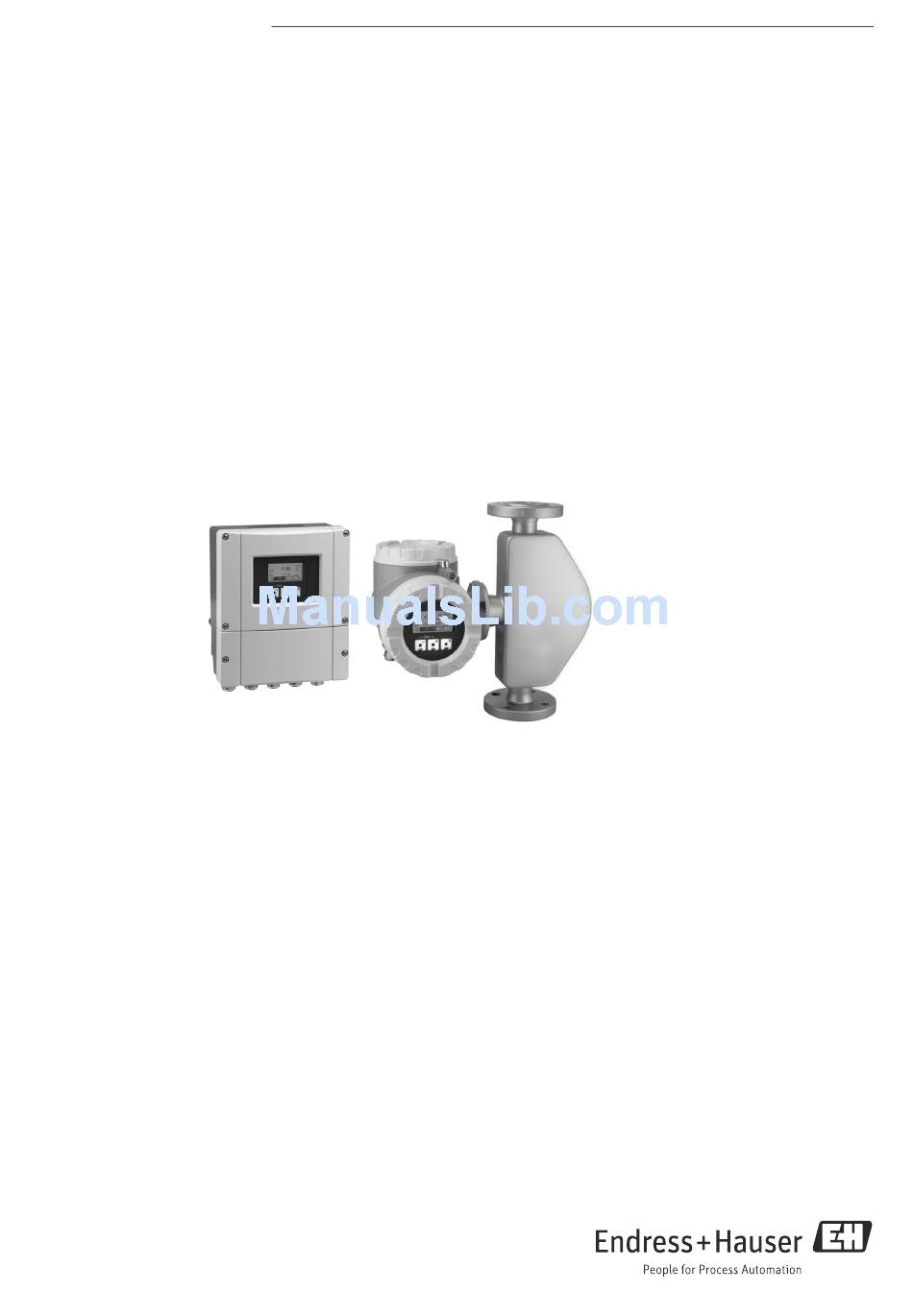

TI00061D/06/EN/14.13
71230277
Minimized total cost of ownership and a compact/remote transmitter
Application
• Measuring principle operates independently of physical
fluid properties such as viscosity or density
• Highly accurate measurement of liquids and gases for a
wide range of standard applications
Device properties
• Compact dual-tube system
• Medium temperature up to +140 °C (+284 °F)
• Process pressure: up to 100 bar (1450 psi)
• 4-line backlit display with touch control (Promass 83)
• Device in compact or remote version
• HART,PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
(Promass 83)
Products

Technical Information

Proline Promass 80E, 83E
Coriolis flowmeter
Solutions
Your benefits
• Cost-effective – multi-purpose device; an alternative to
conventional volumetric flowmeters
• Fewer process measuring points – multivariable
measurement (flow, density, temp)
• Space-saving installation – no in/outlet run needs
• Safe operation – display provides easy readable process
information
• Quality – software for filling & dosing, density &
concentration, advanced diagnostics (Promass 83)
• Automatic recovery of data for servicing
• Fully industry compliant – IEC/EN/NAMUR
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass 80E

Summary of Contents for Endress+Hauser Proline Promass 80E

  • Page 1: Technical Information

    Products Solutions Services TI00061D/06/EN/14.13 71230277 Technical Information Proline Promass 80E, 83E Coriolis flowmeter Minimized total cost of ownership and a compact/remote transmitter Application Your benefits • Measuring principle operates independently of physical • Cost-effective – multi-purpose device; an alternative to...

  • Page 2: Table Of Contents

    Proline Promass 80E, 83E Table of contents Function and system design ..... .3 Pressure-temperature ratings ......19 Rupture disk .

  • Page 3: Function And System Design

    Proline Promass 80E, 83E Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present when both translational and rotational movements are superimposed. = 2 · m (v · ) = Coriolis force m = moving mass...

  • Page 4: Measuring System

    Proline Promass 80E, 83E Measuring system The measuring system consists of a transmitter and a sensor. Two versions are available: • Compact version: transmitter and sensor form a mechanical unit. • Remote version: transmitter and sensor are mounted physically separate from one another.

  • Page 5: Input

    Proline Promass 80E, 83E Input Measured variable • Mass flow (proportional to the phase difference between two sensors mounted on the measuring tube to register a phase shift in the oscillation) • Fluid density (proportional to resonance frequency of the measuring tube) •...

  • Page 6: Operable Flow Range

    Proline Promass 80E, 83E Operable flow range Greater than 1000: 1. Flow rates above the preset full scale value do not overload the amplifier, i.e. the totalizer values are registered correctly. Input signal Status input (auxiliary input) U = 3 to 30 V DC, R = 5 k, galvanically isolated.

  • Page 7: Function Blocks: 6 × Analog Input, 3 × Totalizer

    Proline Promass 80E, 83E Promass 83 Current output Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s), full scale value selectable, temperature coefficient: typically 0.005% o.f.s./°C, resolution: 0.5 μA < 700  (for HART: R  250 ) •...

  • Page 8: Signal On Alarm

    Proline Promass 80E, 83E FOUNDATION Fieldbus interface • FOUNDATION Fieldbus H1, IEC 61158-2, galvanically isolated • Data transmission rate: 31.25 kBit/s • Current consumption: 12 mA • Permitted supply voltage: 9 to 32 V • Error current FDE (Fault Disconnection Electronic): 0 mA •...

  • Page 9: Power Supply

    Proline Promass 80E, 83E Power supply Terminal assignment Promass 80 Terminal No. (inputs/outputs) Order characteristic 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) for "inputs/outputs" Current output, Frequency output...

  • Page 10: Supply Voltage

    Proline Promass 80E, 83E Terminal No. (inputs/outputs) Order characteristic 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) for "inputs/outputs" Current output 1, Status input Relay output Current output 2...

  • Page 11: Electrical Connection

    Proline Promass 80E, 83E Electrical connection b d/(g) HART* PROFIBUS PA* FOUNDATION Fieldbus* PA(–)/FF(–) – 27 PA(+)/FF(+) + 26 – – 25 + 24 – – 23 + 22 – – 21 + 20 N (L-) 2 N (L-) 2...

  • Page 12: Electrical Connection Remote Version

    Proline Promass 80E, 83E Electrical connection remote version S1 S1 S2 S2 GNDTM TM TT TT 9 10 11 12 41 42 9 10 11 12 41 42 S1 S1 S2 S2 GNDTM TM TT TT a0003681 Connecting the remote version ...

  • Page 13: Performance Characteristics

    Proline Promass 80E, 83E Performance characteristics Reference operating • Error limits following ISO/DIN 11631 conditions • Water, typically +15…+45 °C (+59…+113 °F); 2…6 bar (29…87 psi) • Data according to calibration protocol • Accuracy based on accredited calibration rigs according to ISO 17025 Maximum measured error The following values refer to the pulse/frequency output.

  • Page 14: Repeatability

    Proline Promass 80E, 83E Repeatability Base repeatability Design fundamentals  ä 14.  o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Mass flow and volume flow (liquids) Promass 83E: • ±0.075% o.r. • Calibration option mass flow 0.1%: ±0.05% o.r.
  • Page 15 Proline Promass 80E, 83E Calculation of the repeatability depending on flowrate Flowrate (in flow units consistent with the zero Repeatability in % o.r. point stability value  ä 13) ⋅ ½ ZeroPoint ³ ⋅ BaseRepeat A0021340 A0021335 ⋅ ½ ZeroPoint ZeroPoint ⋅...

  • Page 16: Installation

    Proline Promass 80E, 83E Installation Mounting location Entrained air or gas bubbles in the measuring tube can result in an increase in measuring errors. Therefore, avoid the following mounting locations in the pipe installation: • Highest point of a pipeline. Risk of air accumulating.

  • Page 17: Orientation

    Proline Promass 80E, 83E Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction of fluid flow through the pipe). Vertical (Fig. V) Recommended orientation with upward direction of flow. When fluid is not flowing, entrained solids will sink down and gases will rise away from the measuring tube.

  • Page 18: Inlet And Outlet Runs

    Proline Promass 80E, 83E Horizontal installation When using a bent measuring tube and horizontal installation, the position of the sensor has to be matched to the fluid properties! a0004581 Horizontal installation for sensors with a bent measuring tube Not suitable for fluids with entrained solids. Risk of solids accumulating.

  • Page 19: Process

    Proline Promass 80E, 83E Process Fluid temperature range Sensor –40 to +140 °C (–40 to +284 °F)  Fluid density range 0 to 5000 kg/m³ (0 to +312 lb/ft Fluid pressure range Flanges (nominal pressure) • according to DIN PN 40 to 100 •...
  • Page 20 Proline Promass 80E, 83E Flange connection according to ASME B16.5 Flange material: 1.4404/316L [psi] [bar] 1400 1200 Class 600 1000 Class 300 Class 150 [°C] [°F] A0020973-EN Flange connection to JIS B2220 Flange material: SUS 316L [psi] [bar] 1000 [°C] [°F]...
  • Page 21 Proline Promass 80E, 83E Tri-Clamp process connection The Clamp connections are suited up to a maximum pressure of 16 bar (232 psi). Please observe the operating limits of the clamp and seal used as they could be under 16 bar (232 psi). The clamp and the seal are not included in the scope of supply.

  • Page 22: Rupture Disk

    Proline Promass 80E, 83E Flange connection to DIN 11864-2 Form A (flat flange with groove) Flange material: 1.4404/316L [psi] [bar] DN 8...40 DN 50…80 [°C] [°F] A0020978-EN Threaded hygienic connection to ISO 2853 Connection material: 1.4404/316L [psi] [bar] [°C] [°F]...

  • Page 23: System Pressure

    – Relative magnetic permeability μ – Plate thickness d  0.35 mm (d 0.014") • Information on permitted temperature ranges  ä 19 Special heating jackets, which can be ordered separately from Endress+Hauser as an accessory, are available for the sensors. Endress+Hauser...

  • Page 24: Mechanical Construction

    Proline Promass 80E, 83E Mechanical construction Design, dimensions Dimensions:  ä 25 Field housing compact version, powder-coated die-cast aluminum  ä 26 Field housing compact version (II2G/Zone 1), powder-coated die-cast aluminum  ä 27 Transmitter connection housing remote version (II2G/Zone 1) Transmitter remote version, wall-mount housing (non hazardous area and II3G / zone 2) ...
  • Page 25 Proline Promass 80E, 83E Field housing compact version, powder-coated die-cast aluminum A0007638 Dimensions SI units dependent on respective process connection * Blind version (without local display) All dimensions in [mm] Dimensions in US units 3/8" 9.08 8.28 7.48 6.72 6.40 8.82...
  • Page 26 Proline Promass 80E, 83E Field housing compact version (II2G/Zone 1), powder-coated die-cast aluminum Nicht-eigensichere Nicht-eigensichere Stromkreise durch Stromkreise durch IP40-Abdeckung geschützt IP40-Abdeckung geschützt Non-intrinsically safe Non-intrinsically safe circuits Ip40 protected circuits Ip40 protected Boucles de courant Boucles de courant sans sécurité intrinsèque sans sécurité...
  • Page 27 Proline Promass 80E, 83E Transmitter connection housing remote version (II2G/Zone 1) Nicht-eigensichere Stromkreise durch IP40-Abdeckung geschützt Non-intrinsically safe circuits Ip40 protected Boucles de courant sans sécurité intrinsèque protégées par Ip40 A0002128 Dimensions in SI units F  8.6 (M8) * Blind version (without local display)
  • Page 28 Proline Promass 80E, 83E Transmitter remote version, wall-mount housing (non hazardous area and II3G / zone 2) a0001150 Dimensions (SI units) 90.5 159.5 > 50 81.5 11.5 8 × M5 2 ×  6.5 Securing screw for wall mounting: M6 (screw head max. 10.5 mm)
  • Page 29 Proline Promass 80E, 83E Sensor remote version, connection housing a0007637 Dimensions in SI units All dimensions in [mm] Dimensions in US units 3/8" 5.08 4.02 6.54 ½" 5.08 4.02 6.61 1" 5.08 4.02 6.81 1½" 5.08 4.02 7.05 2" 5.08 4.02...
  • Page 30 Proline Promass 80E, 83E Process connections in SI units Flange connections EN (DIN), ASME B16.5, JIS +1.5 (+0.06) – (–0.08) A0021285 Dimension unit in mm (in) Flange connections EN (DIN) Flange according to EN 1092-1 (DIN 2501 / DIN 2512N / PN 40: 1.4404/316L...
  • Page 31 Proline Promass 80E, 83E Flange EN 1092-1 (DIN 2501 / DIN 2512N ) / PN 100: 1.4404/316L Surface roughness (flange): EN 1092-1 Form B2 (DIN 2526 Form E), Ra 0.8 to 3.2 μm 4 × Ø14 17.3 5.35 4 × Ø14 17.3...
  • Page 32 Proline Promass 80E, 83E Flange connections JIS Flange JIS B2220 / 10K: SUS 316L 4 × Ø19 26.0 8 × Ø19 40.5 All dimensions in [mm] Flange JIS B2220 / 20K: SUS 316L 4 × Ø15 5.35 4 × Ø15 8.30...
  • Page 33 Proline Promass 80E, 83E VCO connections +1.5 (+0.06) –2.0 (–0.08) A0021286 Dimension unit in mm (in) VCO connections: 1.4404/316L 1" AF 10.2 5.35 1½" AF 15.7 8.30 All dimensions in [mm] Endress+Hauser...
  • Page 34 Proline Promass 80E, 83E Tri-Clamp +1.5 (+0.06) –2.0 (–0.08) A0021287 Dimension in mm (in) 1", 1½", 2" -Tri-Clamp: 1.4404/316L Clamp 1" 50.4 22.1 5.35 1" 50.4 22.1 8.30 1" 50.4 22.1 12.0 1½" 50.4 34.8 17.6 2" 63.9 47.5 26.0 3"...
  • Page 35 Proline Promass 80E, 83E DIN 11851 (threaded hygienic connection) +1.5 (+0.06) –2.0 (–0.08) A0021288 Dimension in mm (in) Threaded hygienic connection DIN 11851: 1.4404/316L Rd 34 × 1/8" 5.35 Rd 34 × 1/8" 8.30 Rd 52 × 1/6" 12.0 Rd 65 × 1/6"...
  • Page 36 Proline Promass 80E, 83E DIN 11864-2 Form A (flat flange with groove) +1.5 (+0.06) –2.0 (–0.08) A0021294 Dimension unit in mm (in) DIN 11864-2 Form A (flat flange with groove): 1.4404/316L 4 × Ø9 5.35 4 × Ø9 8.30 4 × Ø9 12.0...
  • Page 37 Proline Promass 80E, 83E ISO 2853 (threaded hygienic connection) +1.5 (+0.06) –2.0 (–0.08) A0021290 Dimension in mm (in) Threaded hygienic connection ISO 2853: 1.4404/316L  37.13 22.6 5.35 37.13 22.6 8.30 37.13 22.6 12.0 50.68 35.6 17.6 64.16 48.6 26.0 91.19...
  • Page 38 Proline Promass 80E, 83E SMS 1145 (threaded hygienic connection) +1.5 (+0.06) –2.0 (–0.08) A0021291 Dimension unit in mm (in) Threaded hygienic connection SMS 1145: 1.4404/316L Rd 40 × 1/6" 22.5 5.35 Rd 40 × 1/6" 22.5 8.30 Rd 40 × 1/6"...
  • Page 39 Proline Promass 80E, 83E Process connections in US units Flange connections ASME B16.5 +1.5 (+0.06) – (–0.08) A0021285 Dimension unit in mm (in) Flange according to ASME B16.5 / Cl 150: 1.4404/316L 3/8" 3.50 9.13 4 × Ø0.62 0.44 2.38 0.62...
  • Page 40 Proline Promass 80E, 83E Flange according to ASME B16.5 / Cl 600: 1.4404/316L 3/8" 3.75 10.28 4 × Ø0.62 0.81 2.62 0.55 0.21 ½" 3.75 11.61 4 × Ø0.62 0.81 2.62 0.55 0.33 1" 4.88 14.96 4 × Ø0.75 0.94 3.50...
  • Page 41 Proline Promass 80E, 83E Tri-Clamp +1.5 (+0.06) –2.0 (–0.08) A0021287 Dimension in mm (in) 1", 1½", 2" -Tri-Clamp: 1.4404/316L Clamp 3/8" 1" 1.98 9.02 0.87 0.21 ½" 1" 1.98 10.75 0.87 0.33 1" 1" 1.98 12.76 0.87 0.47 1½" 1½"...

  • Page 42: Rupture Disc

    Proline Promass 80E, 83E SMS 1145 (threaded hygienic connection) +1.5 (+0.06) –2.0 (–0.08) A0021291 Dimension unit in mm (in) Threaded hygienic connection SMS 1145: 1.4404/316L 3/8" Rd 40 × 1/6" 9.02 0.89 0.21 ½" Rd 40 × 1/6" 10.75 0.89 0.33...

  • Page 43: Weight

    Proline Promass 80E, 83E Weight • Compact version: see table below • Remote version – Sensor: see table below – Wall-mount housing: 5 kg (11 lb) Weight in SI units DN [mm] Compact version Remote version (sensor) All values (weight) refer to devices with EN/DIN PN 40 flanges.

  • Page 44: Process Connections

    Proline Promass 80E, 83E Process connections Welded process connections • Flanges: according to EN 1092-1 (DIN 2501), Namur lengths in accordance with NE 132, according to ASME B16.5, JIS B2220 • VCO connections • Sanitary connections: Tri-Clamp, threaded hygienic connections (DIN 11851, SMS 1145, ISO 2853,...

  • Page 45: Certificates And Approvals

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)"...

  • Page 46: Ordering Information

    • Ability to order directly in the Endress+Hauser Online Shop Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 47: Communication-Specific Accessories

    Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser’s FDT-based plant asset management tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via a service interface or via the service interface FXA193.

  • Page 48: System Components

    Registered trademark of the Fieldbus FOUNDATION, Austin, USA ® Modbus Registered trademark of the SCHNEIDER AUTOMATION, INC. ® ® ® ® ® Applicator , FieldCare , Fieldcheck , HistoROM™, F-CHIP , S-DAT , T-DAT™ Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
  • Page 49 Proline Promass 80E, 83E Endress+Hauser...
  • Page 50 www.addresses.endress.com...
