Maintenance

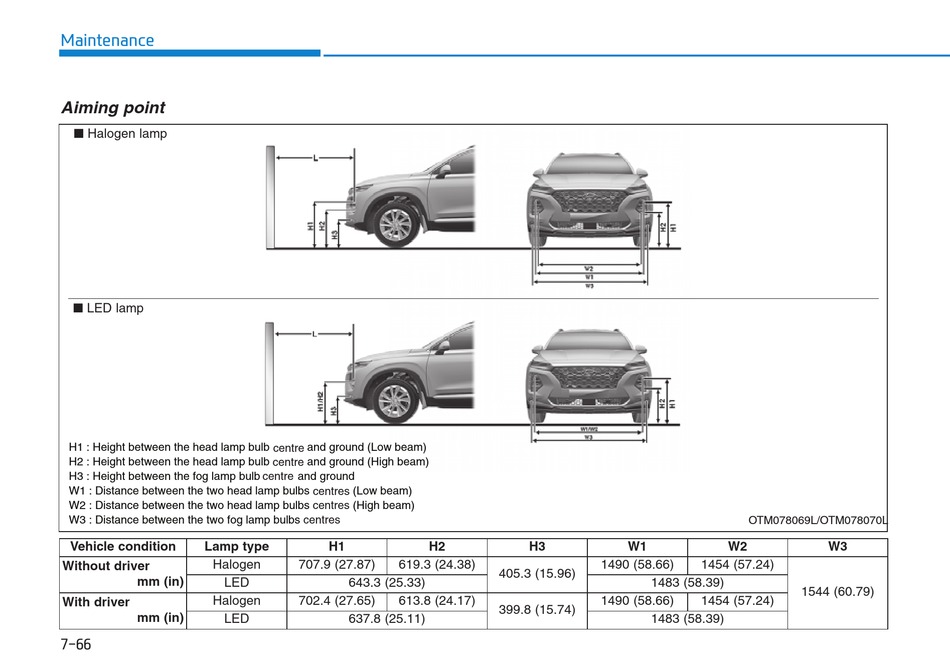

Aiming point
■ Halogen lamp
■ LED lamp
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
Vehicle condition Lamp type
Halogen
Without driver
mm (in)
LED
Halogen
With driver
mm (in)
LED
7-66
centre
centre
centre
centres
centres
centres
H1 H2
707.9 (27.87) 619.3 (24.38)
643.3 (25.33)
702.4 (27.65) 613.8 (24.17)
637.8 (25.11)
H3 W1
1490 (58.66)
405.3 (15.96)
1483 (58.39)
1490 (58.66)
399.8 (15.74)
1483 (58.39)
OTM078069L/OTM078070L
W2 W3
1454 (57.24)
1544 (60.79)
1454 (57.24)
