Hyundai Santa Fe Owner's Manual page 467

Driving your vehicle

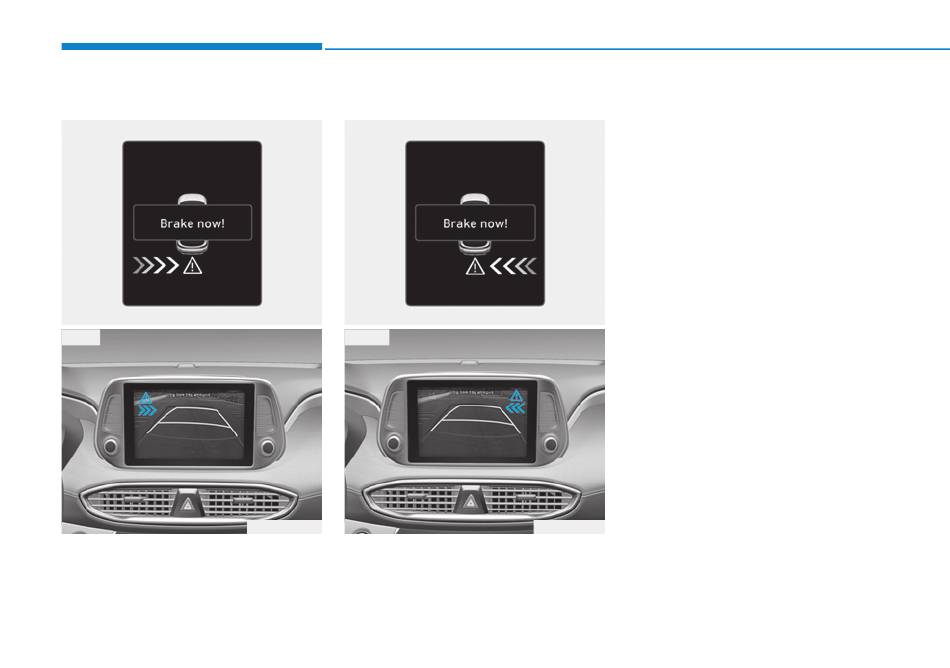

Rear Cross-Traffic Collision-Avoidance (RCCA) System
■ Left
■ Left
5-138
■ Right
OTM058085R
■ Right
OTM058098L
If the risk of collision is detected
whilst the RCCW is generated, brake
is controlled. The instrument cluster
will inform the driver of the brake
control. If the rear view monitor sys-
tem is in activation, a message will
also appear on the audio or AVN
screen.
After the brake control the driver
must immediately depress the brake
pedal and check the surroundings.
- The brake activation by the system
lasts for about 2 seconds only.
OTM058086R
The driver must pay attention as
the brake is disengaged after the
time.
- The brake control by the system is
cancelled if the driver depresses
the pedal with sufficient power.
- Brake control is activated once for
each right/left approach after shift-
ing the shift lever to R (Reverse).
OTM058099L
