Saving Configuration
Files
4-20
This option allows the user to save a configuration file and then load
it onto the system for future use.
Note: To activate the selected configuration, the system must be
reset.
To save the current configuration file:
1. Select Configuration on the Main Screen. A screen similar to the
one shown below in Figure 4-9 appears.
2. Type a file name under Save Configuration File and click SAVE.
The name will appear under Load Configuration File.
3. To load or delete an existing configuration file, highlight the name
under Load Configuration File and click LOAD or DELETE as
desired.
4. To exit the Configuration screen click OK.

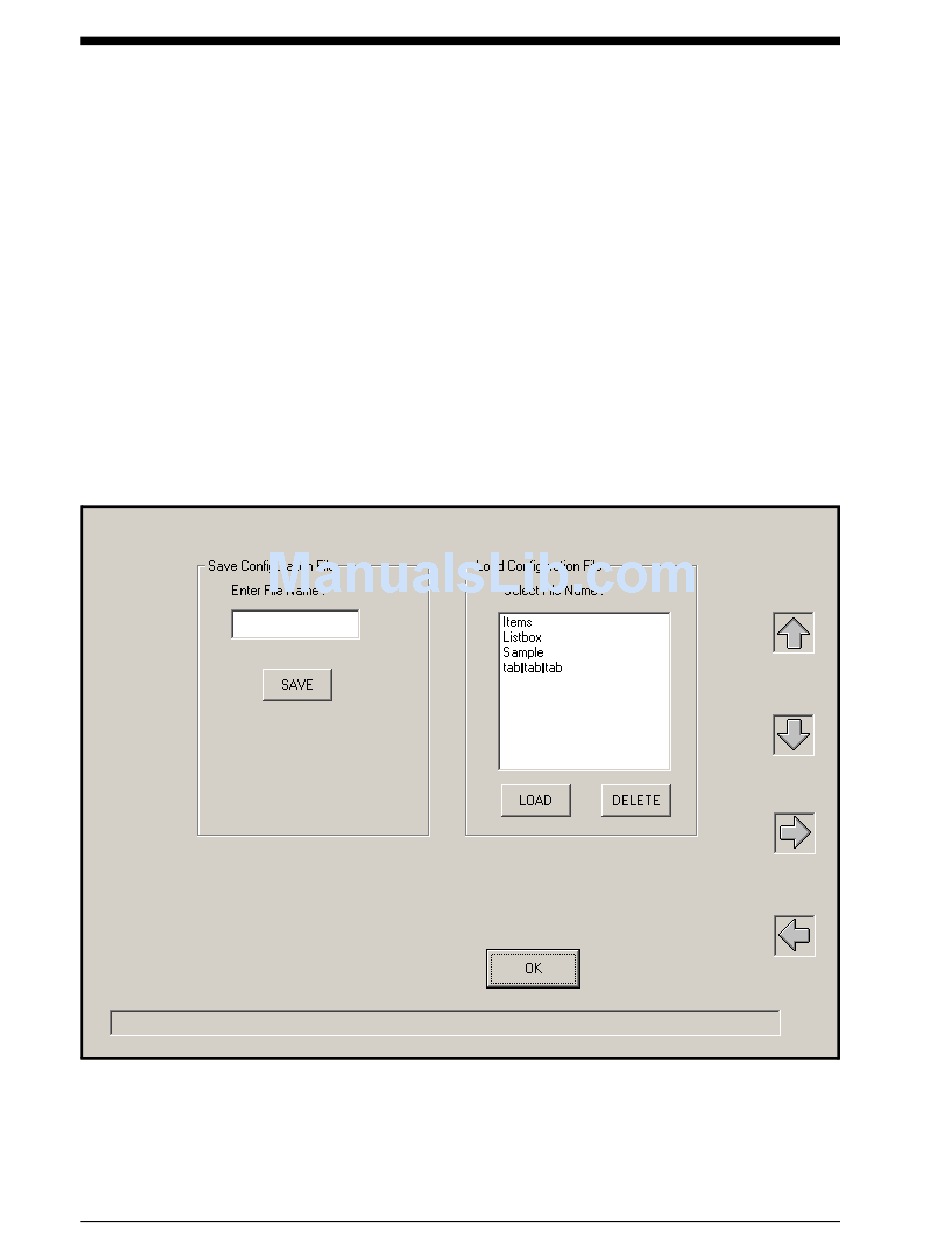

Figure 4-9: Configuration Screen
