Wiring the Wall-Mount

Optional Ethernet
LAN Connector
Gland for
I/O Wiring
Figure 2-9: Wall-Mount Bottom Panel (viewed from under the unit)
Installation
All connections to the wall-mount unit are made through the panel at
the bottom of the case as shown in Figure 2-8 below. Any I/O cabling
is brought into the unit through a gland at the lower left of the case
and connects to the terminal blocks on the left side of the case. Wiring
for these connections is shown in Figure 2-11 on page 2-8. The dew
point sensor and temperature sensor cable connectors are located near
the center of this panel.

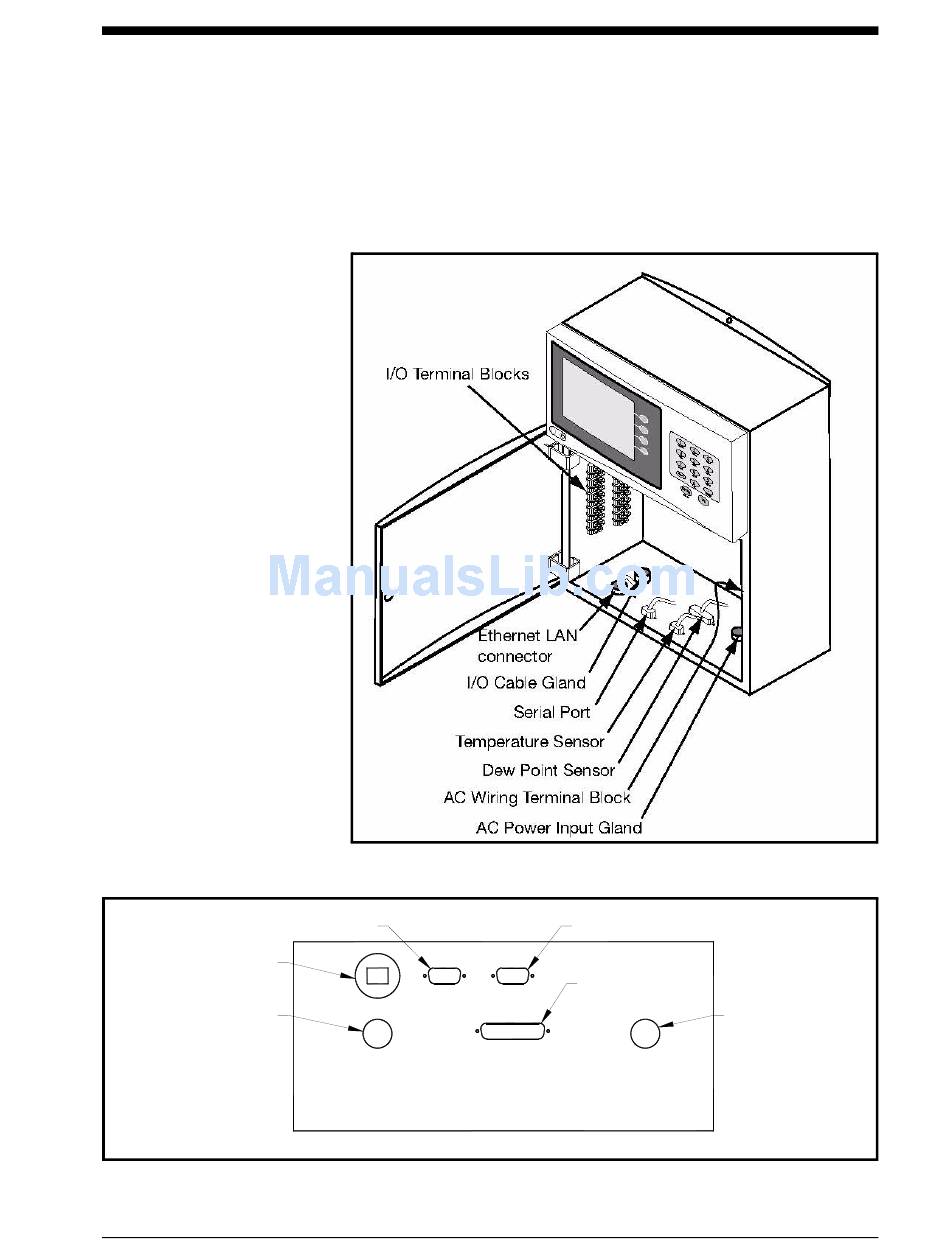

Figure 2-8: Wall-Mount Wiring Entrance Locations
Serial Port
COM
LAN
DEW POINT
IN/OUT
Temperature Sensor
Dew Point Sensor
TEMP
AC LINE
90/250 VAC 47-63 Hz
4 ASB 250V TYPE T
January 2006
Gland for
AC Power
Wiring
2-7
