January 2006

Menu 1

Analog Outputs

Item
Output Choose which output channel is being programmed
Choose which parameter will be output on the
Parameter
selected channel
Units Choose the units for this parameter
Set the parameter value that will produce full-scale
Upper Limit
output
Set the parameter value that will produce zero
Lower Limit
output
4-6

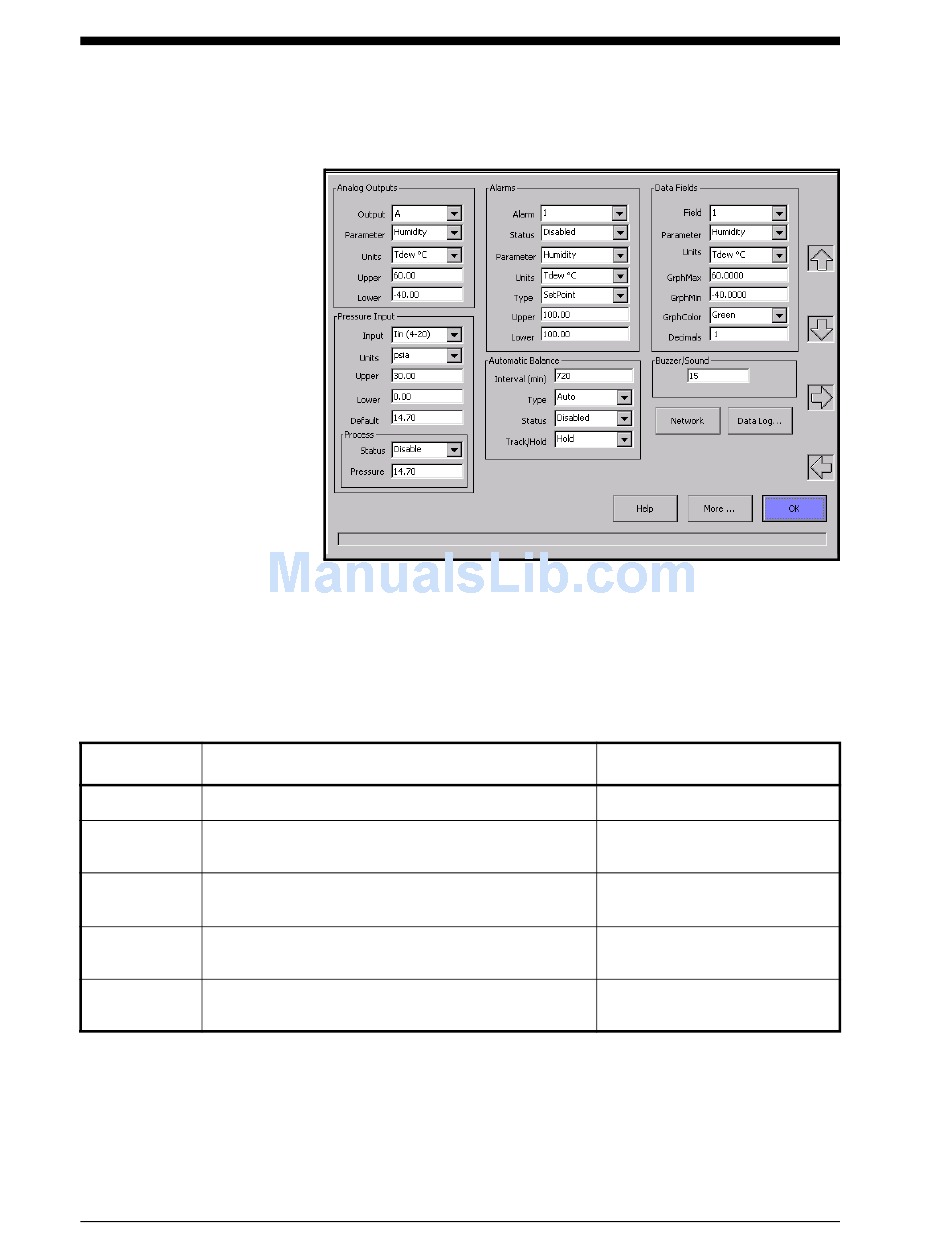

The first menu is shown in Figure 4-3 below. This menu is accessed
by selecting the Menu control button on the main screen and pressing
ENTER.
Menu 1 allows programming of the following items:
For more information on using the analog outputs, see Analog
Outputs on page 2-9.
Table 4-3: Analog Output Options
Function
Figure 4-3: Menu 1
Available Options
A and/or B
Humidity, Temperature,
Pressure or User Equation
(See Table 4-1 on page 4-4
for the parameter chosen)
(Enter a number)
(Enter a number)
Programming the VGA Optica
