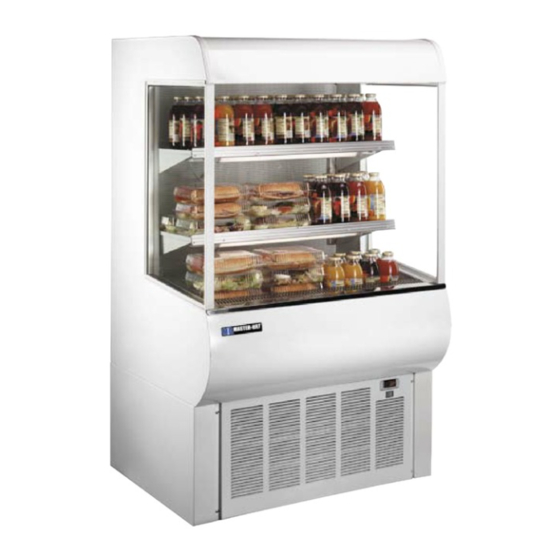

Master Bilt QMVM-36L Specification Sheet

Master Bilt QMVM-36L Specification Sheet

Qmvm-l series medium temp low profile open display merchandisers
Hide thumbs Also See for QMVM-36L:

Advertisement

Quick Links

QMVM-36L
FEATURES
NEW
STANDARD TEXTURED FINISH
Standard
Black also
white
available
CONSTRUCTION
• Standard electronic controller with
these features:
– Ability to monitor defrost functions
from the front panel interface
– Audible and visual alarm
– Eliminates room thermostat,
defrost termination/fan delay
control, defrost timer and digital
thermometer or other temperature
indicator
• 24 gauge painted textured galva-
nized steel exterior and interior
• Stainless steel floor pans (removable
for easy service)
• Shelves adjustable in 1" increments
• Two lighted tiers of two-position
shelving standard
• Perforated interior back wall and top
for better air flow
• Price tag molding
• 2" foamed-in-place "zero ODP"
urethane insulation
REFRIGERATION
• Refrigerant: R-134a
• Front air intake and rear air discharge
• Self-contained, bottom mount
refrigeration system
• Minimum of 6" clearance between
cabinet back and wall and a clear-
ance of 10" at top
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efficiency
rating): 17.24
• Drain plumbing hookup
recommended. Condensate pan
available if there is no access
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
QMVM-L SERIES
Quantum Series
Medium Temp Low Profile
Open Display
Merchandisers
MODELS
❑ QMVM-36L
❑ QMVM-48L
to drain plumbing. Condensate
pan must be field installed and
requires a dedicated 15 amp,
120 volt circuit.
WARRANTY
• Standard limited three year extend-
ed compressor and two year limited
parts and labor
OPTIONS
❑ Custom exterior and interior
❑ Condensate evaporator drain pan
❑ Condensate pump
❑ Product hooks
❑ Extra shelves (non-lighted)
❑ 1" vinyl bumper in choice of
colors
NOTE: Must be field installed and
requires a dedicated 20A, 120v
circuit.
black, blue, brown, green, red or
white

Advertisement

loading
Need help?

Need help?

Do you have a question about the QMVM-36L and is the answer not in the manual?

Questions and answers

Summary of Contents for Master Bilt QMVM-36L

  • Page 1 DATE _________________________ QTY. ___________________________ QMVM-L SERIES Quantum Series Medium Temp Low Profile Open Display Merchandisers MODELS ❑ QMVM-36L ❑ QMVM-48L • Stainless steel floor pans (removable for easy service) • Shelves adjustable in 1" increments • Two lighted tiers of two-position shelving standard •...
  • Page 2 OPEN DISPLAY MERCHANDISERS TECHNICAL SPECIFICATIONS DIMENSIONS DIMENSIONS (in.) (mm) MODEL QMVM-36L 762 1524 QMVM-48L 1219 762 1524 *If condensate evaporator pan accessory is used, it must be field installed and requires a dedicated 20 amp, 120 volt circuit. PLAN VIEW...
