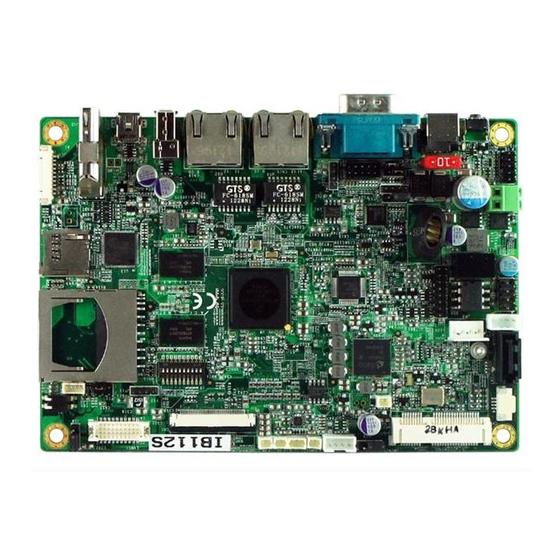

- Page 1 IB112 Freescale I.MX536 ARM Cortex™-A8 Embedded BOARD USER’S MANUAL Version 1.0...
- Page 2 Acknowledgments Freescale is a registered trademark of Freescale Semiconductor Inc. All other product names or trademarks are properties of their respective owners. IB112 User’s Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ............5 Product Description............. 5 Checklist ................7 Board Dimensions ............... 8 Installations ............. 10 Setting the Jumpers ............11 Connectors on IB112 ............16 IB112 User’s Manual... - Page 4 This page is intentionally left blank. IB112 User’s Manual...
-
Page 5: Introduction
INTRODUCTION Introduction Product Description The IB112 Embedded board is based on the Freescale I.MX536 Microprocessor. I.MX536 is a high-performance ARM Cortex-A8 microprocessor with speeds up to 800 MHz. The device offers 3D graphics acceleration while also supporting numerous peripherals, including DDR3 and USB OTG that are well suited for industrial applications. - Page 6 1 x HDMI Port (Option) 1 x VGA Port (Option) 1 x SATA Port (Option) 8 Bits GPIO (Option) Resistive Touch Connector 2 x CANBUS Connector 1 x Microphone / 1 x Speaker IB112 User’s Manual...
-
Page 7: Checklist
INTRODUCTION Checklist Your IB112 package should include the items listed below. The IB112 Embedded board This User’s Manual IB112 User’s Manual... -
Page 8: Board Dimensions
INTRODUCTION Board Dimensions Top Side Units: mm IB112 User’s Manual... -
Page 9: Installations
INSTALLATIONS Installations This section provides information on how to use the jumpers and connectors on the IB112 in order to set up a workable system. The topics covered are: Setting the Jumpers ................11 Connectors on IB112 ................16 IB112 User’s Manual... -
Page 10: Setting The Jumpers
INSTALLATIONS Setting the Jumpers Jumpers are used on IB112 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on IB112 and their respective functions. -
Page 11: Jumper Locations On Ib112
INSTALLATIONS Jumper Locations on IB112 Top Side IB112 User’s Manual... -
Page 12: S1 (Sw1, Sw2): System Boot Configuration
S1 (sw1, sw2): System Boot Configuration SW 2 SW 1 S1 (sw1, sw2) Boot From CN6 (SD1) CN8(SD2) EMMC NAND Note: 1: Switch On 0: Switch Off Default setting is 00 (sw1=0,sw2=0) S2: System Boot Configuration (factory use only) IB112 User’s Manual... -
Page 13: Jp9: Com2 Rs232, Rs422, Rs485 Selection
RS232 3-5 Short 3-5 Short RS422 4-6 Short 1-3 Short RS485 4-6 Short Default setting is RS232 mode. JP9 setting for CN18. JP7: USB +3.3V/+5V Power Setting Setting +3.3V Default setting is +5V. JP7 setting for J1. IB112 User’s Manual... -
Page 14: J14: Lvds +3.3V/+5V Power Setting
+3.3V Default setting is +3.3V. J14 setting for LVDS1. JP10: LED Brightness +5V/+9.6V/+12V Power Setting JP10 Setting Function Pin 3-5 Short/Closed Pin 3-4 +9.6V Short/Closed Pin 1-3 +12V Short/Closed Default setting is +5V. JP10 setting for LVDS1. IB112 User’s Manual... -
Page 15: Connectors On Ib112
INSTALLATIONS Connectors on IB112 Connector Locations on IB112 ............17 CN6: SD Card Connector ..............18 CN8: Micro SD Card Connector ............18 COM1 PORT: COM1 RS232 Connector ..........18 CN18:COM2 RS232/RS422/RS485 Serial Port ........19 COM3 PORT: COM3 RS232 Connector ..........19 LVDS1: LVDS Display Connector ............ -
Page 16: Connector Locations On Ib112
INSTALLATIONS Connector Locations on IB112 IB112 User’s Manual... -
Page 17: Cn6: Sd Card Connector
CN8: Micro SD Card Connector COM1 PORT: COM1 RS232 Connector (Debug Port, factory use only) Part Number: 0195-01-200-040 Description: Pin Header 2.0*2.0mm S/T Single Row 4pin Pin # Signal Name COM1 RX, Receive data COM1 TX, Transmit data GND, ground IB112 User’s Manual... -
Page 18: Cn18:Com2 Rs232/Rs422/Rs485 Serial Port
COM3: COM3 RS232 Connector Part Number: DF11-10S-PA66H Description: 2mm DIP Mini 180D 10P 2R Male Pin # Signal Name RX, Receive data TX, Transmit data GND, ground RTS, Request To Send CTS, Clear To Send IB112 User’s Manual... -
Page 19: Lvds1: Lvds Display Connector
TX0+ TX0- Ground Ground TX1+ TX1- Ground +5V/3.3V TX3+ TX3- TX2+ TX2- Ground Ground TXC+ TXC- Backlight ADJ +5V/3.3V +5V/+9.6V/+12V +5V/+9.6V/+12V Note: Please refer to J14 for pin8 and pin18 refer to JP10 for pin19 and pin20 IB112 User’s Manual... -
Page 20: Cn1: Lcd 18 Bit Parallel Signal Connector
INSTALLATIONS CN1: LCD 18 Bit Parallel Signal Connector Part Number: CSF-2881-401R Description: 0.50mm ZIF FFC/FPC Downside Connector Signal Name Pin # Pin # Signal Name G5(MSB) Backlight ADJ +3.3V +3.3V Mode R5(MSB) VSYNC HSYNC B5(MSB) DCLK IB112 User’s Manual... -
Page 21: Cn2: Resistive Touch Panel Connector
CN3: Resistive Touch Panel Connector Part Number: 0110-161-040 Description: JST-PH Type Wafer 2.0mm 4Pin Pin # Signal Name Touch YP Touch XP Touch YM Touch XM Note: CN3 signals are same as CN2. CN15: 10/100Mb LAN1 (From Freescale i.MX536) IB112 User’s Manual... -
Page 22: Cn19: 10/100Mb Lan2 (Usb To Ethernet)
J3: Speaker Right Out Connector Part Number: 0110-2610020 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Pin # Signal Name SPEAKER_RIGHT- SPEAKER_RIGHT+ Note: The maximun output power is 2 W with 4 Ω speaker or 1.4 W with 8 Ω speaker IB112 User’s Manual... -
Page 23: J5: Speaker Left Out Connector
Note: The maximun output power is 2 W with 4 Ω speaker or 1.4 W with 8 Ω speaker JMIC1: Microphone Connector Part Number: 0110-2610020 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Pin # Signal Name MIC_IN IB112 User’s Manual... -
Page 24: J10: Digital I/O 4 In/4 Out Connector
IN0 (U46.P10) Note: All In/Out signals level are 3.3V . U46 is TCA6416PAW IC. The IC connects with i.MX535 CPU via I2C2 port. JP2: SATA Power Part Number: WAFER25-104S-2442-ST Description: 2.5 wafer 4pin 180D Pin # Signal Name IB112 User’s Manual... -
Page 25: Cn7: Sata Bus
INSTALLATIONS CN7: SATA Bus Pin # Signal Name SATA_TXP SATA_TXN SATA_RXN SATA_RXP IB112 User’s Manual... -
Page 26: Jp1: Vga Port
INSTALLATIONS JP1: VGA Port Part Number: 0196-01-2811615 Description: Pin Header 2.0mm S/T Dual Row 2*8pin Pin # Signal Name VGA_R VGA_G VGA_B VGA_I2C_SDA VGA_HSYNC VGA_VSYNC VGA_I2C_SCL IB112 User’s Manual... -
Page 27: J11: External Key Port
Description: Molex 53398 1.25mm Wafer R/A 10pin Pin # Signal Name USER_KEY1 USER_KEY2 RESET# +3.3V Note: USER_KEY1 is used as RETURN key for Android OS. USER_KEY2 is used as HOME key for Android OS. SW2: Push Button for Hardware Reset IB112 User’s Manual... -
Page 28: Jp11: Pin Header For Hardware Reset
Part Number: 0110-2610020 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Pin # Signal Name +VCC CN14: 12V~30V Power Connector This connector supplies the system board operating voltage. Pin 1 Pin 2 Pin # Signal Name +12V ~ +30V IB112 User’s Manual... -
Page 29: J16: 12V~30V Power Connector
INSTALLATIONS J16: 12V~30V Power Connector Pin # Signal Name +12V ~ +30V Note: J16 signals are same as CN14. IB112 User’s Manual... -
Page 30: Jusb1: Usb2.0 Type A Connector
INSTALLATIONS JUSB1: USB2.0 Type A Connector Pin # Signal Name CN16: Mini USB OTG Connector Pin # Signal Name Note: CN16 used as USB device while ID is floating. (CN16 support USB device only.) IB112 User’s Manual... -
Page 31: J1: Usb2.0 Connector
+5V / +3.3V Default setting is +5V. Please refer to JP7 setting for +5V and +3.3V selection. J4: Line Out Connector Part Number: 0110-2610030 Description: Molex 53047 1.25mm Wafer S/T Type 3pin Pin # Signal Name LINE_OUTL LINE_OUTR IB112 User’s Manual... -
Page 32: J12: Hdmi Connector
INSTALLATIONS J12: HDMI connector Pin # Signal Name TX2+ TX2- TX1+ TX1- TX0+ TX0- TXC+ TXC- IB112 User’s Manual... -
Page 33: Jmini1: Mini Pcie Connector
INSTALLATIONS JMINI1: Mini PCIE Connector Signal Name Pin # Pin # Signal Name +3.3V +3.3V RESET# +3.3V I2C2_SCL I2C2_SDA USB2.0 D- USB2.0 D+ +3.3V +3.3V +3.3V IB112 User’s Manual... -
Page 34: Jp8: Canbus Connector
INSTALLATIONS JP8: CANBUS Connector Part Number: 0126-01-203-080 Description: 2.54*2.54mm S/T Dual Rows 2*4pin Signal Name Pin # Pin # Signal Name GND_ISO GND_ISO CAN1_H CAN2_H CAN1_L CAN2_L IB112 User’s Manual... - Page 35 APPENDIX IB112 User’s Manual...
