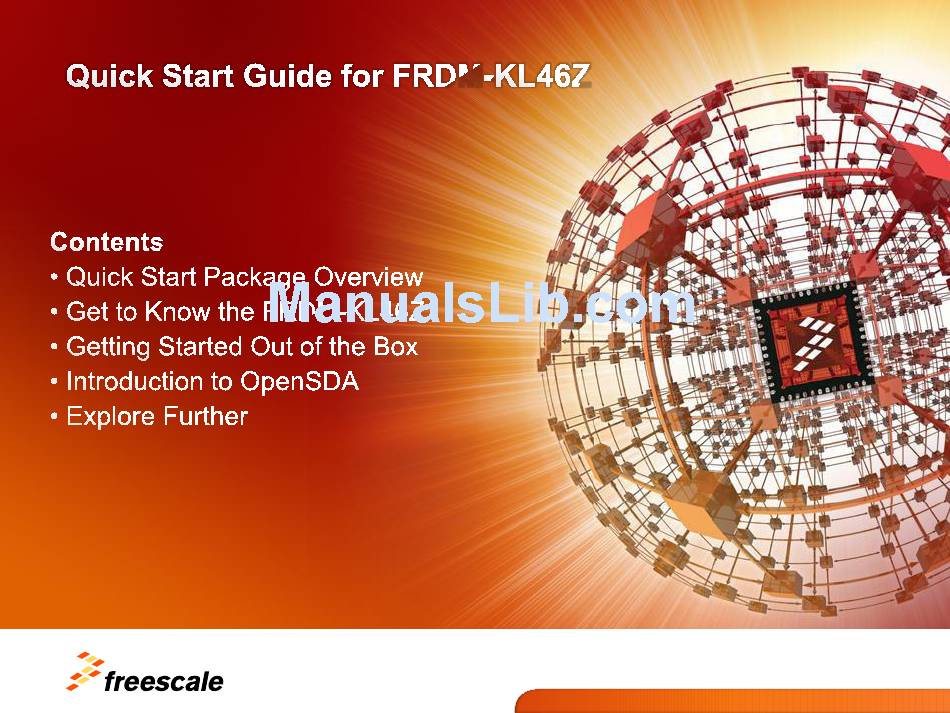

- Page 1 Quick Start Guide for FRDM-KL46Z Rev 1...
- Page 2 FRDM-KL46Z Schematics PDF schematics for the FRDM-KL46Z hardware FRDM-KL46Z Design Package Zip file containing all design source files for the FRDM-KL46Z hardware OpenSDA User’s Guide Overview and instructions for use of the OpenSDA embedded debug circuit. Quick Start Guide for FRDM-KL46Z Rev 1...
- Page 3 11 – PTA15 PTE31 - 1 2 – SDA_PTD5 Accelerometer GND - 14 13 – PTA15 MMA8451Q - 16 15 – PTA17 VREFH PTE0 - 18 17 – PTB9 PTE1 - 20 Reset KL46 OpenSDA Quick Start Guide for FRDM-KL46Z Rev 1...
- Page 4 It is ideal for rapid prototyping of microcontroller-based applications. The Freescale Freedom KL46Z hardware, FRDM-KL46Z, is a simple, yet sophisticated design featuring a Kinetis L Series microcontroller, the industry’s first microcontroller built on the ARM® Cortex™-M0+ core.
- Page 5 (MSD) Flash Programmer OpenSDA Application preinstalled. It will appear as a removable storage drive with a volume label of FRDM-KL46Z The pre-installed demo running on the KL46 MCU shows different features of The MSD Flash Programmer also includes a USB the board including segment LCD, an virtual serial port which requires an .INF file for proper...
-
Page 6: Running The Out Of Box Demo
Rotate FRDM-KL46Z, direction Press SW1 to change to in degrees is shown on eCompass mode segment LCD screen. Leds will blink faster when pointing to the North. Press SW1 to change to Up-counting mode. Quick Start Guide for FRDM-KL46Z Rev 1... - Page 7 KL46Z MCU. It emulates a FAT16 file system, appearing as a removable drive in the host file system with a volume label of FRDM-KL46Z. Raw binary and Motorola S-record files that are copied to the drive are programmed directly into the flash of the KL46 and executed automatically. The virtual serial port can be opened with standard serial terminal applications.
- Page 8 USB host and an embedded target processor. OpenSDA software includes a flash-resident USB mass-storage device (MSD) bootloader and a collection of OpenSDA Applications. FRDM-KL46Z comes with the MSD Flash Programmer OpenSDA Application preinstalled. Follow these instructions to run the OpenSDA Bootloader and change the installed OpenSDA Application to P&E Debug Application that provides debugging and a virtual serial...
- Page 9 Now that you are familiar with the FRDM-KL46Z and OpenSDA, it’s time to explore the additional software and lab guides available on www.freescale.com/FRDM-KL46Z. Select your next path from the links in the Jump Start Your Design section. Quick Start Guide for FRDM-KL46Z Rev 1...
