DO
GUIDE
HD-SCALER-HD-E/HD-SCALER-VGA-E
High-Definition Video Scalers
DO

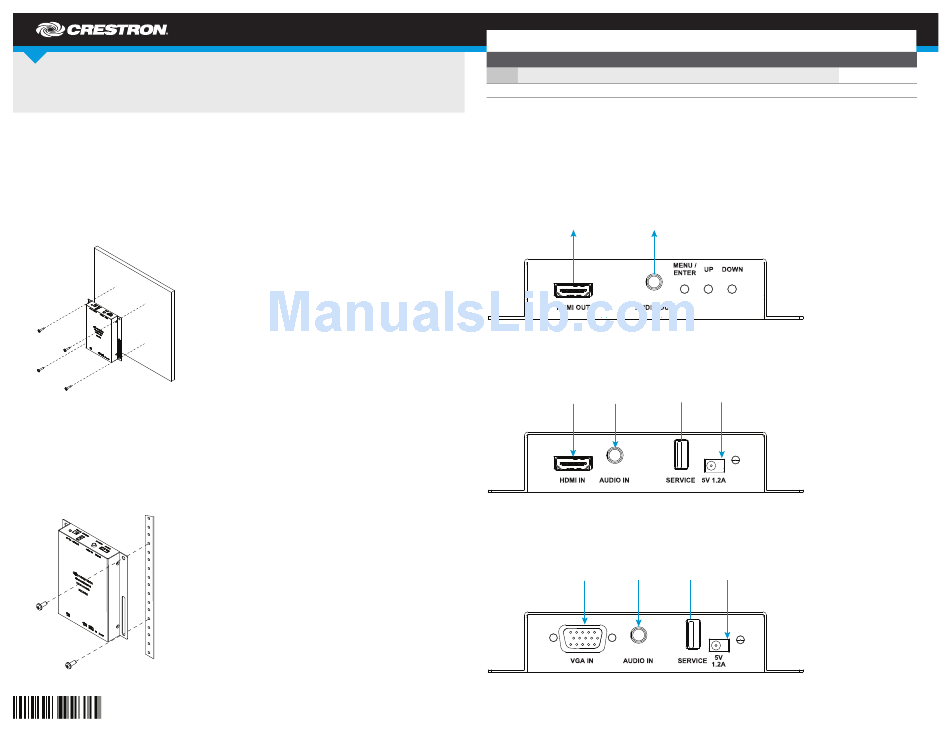

Install the Device
®
The Crestron
HD-SCALER-HD-E and HD-SCALER-VGA-E can be mounted onto a flat surface
or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface. Mounting of the
HD-SCALER-HD-E onto a wall is shown in illustration .
Mounting onto a Flat Surface
Mounting onto a Rack Rail
The HD-SCALER-HD-E and HD-SCALER-VGA-E mount onto the front or rear rail of a rack.
Position either the left or right mounting flange of the device so that the holes align with the
holes in the rack. Then, secure the device to the rack using two rack mounting screws (not
included). Mounting of the HD-SCALER-HD-E onto a rack rail is shown in illustration .
Mounting onto a Rack Rail
DO
Check the Box
QTY PRODUCT
1
Power Pack, 5 Vdc 1.2 A, 100-240 Vac
Not Included: Cables, Mounting Screws
DO
Make Connections to the Rear Panel
Make connections to the front and rear panels of the device as appropriate for the installation.
Refer to illustrations through .
Connections to the Front Panel (HD-SCALER-HD-E and HD-SCALER-VGA-E)
To HDMI
®
Display or
To Analog Audio
Receiver
Output Device
Connections to the Rear Panel (HD-SCALER-HD-E Only)
From
From HDMI
Analog
Audio/Video
Audio
Source
Source
Connections to the Rear Panel (HD-SCALER-VGA-E Only)
From
Analog
From VGA
Audio
Video Source
Source
PART NUM.
2028121
For
From
Factory
Power
Use
Pack
Only
(Included)
For
From
Factory
Power
Use
Pack
Only
(Included)
