- Page 1 Crestron HD-MD8X1/HD-MD8X2 ® ® QuickSwitch HD HDMI Switcher Operations & Installation Guide...
-
Page 2: Regulatory Compliance
United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. -
Page 3: Table Of Contents
Crestron HD-MD8X1/HD-MD8X2 QuickSwitch HD HDMI Switcher Contents QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 Introduction ..........................1 Features and Functions ....................1 Applications......................... 4 Internal Block Diagram ....................4 Specifications ......................5 Physical Description....................8 Setup ............................12 Network Wiring......................12 Identity Code ......................12 Installation ......................... -
Page 5: Quickswitch Hd Hdmi Switcher: Hd-Md8X1/Hd-Md8X2
HDMI outputs to feed two separate displays or to support a single display that has built-in PIP capability. For simplicity within this guide, the term “HD-MD8X1/2” is used except where noted. HDMI is the standard for interfacing high-definition AV equipment and is key to handling the latest HD video and audio formats. - Page 6 High-Definition Scaler Option High-performance scaling capability can be added to the HD-MD8X1/2 using the optional HD-SCALER (sold separately). The HD-SCALER features fully automatic operation and is compact enough to install at the display location, ensuring an optimal image regardless of the source that is selected.
-
Page 7: Front Panel Controls
Internet on screen. Front Panel Controls The HD-MD8X1/2 works out of the box without requiring any connection to a control system or computer, providing intuitive signal switching via its front panel. The front panel is great for everyday use, or may be used just for initial system testing. -
Page 8: Applications
Applications The following diagram shows an HD-MD8X2 in a residential application. HD-MD8X2 in a Residential Application Internal Block Diagram The following diagram represents the switching abilities of the HD-MD8X1/2. Internal Block Diagram of the HD-MD8X1/2 Digital Video Switch HDMI RX... -
Page 9: Specifications
Crestron HD-MD8X1/HD-MD8X2 QuickSwitch HD HDMI Switcher Specifications Specifications for the HD-MD8X1/2 are listed in the following table. HD-MD8X1/2 Specifications SPECIFICATION DETAILS Video Switcher HD-MD8X1: 8 x 1 digital matrix, resolution management, Crestron QuickSwitch HD HD-MD8X2: 8 x 2 digital matrix, resolution... - Page 10 For console, USB 2.0 client HDMI Provides EDID and HDCP key management Power Cresnet Power Usage HD-MD8X1: 26 W (1.09 A @ 24 Vdc) HD-MD8X2: 27 W (1.13 A @ 24 Vdc) Default Net ID Environmental Temperature 32º to 104º F (0º to 40º C)
- Page 11 HDMI IN requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort Multimode signal. HDMI OUT requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cable sold separately. QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 7 Operations & Installation Guide – DOC. 6714B...
-
Page 12: Physical Description

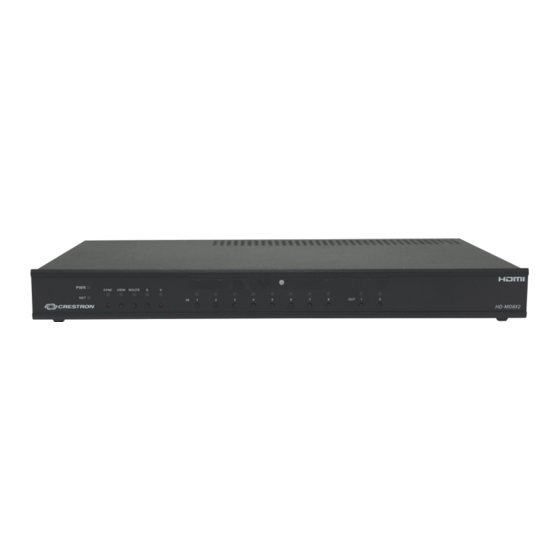

This section provides information on the connections, controls, and indicators available on the HD-MD8X1/2. HD-MD8X1 Physical Views (Front and Rear) HD-MD8X2 Physical Views (Front and Rear) 8 QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 Operations & Installation Guide – DOC. 6714B... - Page 13 HD-MD8X1/2 Overall Dimensions (HD-MD8X2 Shown) 9.75 in 10.06 in (248 mm) (256 mm) 17.03 in (433 mm) 1.70 in (44 mm) HD-MD8X1/2 Connectors, Controls, and Indicators (HD-MD8X2 Shown) QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 9 Operations & Installation Guide – DOC. 6714B...
- Page 14 (6 ft cable included) SETUP (1) Miniature push button and red LED, used (Button and LED) for touch-settable ID (TSID) and Ethernet autodiscovery (Continued on following page) 10 QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 Operations & Installation Guide – DOC. 6714B...
- Page 15 2. HDMI IN requires an appropriate adapter or interface cable to accommodate a DVI or DisplayPort Multimode signal. HDMI OUT requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cable sold separately. QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 11 Operations & Installation Guide – DOC. 6714B...
-
Page 16: Setup
Identity Code Net ID The Net ID of the HD-MD8X1/2 has been factory set to 9B. The Net IDs of multiple HD-MD8X1/2 devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via Crestron Toolbox (refer to “Establishing Communication”... -
Page 17: Installation
Rack Mounting The HD-MD8X1/2 can be mounted in a rack or stacked with other equipment. Two “ears” are provided with the HD-MD8X1/2 for rack mounting. These ears must be installed prior to mounting. Complete the following procedure to attach the ears to the unit. - Page 18 Stacking Four “feet” are provided with the HD-MD8X1/2 so that if the unit is not rack mounted, the rubber feet can provide stability when the unit is placed on a flat surface or stacked. These feet should be attached near the corners prior to the hookup procedure.
-
Page 19: Hardware Hookup
Label the Buttons Use Crestron Engraver software to print custom labels for the HD-MD8X1/2’s front panel buttons and LEDs. Crestron recommends printing on 100-pound paper. Paper weighing less than 100 pounds tends to crumple while sliding in, while paper weighing more than 100 pounds may not fit. - Page 20 Depth = 1 Depth = 0 Using Crestron Toolbox, the switcher can test HDMI sources and displays for switching limitations due to HDCP keys. The number of HDCP keys specifies the number of display devices that can be connected to a source over HDMI using HDCP authentication.
-
Page 21: Edid
EDID is a data structure that HDMI receivers use to indicate their capabilities to the HDMI sources. The HD-MD8X1/2 routes HDMI signals from any of the eight video inputs to one or two (HD-MD8X2 only) output channels. According to the HDMI standard, HDMI sources are expected to only deliver audio and video formats that are supported by the destination. -
Page 22: Uploading And Upgrading
(such as changing the device ID or creating an IP table) to ensure proper functioning. NOTE: Crestron software and any files on the Web site are for authorized Crestron dealers and Crestron Service Providers (CSPs) only. New users must register to obtain access to certain areas of the site (including the FTP site). -
Page 23: Programs And Firmware
Crestron HD-MD8X1/HD-MD8X2 QuickSwitch HD HDMI Switcher The COMPUTER port on the HD-MD8X1/2 connects to the USB port on the PC via the included Type A to Type B USB cable: 1. Click Tools | System Info. 2. Click the icon. -
Page 24: Program Checks
QuickSwitch HD HDMI Switcher Crestron HD-MD8X1/HD-MD8X2 Program Checks Actions that can be performed on the HD-MD8X1/2 vary depending on whether it is connected via Cresnet or Ethernet. Cresnet Connections For Cresnet connections, using Crestron Toolbox, display the network device tree (Tools | Network Device Tree View) to show all network devices connected to the control system. -
Page 25: Operation
QuickSwitch HD HDMI Switcher Operation Operating Modes The HD-MD8X1/2 can operate in the Sync, View, or Route mode. Sync Mode The Sync mode uses the front panel controls to view the presence of video signals on each input. Press the SYNC button to activate the Sync mode. The SYNC LED lights as well as the LEDs of any inputs with a video signal present. -
Page 26: Route Mode
3. Press the button(s) corresponding to the output(s) to be switched. The LED(s) of the selected output(s) light. 4. Repeat for any other routes to be changed. 22 QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 Operations & Installation Guide – DOC. 6714B... -
Page 27: Problem Solving
Use the Right Wire To ensure optimum performance over the full range of the installation topology, use Crestron Certified Wire only. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire. -
Page 28: Reference Documents
Cresnet power usage of the entire chain. If the unit is home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. -
Page 29: Further Inquiries
Crestron worldwide offices at www.crestron.com/offices. To post a question about Crestron products, log onto Crestron’s Online Help at www.crestron.com/onlinehelp. First-time users must establish a user account to fully benefit from all available features. -
Page 30: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party. - Page 31 Crestron HD-MD8X1/HD-MD8X2 QuickSwitch HD HDMI Switcher This page is intentionally left blank. QuickSwitch HD HDMI Switcher: HD-MD8X1/HD-MD8X2 27 Operations & Installation Guide – DOC. 6714B...
- Page 32 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6714B 15 Volvo Drive Rockleigh, NJ 07647 (2023605) Tel: 888.CRESTRON 09.13 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
