- Page 1 DM-MD8X1-4K-C/HD-MD8X1-4K 4K Scaling Auto-Switchers Supplemental Guide Crestron Electronics, Inc.
- Page 2 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Display Mode ......................... 9 Configuration Using the Web Interface ..............9 Configuration Using SIMPL Windows ..............9 EDID ..........................10 Connection to a Third-Party HDBaseT Receiver (DM-MD8X1-4K-C Only) ....11 Troubleshooting Appendix. Pin Assignments Contents • i Supplemental Guide – DOC. 7718B... -
Page 5: Introduction
The devices also provide out-of-the-box Crestron Connect It™ cable caddy collaboration. This guide provides information about the following: • Physical description of the front and rear panels of the DM-MD8X1-4K-C and HD-MD8X1-4K • Crestron Connect It functionality •... -
Page 6: Physical Description

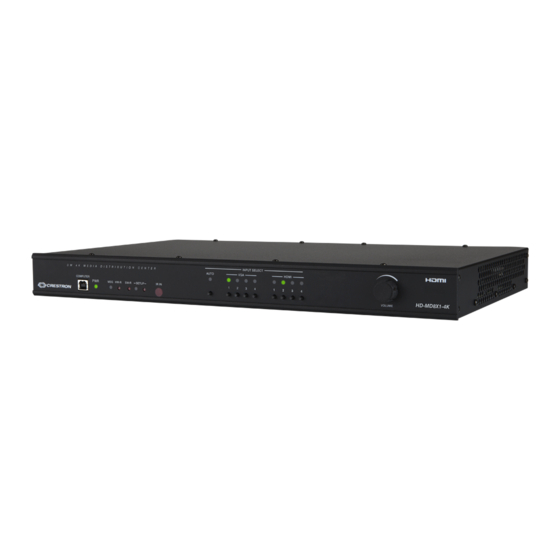

Front Panel The following illustration shows the front panel of the DM-MD8X1-4K-C. NOTE: For illustrative purposes, the front panel of the DM-MD8X1-4K-C is shown below. The front panel of the HD-MD8X1-4K is the same as the front panel of the DM-MD8X1-4K-C. -
Page 7: Rear Panel
NOTE: For illustrative purposes, the rear panel of the DM-MD8X1-4K-C is shown below. The rear panel of the HD-MD8X1-4K-C is similar to the rear panel of the DM-MD8X1-4K-C; however, only the DM-MD8X1-4K-C includes the DM OUT and MIC IN connectors. - Page 8 Solid amber LED indicates HDCP video; Blinking amber LED indicates non-HDCP video NOTE: The DM-MD8X1-4K-C cannot connect to an Ethernet LAN over a DM connection. It must be connected using its onboard LAN port. NOTE: Any wiring that is connected to a PoDM or HDBaseT PoE PSE port is for intrabuilding use only and should not be connected to a line that runs outside of the building in which the PSE is located.
-
Page 9: Built-In System Configuration And Control Software
Crestron Connect It Functionality The DM-MD8X1-4K-C and HD-MD8X1-4K provide built-in Crestron Connect It functionality, allowing USB connections of up to four TT-100 series Crestron Connect It cable caddies (sold separately). The auto-switching inputs of the DM-MD8X1-4K-C and HD-MD8X1-4K support individual HDMI, VGA, and analog audio connections at each cable caddy. -
Page 10: Configuration
Configuration In addition to the built-in software, the DM-MD8X1-4K-C and HD-MD8X1-4K can be configured using the web interface. SIMPL Windows can also be used to configure the DM-MD8X1-4K-C and HD-MD8X1-4K. This section provides information about configuration of the following: •... -
Page 11: User-Selectable Output Resolution
The Output Configuration page for the internal scaler opens. 2. In the Current Scaler Resolution list, click the desired setting. 3. (Applicable only to the DM-MD8X1-4K-C and only when EDID Preferred is selected in the Current Scaler Resolution list) In the Preferred EDID list, click the radio button that corresponds to the preferred EDID setting. -
Page 12: Standby Timeout
Using SIMPL Windows, set the standby timeout in subslot 02 of the Outputs slot. To do so, set the <Scaler_Out_Standby_Timeout> analog input join to the desired value. NOTE: For detailed information, refer to the SIMPL Windows help file. 8 • DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers Supplemental Guide – DOC. 7718B... -
Page 13: Display Mode
Using SIMPL Windows, set the display mode in subslot 02 of the Outputs slot. To do so, set the <Scaler_Display_Mode> analog input join to the desired value. NOTE: For detailed information, refer to the SIMPL Windows help file. DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers • 9 Supplemental Guide – DOC. 7718B... -
Page 14: Edid
The Input Configuration page for the selected input opens. b. Click the Configure EDID button. The EDID Setup page opens. c. Click Crestron EDID List for a list of predefined Crestron EDID files or User EDID List for a list of custom EDID files. -
Page 15: Connection To A Third-Party Hdbaset Receiver (Dm-Md8X1-4K-C Only)
Connection to a Third-Party HDBaseT Receiver (DM-MD8X1-4K-C Only) The DM-MD8X1-4K-C is an HDBaseT certified device, enabling direct connection to other HDBaseT certified equipment. Via the DM 8G+ output, the DM-MD8X1-4K-C can be connected directly to a third-party HDBaseT compliant receiver without requiring a DM 8G+ receiver. -
Page 16: Troubleshooting
NOTE: If, for any reason, the factory default settings of the DM-MD8X1-4K-C or HD-MD8X1-4K must be restored, do the following: From the Tools menu in the Crestron Toolbox™ application, select Text Console and enter the following command: restore 12 •... -
Page 17: Appendix. Pin Assignments
The connector shell is reserved for the cable shield. DM OUT Wiring WIRE WIRE NUMBER COLOR NUMBER COLOR Pin 8 Pin 1 Orange/White 5 Blue/White Orange Green Green/White Brown/White Blue Brown DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers • 13 Supplemental Guide – DOC. 7718B... - Page 18 R+ Out – R– Open Balanced Output Unbalanced Output Shield Right Right Left Left LAN Pin Assignments NUMBER SIGNAL NUMBER SIGNAL Pin 8 Pin 1 TX– RX– 14 • DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers Supplemental Guide – DOC. 7718B...
- Page 19 This page is intentionally left blank. DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers • 15 Supplemental Guide – DOC. 7718B...
- Page 20 Crestron Electronics, Inc. Supplemental Guide – DOC. 7718B 15 Volvo Drive, Rockleigh, NJ 07647 (2047534) Tel: 888.CRESTRON 10.17 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
