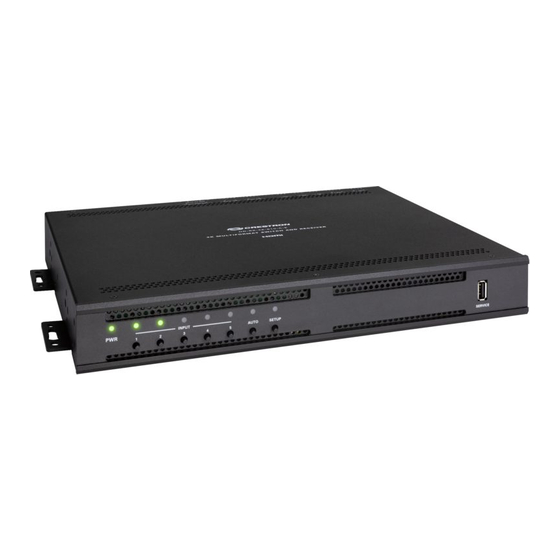

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E
The Crestron® HD-RX-4K-510-C-E and HD-RX-4K-410-C-E are 4K
multiformat AV switches and receivers. The devices provide enhanced
HDMI® video switching and audio presentation capabilities in areas such
as conference rooms and classrooms.

In the Box

1
HD-RX-4K-510-C-E or HD-RX-4K-410-C-E Multiformat AV
Switch and Receiver
Additional Items
4
Anchor, Drywall, Plastic (2053825)
5
Connector, 2-Pin (2003574)
2
Connector, 2-Pin (2044402)
3
Connector, 3-Pin (2003575)
5
Connector, 5-Pin (2003577)
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
4
Screw, 8-15A x 3/4 in., Flat Head, Phillips (2053836)

Install the Device

To install the device, mount it onto drywall. Use the four included drywall
anchors and the four included 8-15A x 3/4 in. flat head Phillips screws
(one screw for each keyhole slot in the four mounting flanges of the
device).
NOTE:
For safety reasons, it is recommended that the mounting
height of the device be no more than 6-1/2 ft (2 m) from the floor or
any platform above which the device is mounted.

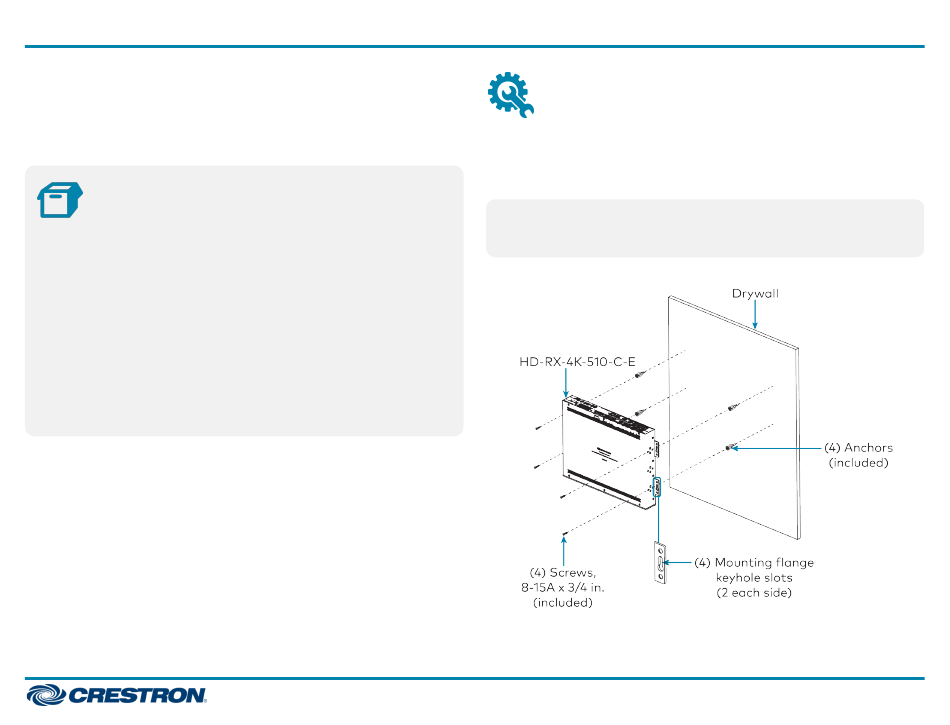

Drywall Mounting (HD-RX-4K-510-C-E Shown)
