HD-RX-4K-510-C-E and HD-RX-4K-410-C-E
DMPS Lite™ 4K Multiformat AV Switch and Receiver

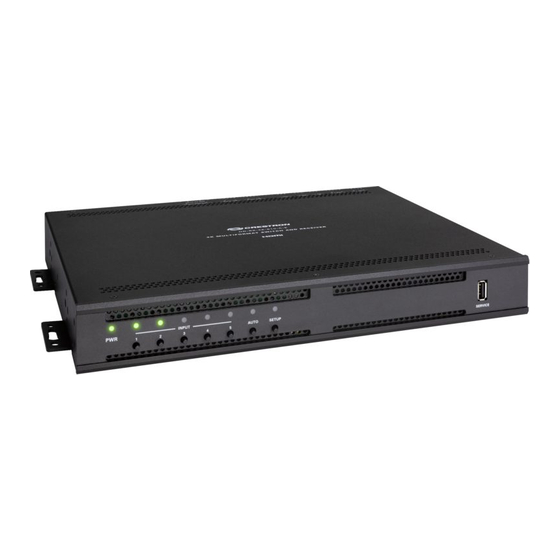

The HD-RX-4K-510-C-E and HD-RX-4K-410-C-E are DMPS Lite™ 4K
multiformat AV switches and receivers. The devices provide enhanced
HDMI® video switching and audio presentation capabilities in areas such
as conference rooms and classrooms.
In the Box
1
HD-RX-4K-510-C-E or HD-RX-4K-410-C-E DMPS Lite™
4K Multiformat AV Switch and Receiver
Additional Items
4
Anchor, Drywall, Plastic (2053825)
5
Connector, 2-Pin (2003574)
2
Connector, 2-Pin (2044402)
3
Connector, 3-Pin (2003575)
5
Connector, 5-Pin (2003577)
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
4
Screw, 8-15A x 3/4 in., Flat Head, Phillips (2053836)
Install the Device
To install the device, mount it onto drywall. Use the four included drywall
anchors and the four included 8-15A x 3/4 in. flat head Phillips screws
(one screw for each keyhole slot in the four mounting flanges of the
device).
NOTE: For safety reasons, it is recommended that the mounting
height of the device be no more than 6-1/2 ft (2 m) from the floor or
any platform above which the device is mounted.

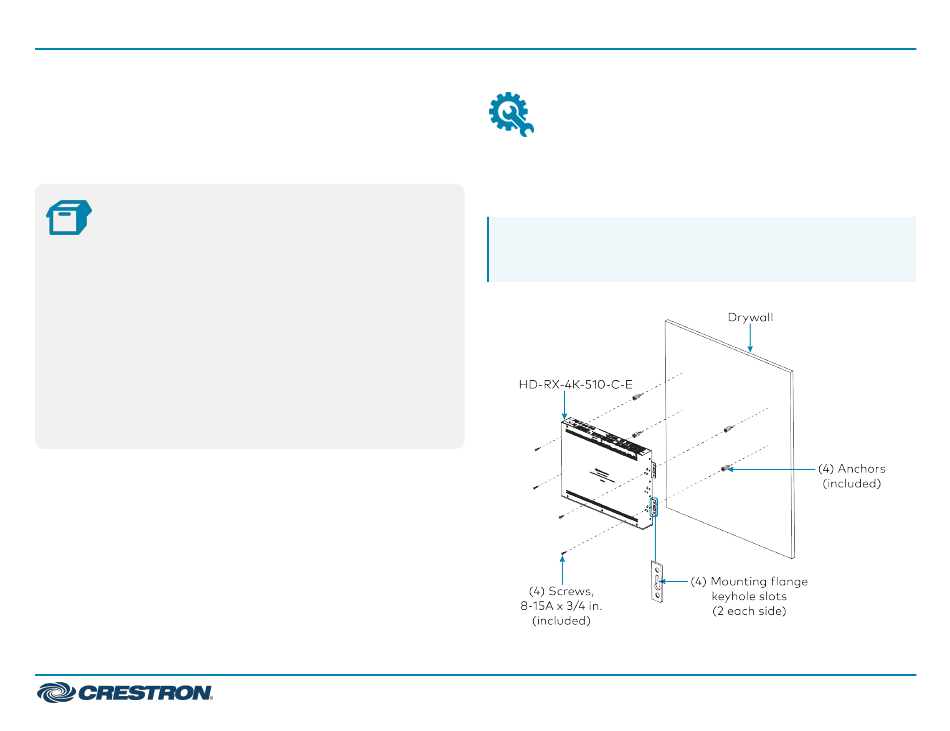

Drywall Mounting (HD-RX-4K-510-C-E Shown)
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-RX-4K-510-C-E and is the answer not in the manual?

Questions and answers

Summary of Contents for Crestron HD-RX-4K-510-C-E

  • Page 1 Quick Start HD-RX-4K-510-C-E and HD-RX-4K-410-C-E DMPS Lite™ 4K Multiformat AV Switch and Receiver The HD-RX-4K-510-C-E and HD-RX-4K-410-C-E are DMPS Lite™ 4K multiformat AV switches and receivers. The devices provide enhanced Install the Device HDMI® video switching and audio presentation capabilities in areas such as conference rooms and classrooms.
  • Page 2: Connect The Device

    Quick Start HD-RX-4K-510-C-E and HD-RX-4K-410-C-E DMPS Lite™ 4K Multiformat AV Switch and Receiver Connect the Device Connect the device as required for the application. Front Panel Connection (HD-RX-4K-510-C-E Shown)
  • Page 3 Quick Start HD-RX-4K-510-C-E and HD-RX-4K-410-C-E DMPS Lite™ 4K Multiformat AV Switch and Receiver Rear Panel Connections (HD-RX-4K-510-C-E Shown)
  • Page 4 The HD-RX-4K-510-C-E can power three DM Lite transmitters simultaneously. The HD-RX-4K-410-C-E can power two DM Lite transmitters simultaneously. Do not connect power to DM Lite transmitters that are to be connected to the HD-RX-4K-510-C-E or HD-RX-4K-410-C-E. The device is grounded by connection of the included power cord Refer to the following table and diagrams for LINE analog audio input to an AC power outlet with proper grounding.
  • Page 5: Led Indicators

    Quick Start HD-RX-4K-510-C-E and HD-RX-4K-410-C-E DMPS Lite™ 4K Multiformat AV Switch and Receiver AUX OUT 1-2 Connector Pin Assignments LED Indicators The AUX OUT 1 and AUX OUT 2 connectors use 5-pin terminal blocks for Refer to the following table for information about the LED indicators on balanced or unbalanced analog audio outputs.
  • Page 6: Configure The Device

    SETUP button, pressing the button on the transmitter Registration-Room-Licenses. will also display the IP address of the HD-RX-4K-510-C-E or HD-RX-4K- To connect the device to the XiO Cloud service: 410-C-E. 1. Record the MAC address and serial number that are labeled on the To log in to the web interface, enter the user name and password.
  • Page 7 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, DM Lite, DMPS Lite, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.
