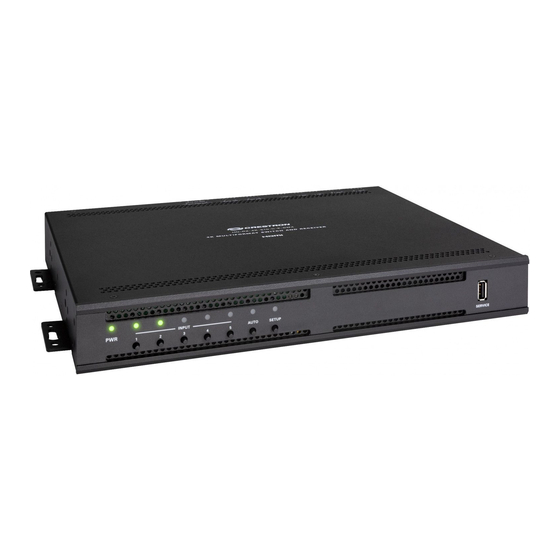

HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4
DMPS Lite™ 4K Multiformat AV Switch and Receiver with 4-Port Ethernet Switch
The HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 are
DMPS Lite™ 4K multiformat AV switches and receivers. The devices
provide enhanced HDMI® video switching and audio presentation
capabilities in areas such as conference rooms and classrooms.
In the Box
1
HD-RX-4K-510-C-E-SW4 or HD-RX-4K-410-C-E-SW4
DMPS Lite™ Multiformat AV Switch and Receiver with
4-Port Ethernet Switch
Additional Items
4
Anchor, Drywall, Plastic (2053825)
5
Connector, 2-Pin (2003574)
2
Connector, 2-Pin (2044402)
3
Connector, 3-Pin (2003575)
5
Connector, 5-Pin (2003577)
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
4
Screw, 8-15A x 3/4 in., Flat Head, Phillips (2053836)
Install the Device
To install the device, mount it onto drywall. Use the four included drywall
anchors and the four included 8-15A x 3/4 in. flat head Phillips screws
(one screw for each keyhole slot in the four mounting flanges of the
device).
NOTE: For safety reasons, it is recommended that the mounting
height of the device be no more than 6-1/2 ft (2 m) from the floor or
any platform above which the device is mounted.

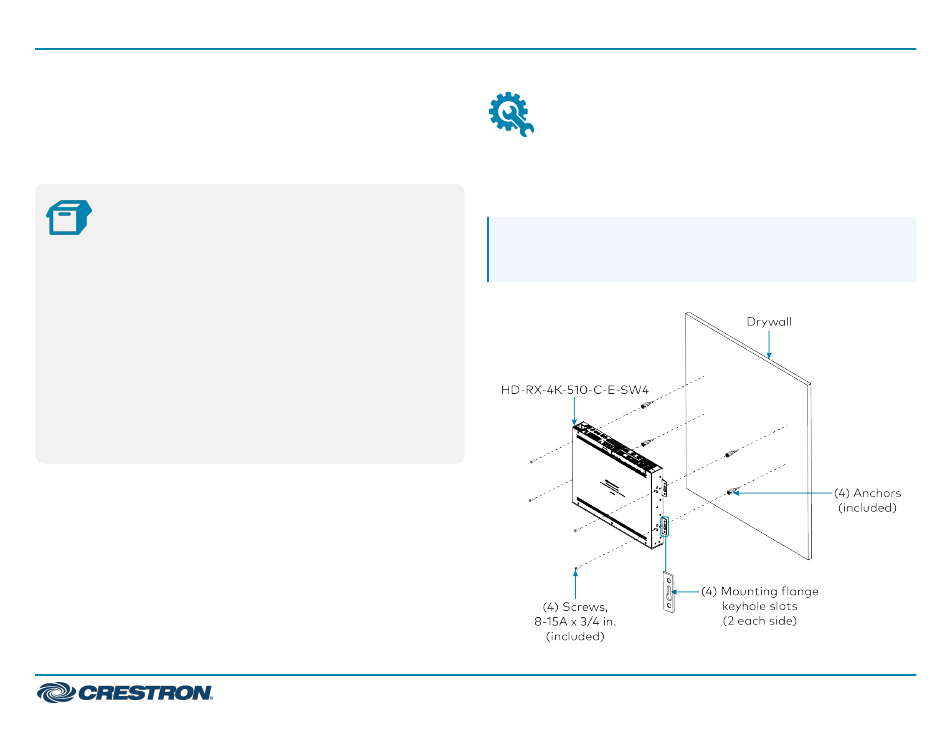

Drywall Mounting (HD-RX-4K-510-C-E-SW4 Shown)
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron HD-RX-4K-510-C-E-SW4
Summary of Contents for Crestron HD-RX-4K-510-C-E-SW4
- Page 1 Quick Start HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 DMPS Lite™ 4K Multiformat AV Switch and Receiver with 4-Port Ethernet Switch The HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 are DMPS Lite™ 4K multiformat AV switches and receivers. The devices Install the Device provide enhanced HDMI® video switching and audio presentation capabilities in areas such as conference rooms and classrooms.
-
Page 2: Connect The Device
Quick Start HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 DMPS Lite™ 4K Multiformat AV Switch and Receiver with 4-Port Ethernet Switch Connect the Device Connect the device as required for the application. Front Panel Connection (HD-RX-4K-510-C-E-SW4 Shown) - Page 3 Quick Start HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 DMPS Lite™ 4K Multiformat AV Switch and Receiver with 4-Port Ethernet Switch Rear Panel Connections (HD-RX-4K-510-C-E-SW4 Shown)
- Page 4 L− Signal return, jumper to GND There are no user-serviceable parts inside this device. If repair of Shield/ground Ground the device is needed, contact an authorized Crestron dealer for R+ In return of the device to the factory. − R−...
-
Page 5: Led Indicators
Quick Start HD-RX-4K-510-C-E-SW4 and HD-RX-4K-410-C-E-SW4 DMPS Lite™ 4K Multiformat AV Switch and Receiver with 4-Port Ethernet Switch AUX OUT 1-2 Connector Pin Assignments LED Indicators The AUX OUT 1 and AUX OUT 2 connectors use 5-pin terminal blocks for Refer to the following table for information about the LED indicators on balanced or unbalanced analog audio outputs. -
Page 6: Configure The Device
DM Lite transmitters. cloud. Supported Crestron® devices are configured to connect to the service out of the box. To access the web interface, open a web browser and then go to the IP address of the HD-RX-4K-510-C-E-SW4 or HD-RX-4K-410-C-E-SW4. - Page 7 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, DM Lite, DMPS Lite, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.
