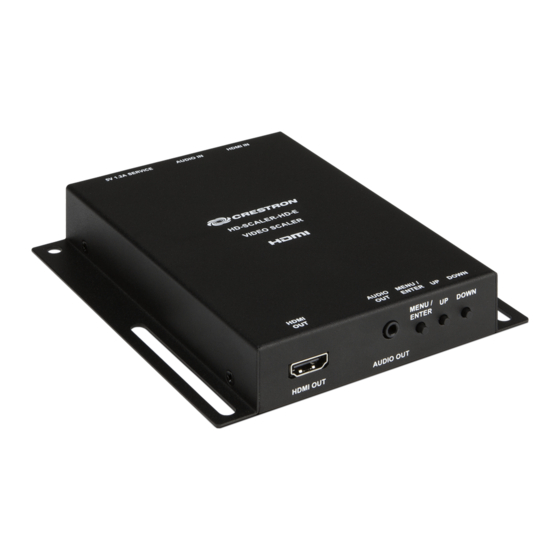

- Page 1 HD-SCALER-HD-E/HD-SCALER-VGA-E High-Definition Video Scalers Supplemental Guide Crestron Electronics, Inc.
- Page 2 Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Contents Introduction OSD Operation Configuration Configuring Picture Settings ..................3 Configuring Output Settings ..................5 Configuring Audio Settings ..................7 Configuring OSD Settings ..................8 Configuring Device Settings ..................9 Restoring Factory Default Settings ............. 9 Configuring EDID Mode ................10 Configuring the Output Timeout ............... -
Page 5: Introduction
(on-screen display). For additional information about the video scalers, refer to the HD-SCALER-HD-E/HD-SCALER-VGA-E DO Guide (Doc. 7778). OSD Operation The HD-SCALER-HD-E and HD-SCALER-VGA-E provide an OSD that appears on the connected output display device. The OSD allows configuration of the video scalers and displays signal status information. - Page 6 EXIT AUTO ADJUST § EXIT** *Applicable only to component video of the HD-SCALER-VGA-E. Also applicable to HDMI video of the HD-SCALER-HD-E Applicable only to RGB video of the HD-SCALER-VGA-E † Applicable only to the audio input of the HD-SCALER-HD-E ‡...
-
Page 7: Configuration
Depending on the video input, the PICTURE submenu may differ from the one shown below. PICTURE Submenu Configure picture settings as desired. Refer to the following table for information about the PICTURE submenu configuration items. HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 3 Supplemental Guide – DOC. 7828C... -
Page 8: Clock* (Applicable Only To Rgb Video Of The Hd-Scaler-Vga-E
The default setting is 50. (Applicable only to component video of the HD-SCALER-VGA-E. Also applicable to HDMI video of the HD-SCALER-HD-E.) Adjusts the pure colors (for example, red, green, and yellow) in the picture without affecting parts of the picture that contain black, white, and gray. -
Page 9: Configuring Output Settings
On the main menu of the OSD, select OUTPUT. The OUTPUT submenu opens. OUTPUT Submenu Configure output settings as desired. Refer to the following table for information about the OUTPUT submenu configuration items. HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 5 Supplemental Guide – DOC. 7828C... - Page 10 The default setting is ASPECT. Exit the OUTPUT submenu by selecting EXIT at the bottom of the submenu. The OSD returns to the main menu. 6 • HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers Supplemental Guide – DOC. 7828C...
-
Page 11: Configuring Audio Settings
40 mS 110 mS 150 mS The default setting is OFF. INPUT (Applicable only to the HD-SCALER-HD-E. For the HD-SCALER-VGA-E, the audio input is always analog.) Available selections are as follows: • HDMI: Sets the audio to HDMI (digital) •... -
Page 12: Configuring Osd Settings
OFF: Prevents the information from being displayed The default setting is INFO. Exit the OSD submenu by selecting EXIT at the bottom of the submenu. The OSD returns to the main menu. 8 • HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers Supplemental Guide – DOC. 7828C... -
Page 13: Configuring Device Settings
DEVICE Submenu Select RESTORE. The DEVICE submenu appears as shown below. DEVICE Submenu with RESTORE Selected To restore factory default settings, select YES. The factory default settings are restored. HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 9 Supplemental Guide – DOC. 7828C... -
Page 14: Configuring Edid Mode
Configuring EDID Mode EDID mode controls whether the predefined Crestron EDID or the EDID of the output display device is sent to the input device. To configure EDID mode, do the following: On the main menu of the OSD, select DEVICE. -
Page 15: Configuring The Output Timeout
HDMI and AUDIO outputs turn off. Available selections range from 1 to 120 minutes. A sample screen showing the selection of 60 minutes is shown below. OUTPUT TIMEOUT Set to 60 Minutes HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 11 Supplemental Guide – DOC. 7828C... -
Page 16: Auto Adjusting Rgb Video Settings (Hd-Scaler-Vga-E Only)
The video scaler automatically adjusts the PHASE, CLOCK, H-POSITION, and V-POSITION settings. NOTE: If additional adjustment of the settings is desired, manually adjust the settings using the PICTURE submenu. 12 • HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers Supplemental Guide – DOC. 7828C... -
Page 17: Device Information
DEVICE Submenu Select DETAILS. The serial number and firmware version of the video scaler are displayed as shown in the example below. Sample Display of Serial Number and Firmware Version HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 13 Supplemental Guide – DOC. 7828C... -
Page 18: Viewing Input Signal Information
Select INPUT. DEVICE Submenu with INPUT Highlighted Once INPUT is selected, status information specific to the input signal is displayed as shown in the example below. Sample Input Signal Information 14 • HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers Supplemental Guide – DOC. 7828C... -
Page 19: Viewing Output Signal Information
Select OUTPUT. DEVICE Submenu with OUTPUT Highlighted Once OUTPUT is selected, status information specific to the output signal is displayed as shown in the example below. Sample Output Signal Information HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 15 Supplemental Guide – DOC. 7828C... -
Page 20: Firmware Upgrade
Firmware Upgrade The latest firmware file can be downloaded from the Crestron website after logging in to the website as an authorized user. The firmware file is a .BIN file, which is included in a .zip file. The .zip file also includes a .PDF file, which provides product release notes. - Page 21 This page is intentionally left blank. HD-SCALER-HD-E/HD-SCALER-VGA-E: HD Video Scalers • 17 Supplemental Guide – DOC. 7828C...
- Page 22 Crestron Electronics, Inc. Supplemental Guide – DOC. 7828C 15 Volvo Drive Rockleigh, NJ 07647 (2045131) Tel: 888.CRESTRON 01.17 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
