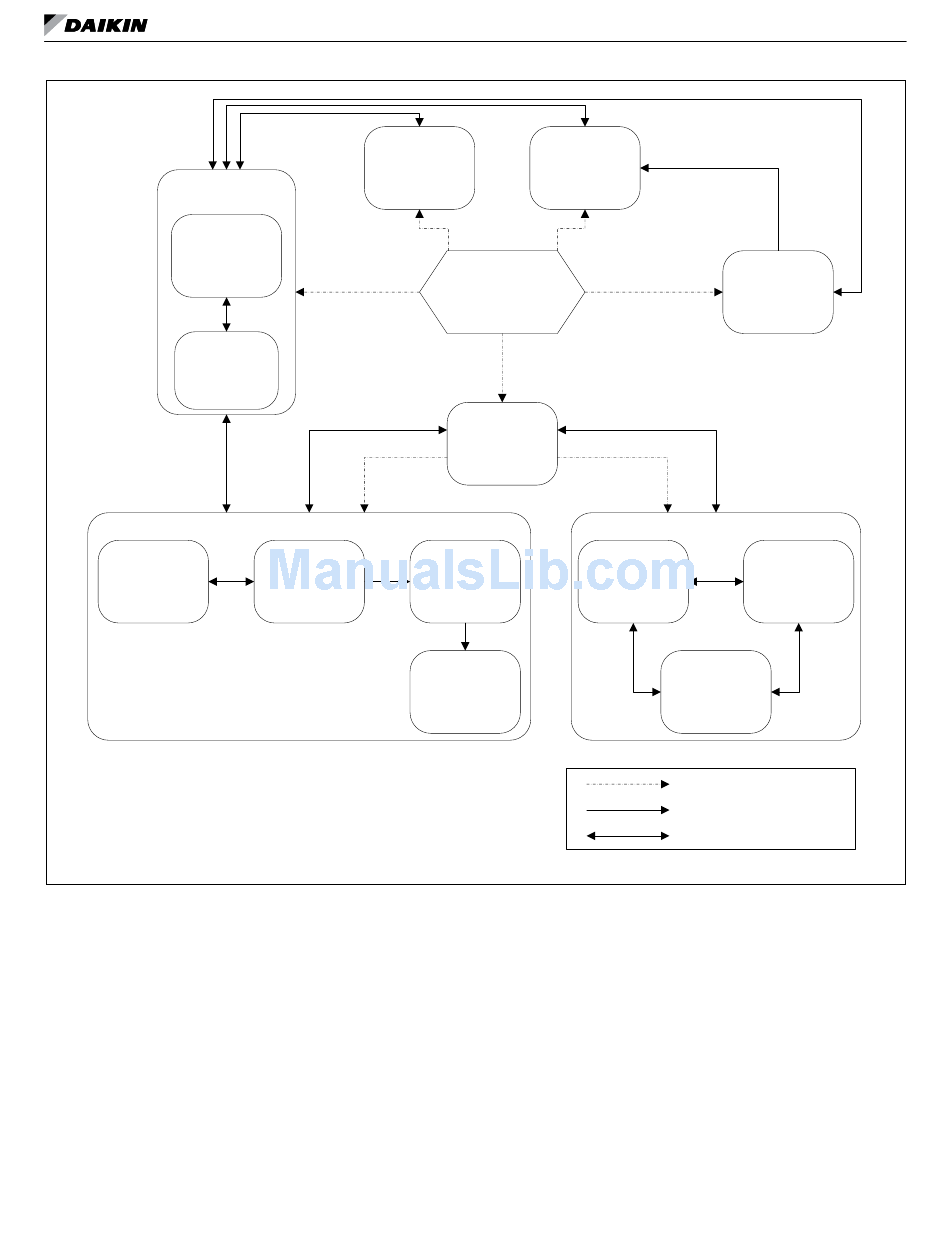

Figure 6: Complete UVC—state diagram
EMERGENCY HEAT
Mode
FULL HEAT
Mode
(State 7)
CANT HEAT
Mode
(State 13)
CANT COOL
Mode
(State 12)
OM 752-4
OFF
Mode
(State 9)
COOL Mode
ECON
DA HEAT
Mode
(State 3)
(State 4)
LOW LIMIT
(State 15)
UVC Unit Modes
The UVC provides several "normal" modes of unit operation. These include: Off, Night
Purge, Fan Only, Emergency Heat, Auto, Heat, and Cool.
Normal UVC modes can contain a single state or several states depending upon the
functionality required for each particular mode. Each UVC state is assigned a number,
which can be very helpful when trying to understand which state is currently active
within the UVC. To view the current UVC state number, use the keypad/display.
FAN ONLY
Mode
(State 10)
LUI Input
Network Input
AUTO
Mode
HEAT
Mode
Mode
(State 5)
Mode
14
d
o
esCrIptIon of
peratIon
NIGHT PURGE
Mode
(State 8)
HEAT Mode
LOW LIMIT
Mode
(State 14)
CANT HEAT
Mode
(State 11)
Manual/Forced Transition
One-way Automatic Transition
Two-way Automatic Transition
