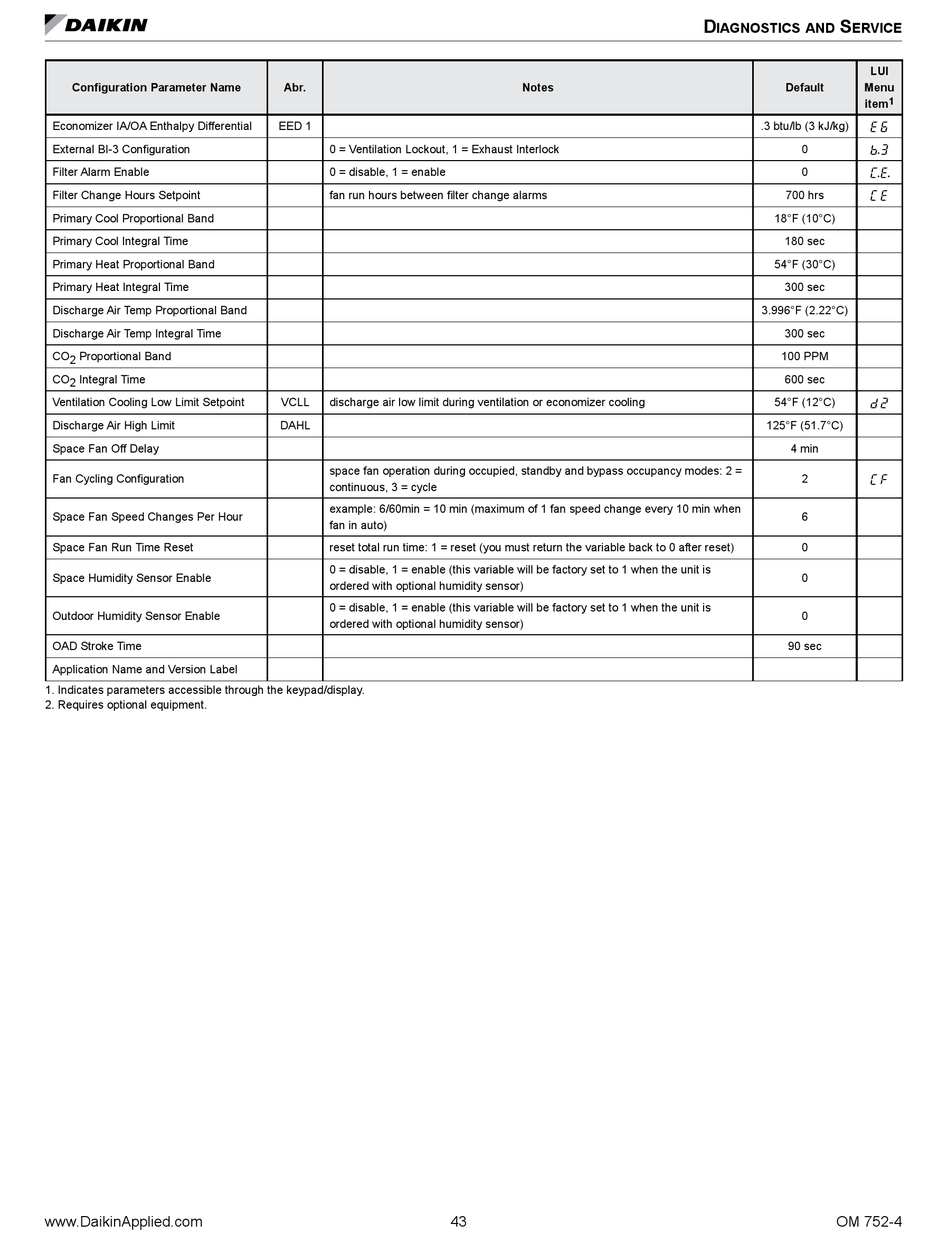

Daikin MicroTech II Operation And Maintenance Manual page 43

Used with daikin classroom unit ventilator model avv - floor-mounted, model ahv - ceiling-mounted
Table of Contents

Advertisement

Configuration Parameter Name
Economizer IA/OA Enthalpy Differential
External BI-3 Configuration
Filter Alarm Enable
Filter Change Hours Setpoint
Primary Cool Proportional Band
Primary Cool Integral Time
Primary Heat Proportional Band
Primary Heat Integral Time
Discharge Air Temp Proportional Band
Discharge Air Temp Integral Time
CO 2 Proportional Band
CO 2 Integral Time
Ventilation Cooling Low Limit Setpoint
Discharge Air High Limit
Space Fan Off Delay
Fan Cycling Configuration
Space Fan Speed Changes Per Hour
Space Fan Run Time Reset
Space Humidity Sensor Enable
Outdoor Humidity Sensor Enable
OAD Stroke Time
Application Name and Version Label
1. Indicates parameters accessible through the keypad/display.
2. Requires optional equipment.
www.DaikinApplied.com
Abr.
EED 1
0 = Ventilation Lockout, 1 = Exhaust Interlock
0 = disable, 1 = enable
fan run hours between filter change alarms
VCLL
discharge air low limit during ventilation or economizer cooling
DAHL
space fan operation during occupied, standby and bypass occupancy modes: 2 =
continuous, 3 = cycle
example: 6/60min = 10 min (maximum of 1 fan speed change every 10 min when
fan in auto)
reset total run time: 1 = reset (you must return the variable back to 0 after reset)
0 = disable, 1 = enable (this variable will be factory set to 1 when the unit is
ordered with optional humidity sensor)
0 = disable, 1 = enable (this variable will be factory set to 1 when the unit is
ordered with optional humidity sensor)
43
Notes
d
s
IaGnostICs and
erVICe
LUI
Default
Menu
item
.3 btu/lb (3 kJ/kg)
e6
0
B3
0
CE
700 hrs
ce
18°F (10°C)
180 sec
54°F (30°C)
300 sec
3.996°F (2.22°C)
300 sec
100 PPM
600 sec
54°F (12°C)
d2
125°F (51.7°C)
4 min
2
cf
6
0
0
0
90 sec
OM 752-4
1
