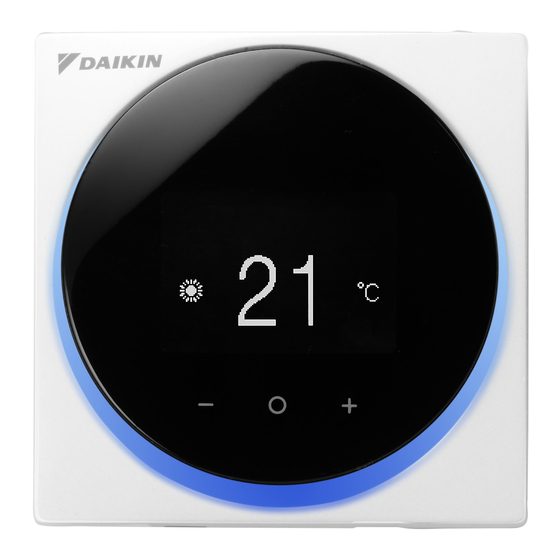

Daikin Madoka Installation And Operation Manual
Wired
Hide thumbs
Also See for Madoka:
- User manual (2 pages) ,
- Installation and operation manual (12 pages) ,
- Installer and user manual (96 pages)
Subscribe to Our Youtube Channel
Related Manuals for Daikin Madoka
Summary of Contents for Daikin Madoka
- Page 1 Installation and operation manual Madoka wired remote controller BRC1H52W Installation and operation manual BRC1H52K English Madoka wired remote controller BRC1H52S...
-
Page 2: General Safety Precautions
Possible consequence: damage, electric 11.3 Time to clean filter indication............. 10 shock, or fire. 11.3.1 To remove the Time to clean filter indication ....10 Installation and operation manual BRC1H52W+K+S Madoka wired remote controller 4P596264-1 – 2019.11... -
Page 3: About This Document
Technical engineering data ▪ A subset of the latest technical data is available on the regional Daikin website (publicly accessible). ▪ The full set of latest technical data is available on the Daikin Business Portal (authentication required). BRC1H52W+K+S Installation and operation manual Madoka wired remote controller 4P596264-1 –... -
Page 4: For The User
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and use of such marks by Daikin Europe N.V. is under license. Other trademarks and trade names are those of their respective owners. -
Page 5: Status Indicator
To make the screen light up again, press one of mode" [ 4 7] respectively. "4.6.1 Ventilation the buttons. ▪ Most icons are related to things set in the Madoka Assistant app. For more information, see the app, and 4.1.2 Main menu the installer and user reference guide. -
Page 6: Operation Mode
▪ The controller only allows for basic operation of the system. For advanced operation (setback, schedule Prerequisite: The active operation mode is either 'Cooling', timer, …), see the Madoka Assistant app. 'Heating', or 'Auto'. 1 In the home screen, use to adjust the setpoint. -
Page 7: Advanced Usage
Advanced usage The heat reclaim ventilation unit can operate in various operation The controller only allows for basic operation. For advanced modes. operation, use the Madoka Assistant app. BRC1H52W+K+S Installation and operation manual Madoka wired remote controller 4P596264-1 – 2019.11... -
Page 8: Maintenance And Service
In “Supervisor” mode, it is mandatory to set a unique “supervised room address” for every indoor unit. The “supervised room Maintenance and service address” can be set in the Madoka Assistant app. 1234 Overview: Maintenance and CH-02... -
Page 9: Installation
9.1.1 To mount the controller 1 Take the screws and plugs from the accessory bag. 2 Mount the rear casing to a flat surface. From the rear P1P2 BRC1H52W+K+S Installation and operation manual Madoka wired remote controller 4P596264-1 – 2019.11... -
Page 10: Maintenance
The controller gets its power from the indoor unit. It will start up as soon as it is connected. For the controller to be operable, therefore make sure the indoor unit is powered on. Installation and operation manual BRC1H52W+K+S Madoka wired remote controller 4P596264-1 – 2019.11... - Page 12 4P596264-1 0000000U 4P596264-1 2019.11 Verantwortung für Energie und Umwelt...
